YEAR: 1960
-Ruesch Model Number: 76
-Type Slitter: Pull Through Finger Set Up
-Line Direction: Right to Left
Material:
Type: Beryllium Copper, High Carbon and Stainless Steel
Width: 2″ to 12″ (50mm – 305mm)
Thickness:
-Per Original Specs: 0.001″ – 0.020″ (0.025mm) – 0.508mm)
-As Used: 0.003″ – 0.025″ (0.076mm – 0.625mm)
No. of Cuts (approx.):
0.003″ – 11 Cuts
0.025″ – 9 Cuts
Coil Size:
Minimum I.D.: 6″ (152mm)
Maximum O.D.: 16″ (406mm) Approx.
Max. Coil Weight:
-Per Original Specs: 600 lbs. (270 KG)
-As Used: 1,000 lbs. (450 KG)
Consisting of the following:
-Note: Payoff to be supplied by the purchaser

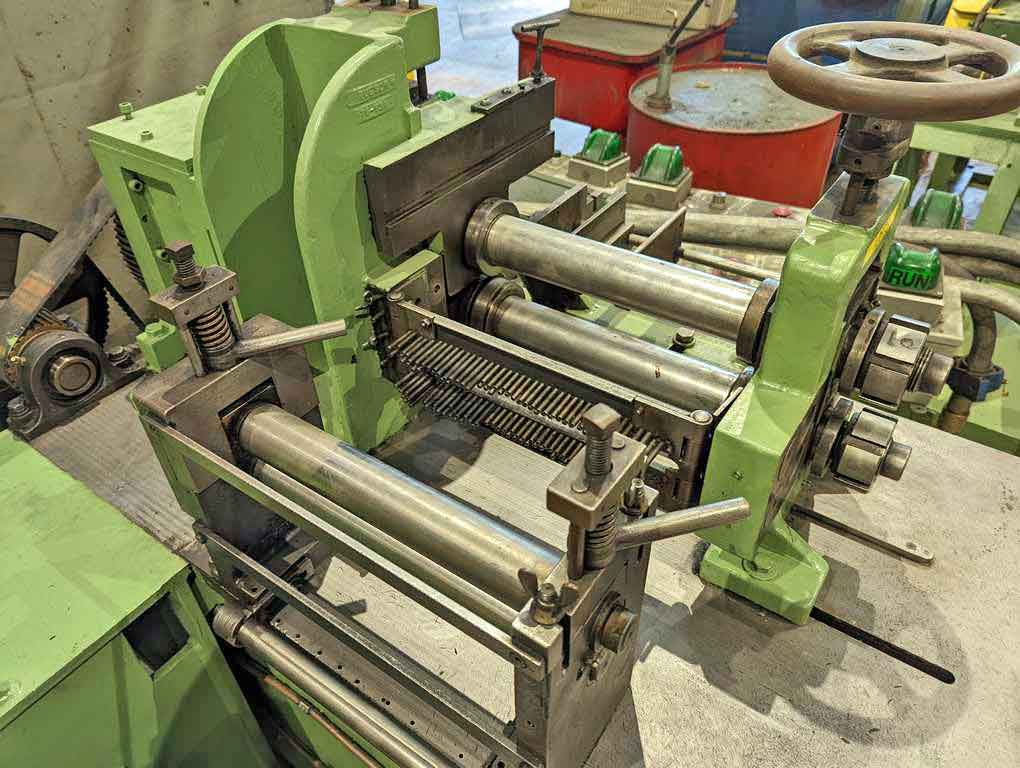

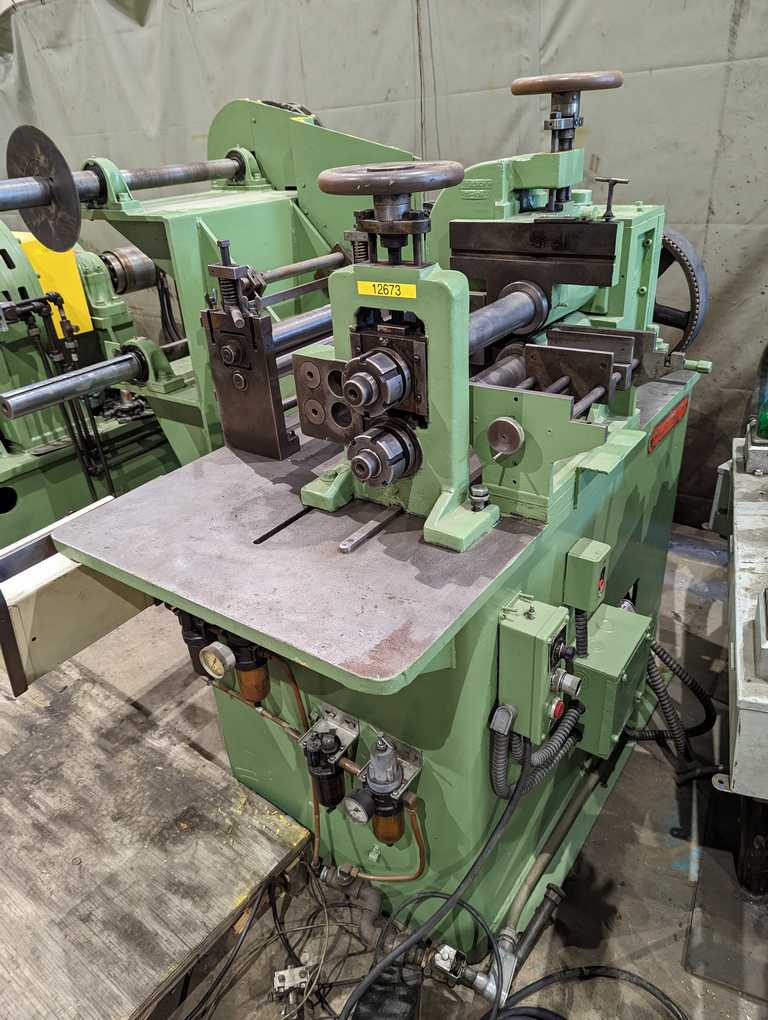

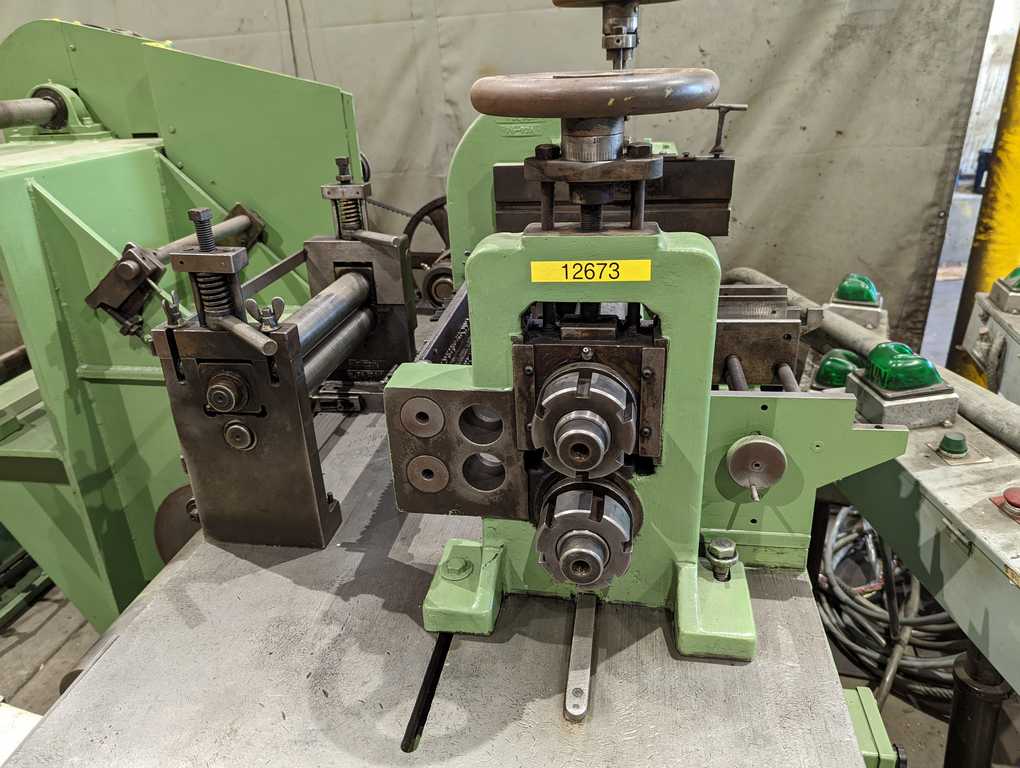

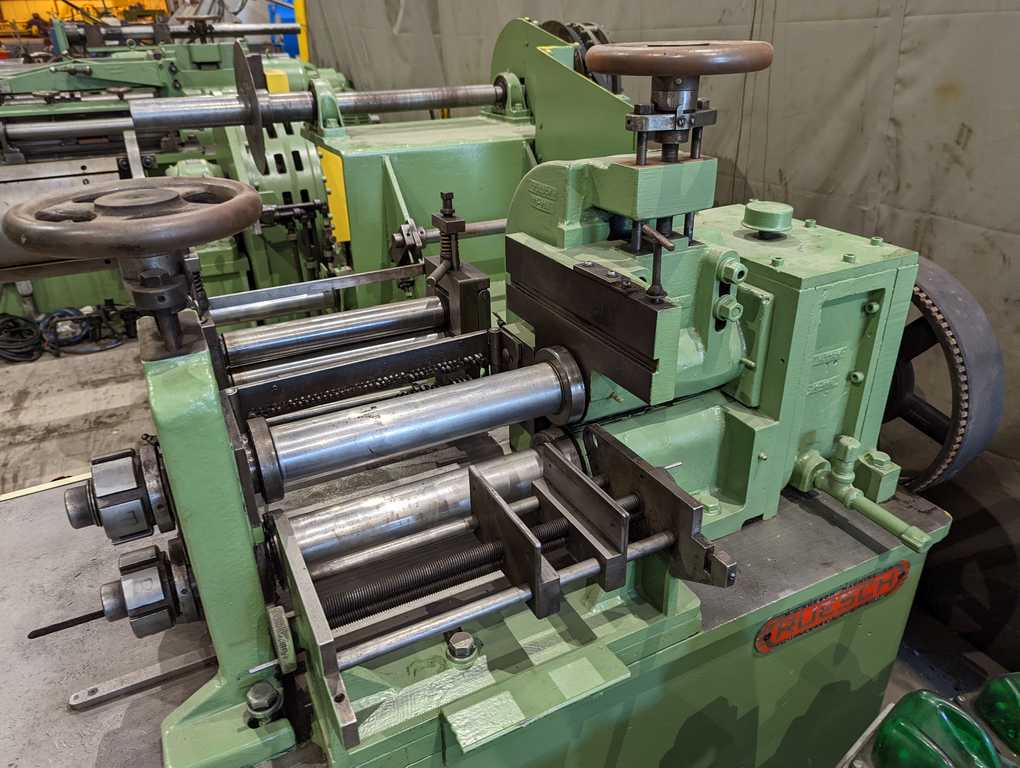

-Slitter Head:
Arbor Size: 2.50″ (63.5mm) Dia. x 13″ (330mm) Face Width
Knife Diameter: 5.50″ (140mm) Max.
Spacer Diameter: 3.750″ (94mm)
Slitting Speed: 0 – 250 FPM (0 – 76M/Min.)
Number of Cuts: 15 in 0.020″ (0.050mm) Thick Material @ 250 FPM (76M/Min.)
Maximum Stock Width: 12″ (305mm)
Floor to Tip of Cutters: 38″ (965mm) Approx.
Entry Side Guides: Manual Adjustment
Slitter Housing: Ruesch 76-93A
Dual Handwheel Adjust
Wooden Fingers
Finger Stabilizer: Screw Type
Digital Counter: Red Lion
Drive Motor: 7.50 HP, 1745 RPM, 440 V., 3 PH, 60 HZ, Variable Speed
With Eaton Dynamatic Adjustospeed Drive
Exit Pinch Rolls: 2″ (50mm) Dia. x 13″ (330mm) Width
-Scrap Winder:
Drum Diameter: 5.50″ (140mm)
Drum Width: 14.50″ (368mm)
Driven from Main Drive

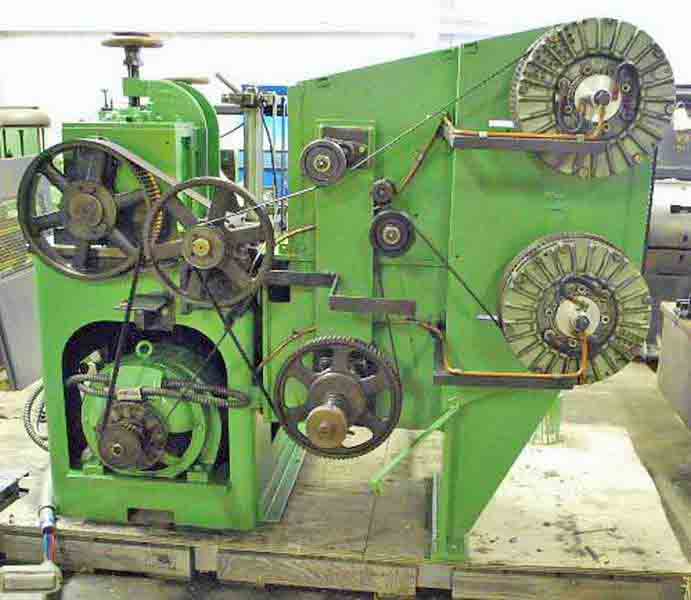

-Recoiler:
Quantity: 2
Shaft Diameter: 2.875″ (71.12mm)
Shaft Width: 16″ (406mm)
Chain Driven from Main Drive

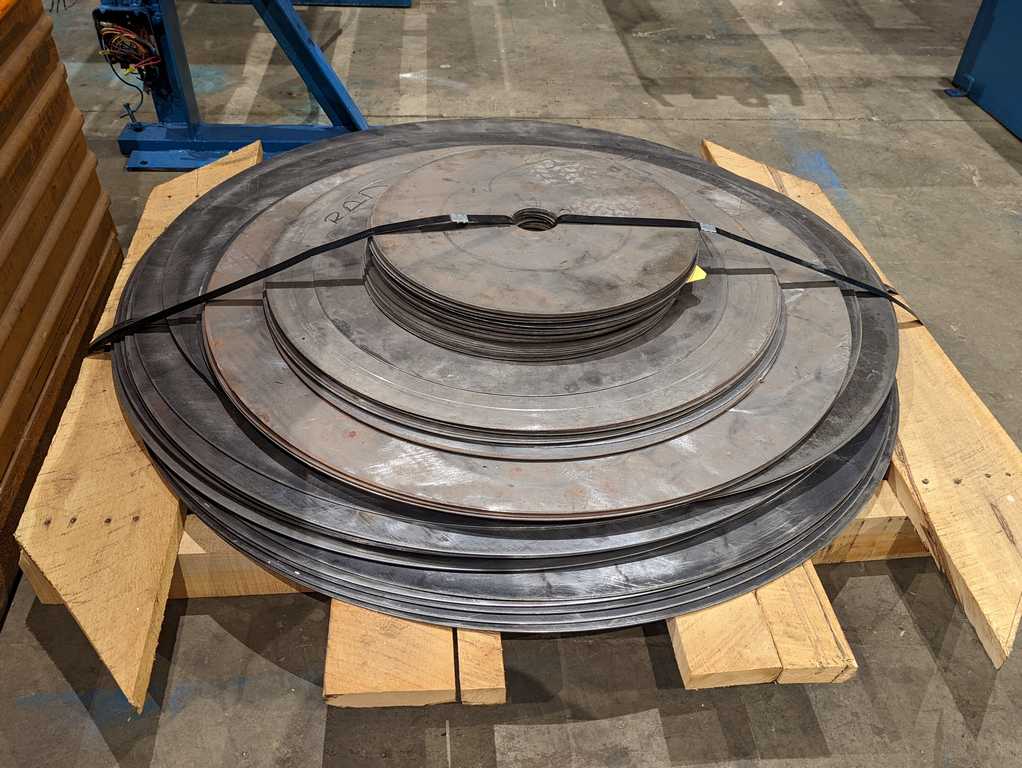

Uses Separator Disks
-Overall Size: 77″ L x 73″ W x 59″ High
-Approx. Weight of Machine: 2,200 lbs. (1000 KG)
-Large Quantity of Tooling Available
