Ruesch Precision Slitting Line
Model 149 Integral Slitter – Recoiler Assembly
Completely Reconditioned in 2021
Capacity: 14″ x 0.005″ – 0.060″
Line Direction: Right to Left
Consisting of:

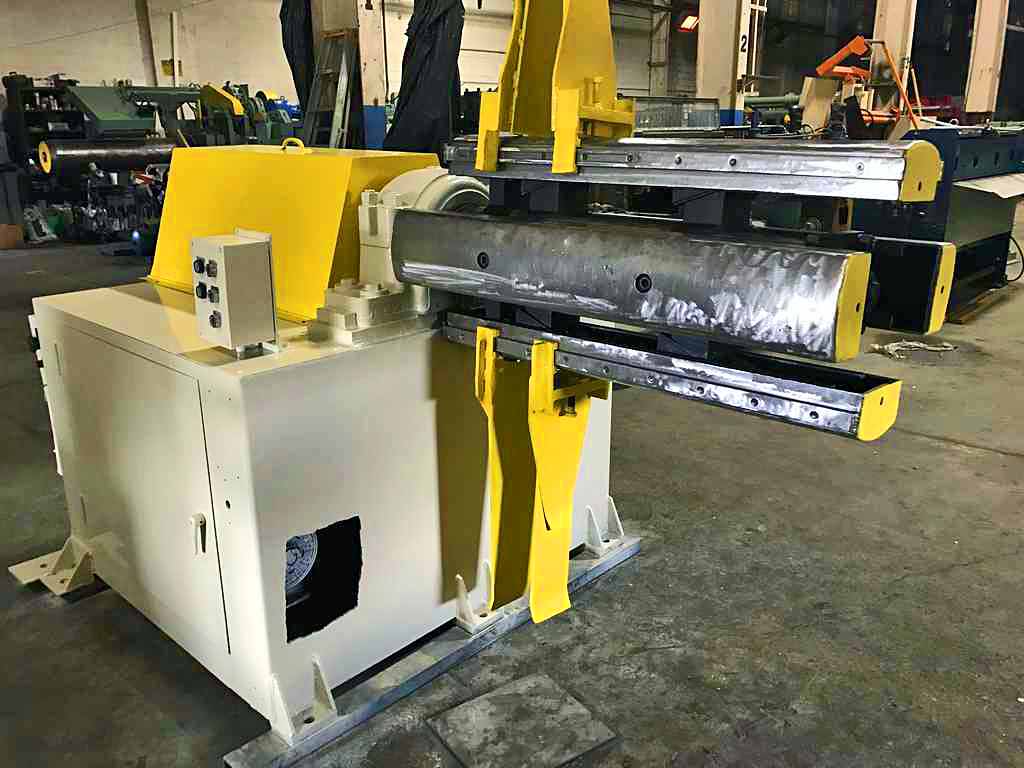

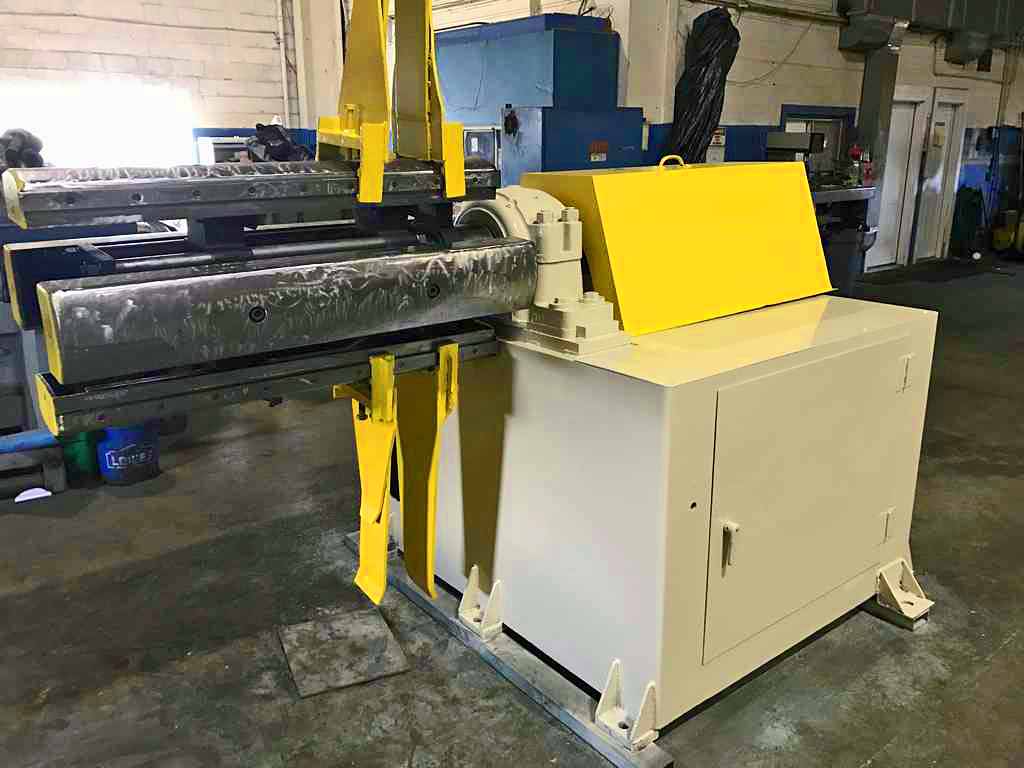

-Uncoiler: Rowe
Model 16040-DS/L
Capacity: 16,000# x 40″
20″ – 24″ Coil I.D. Range
Powered Expansion
1.5 HP AC Motor
4 Segment Mandrel
60″ O.D. Capacity
Driven for Loop Control
3 HP AC Motor
Electric Clutch
Less Loop Arm
Includes 4 Keepers
Overall Size: 108″ L x 82″ W x 61″ High
Approx. Weight: 6,000 Lbs.

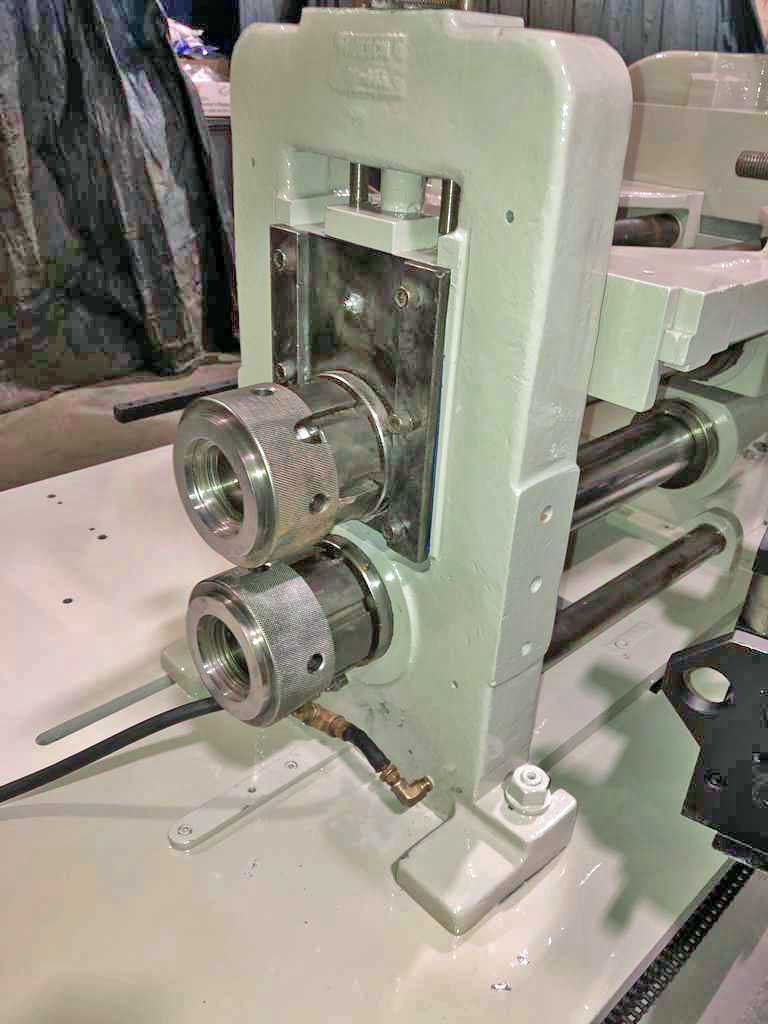

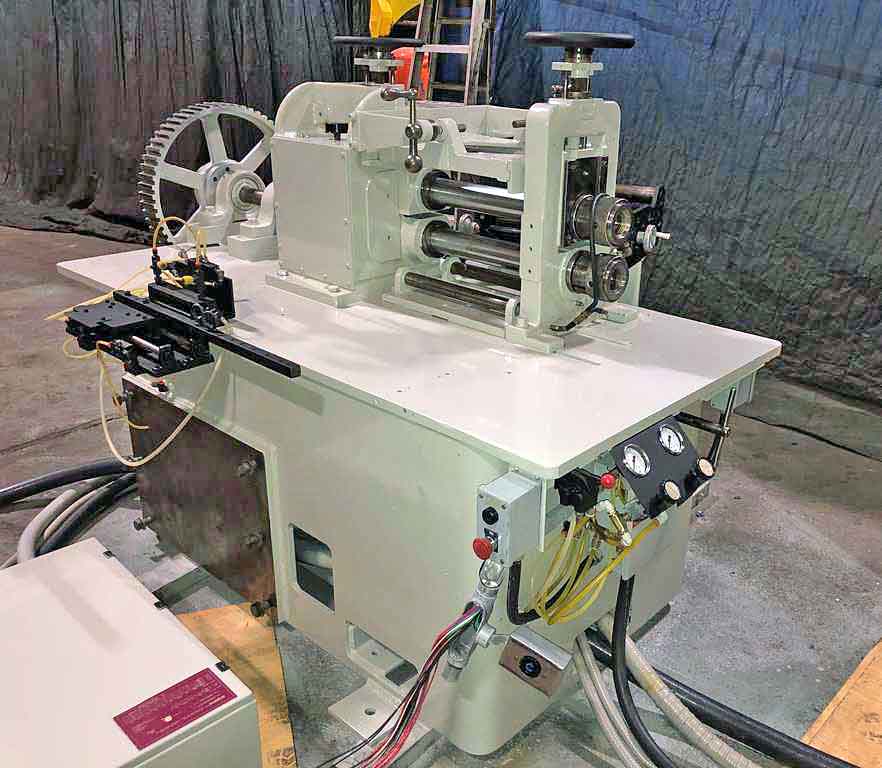

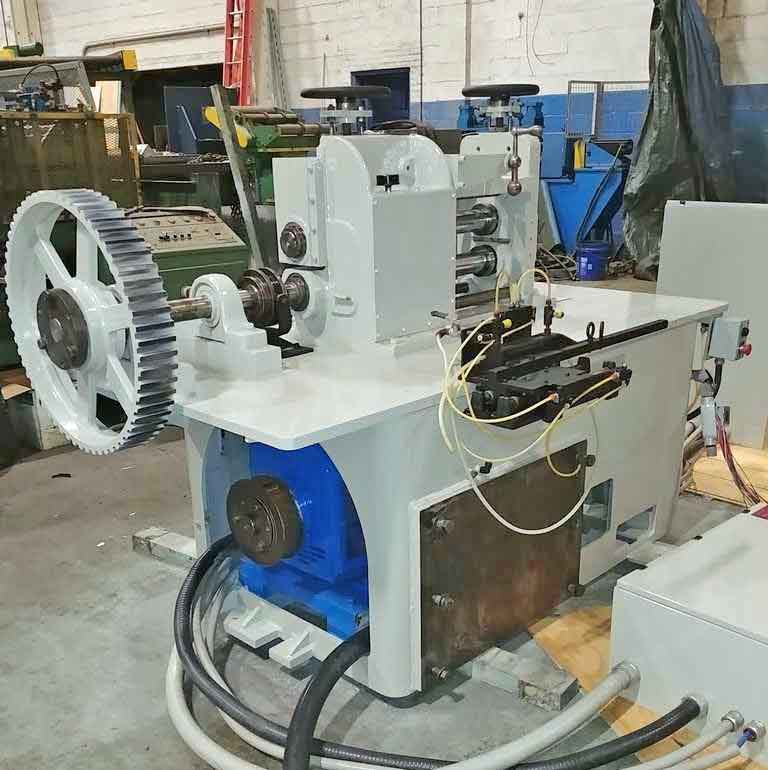

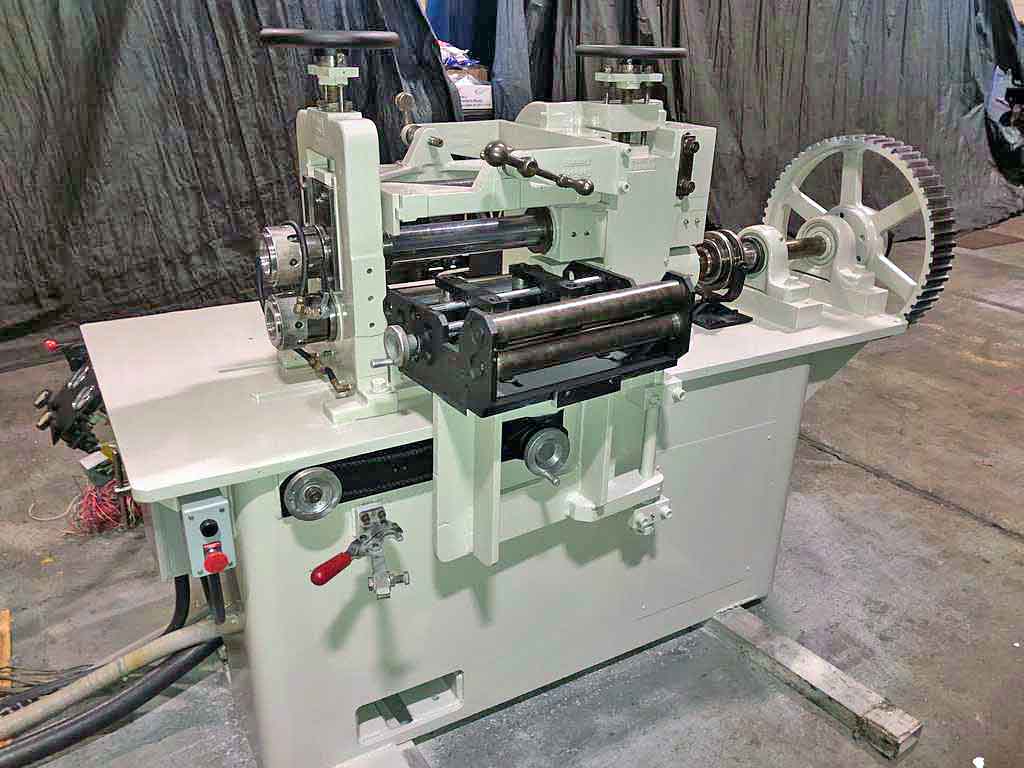

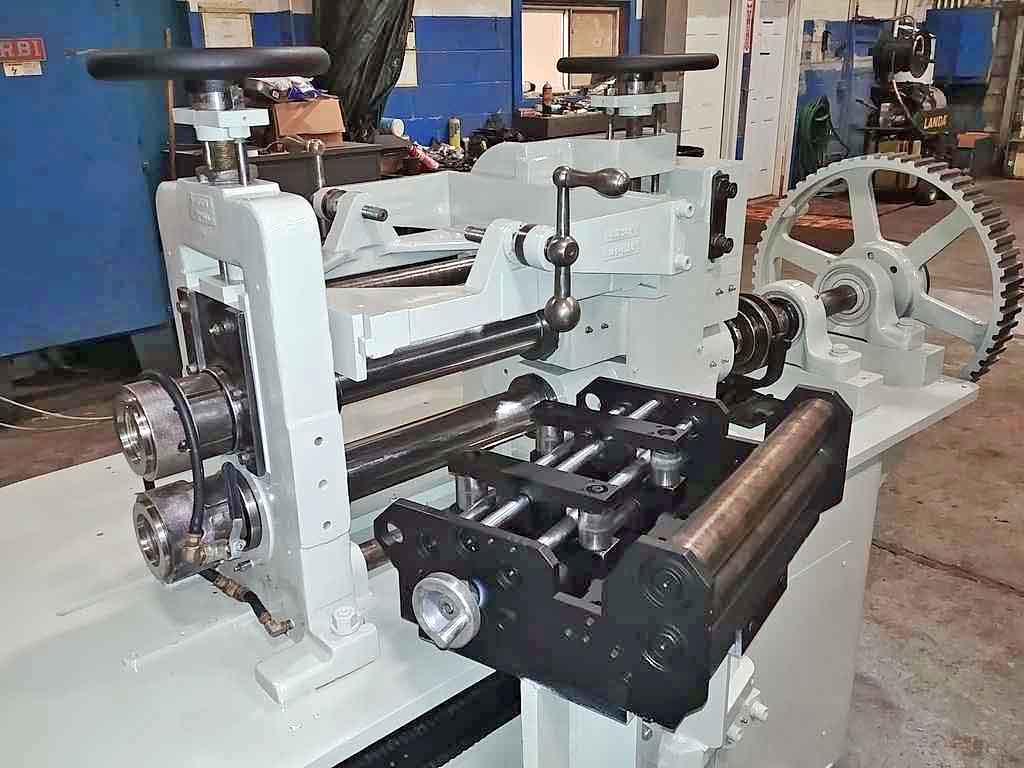

-Slitter Head:
N 2535
2.875″ Dia. x 14.5″ Face Arbors W/Jet Nuts
Entry Passline Roll

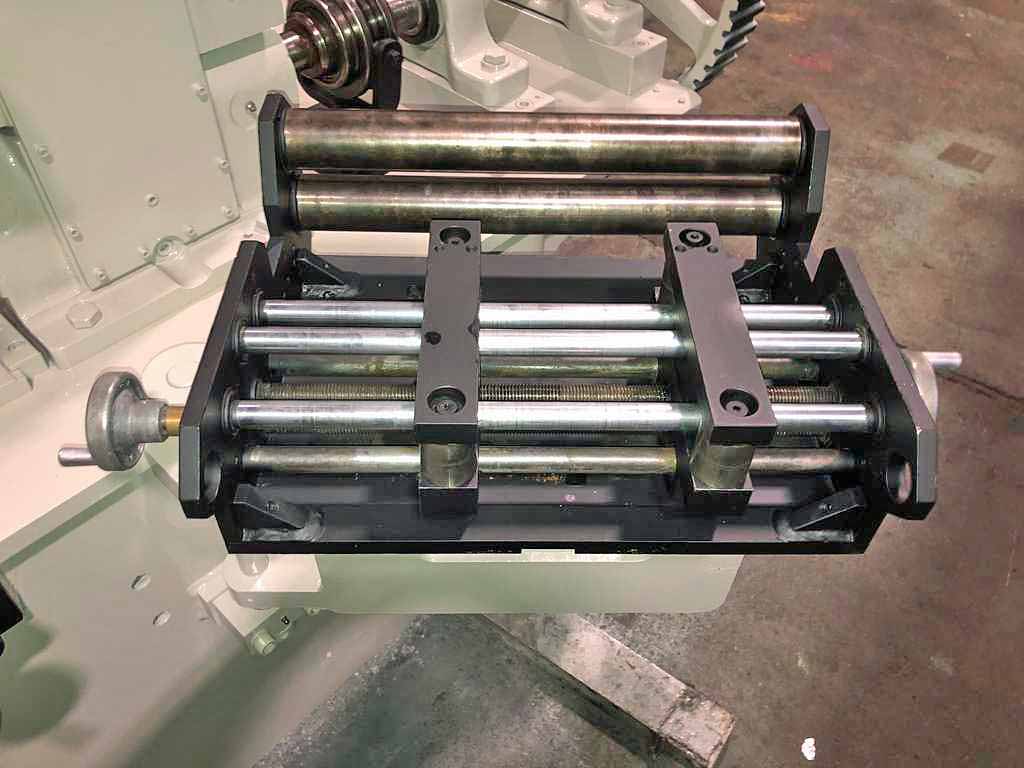

Entry Side Guides, Manual Adjustment
Steel Stripper Ring Assembly
Exit Scrap Guides, Air Cylinder Operated
30 HP DC Motor, 230 V
ABB DCS-400 SCR Control – New in 2003
Common Drive with Recoiler
Overall Size: 86″ L x 55″ W x 59″ High
-Scrap Winder:
AC Drive Motor
Wichita Clutch

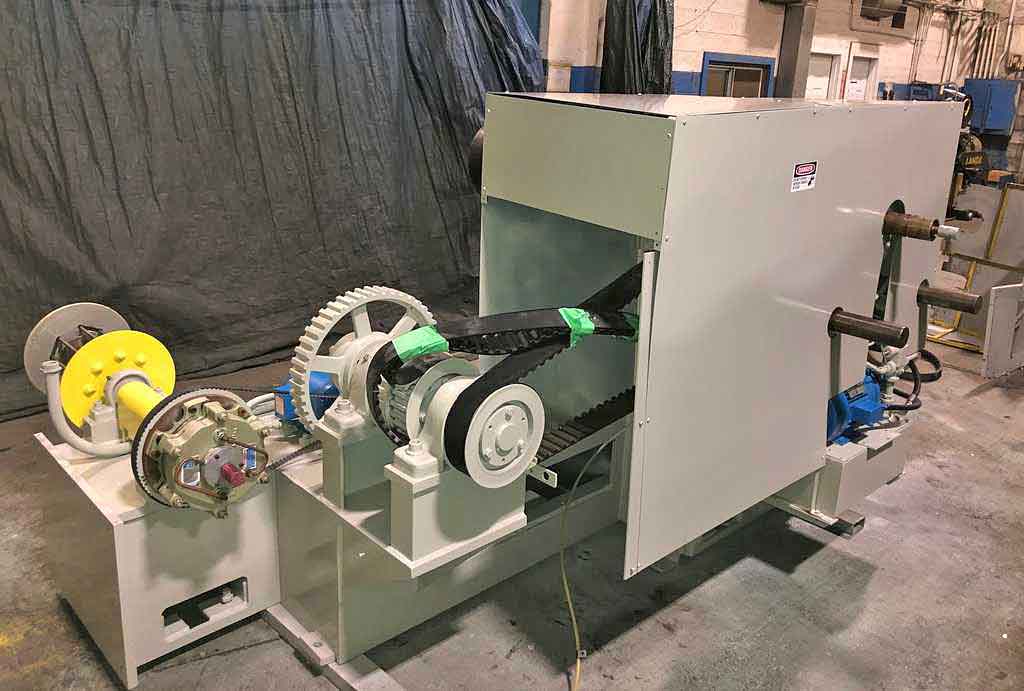

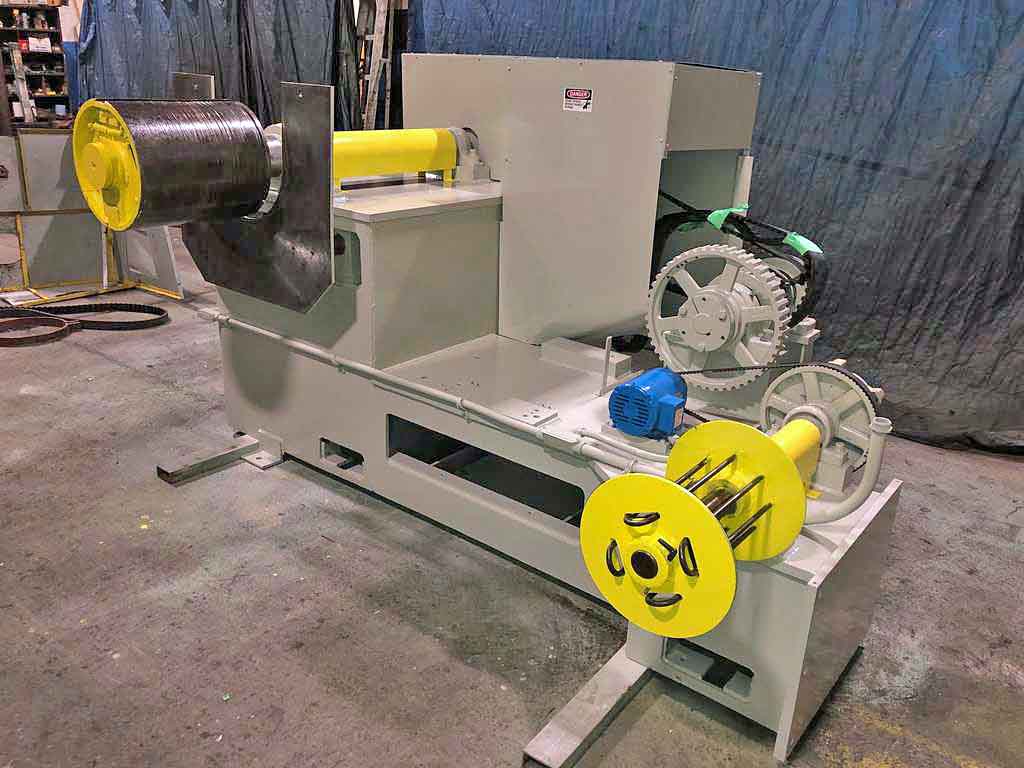

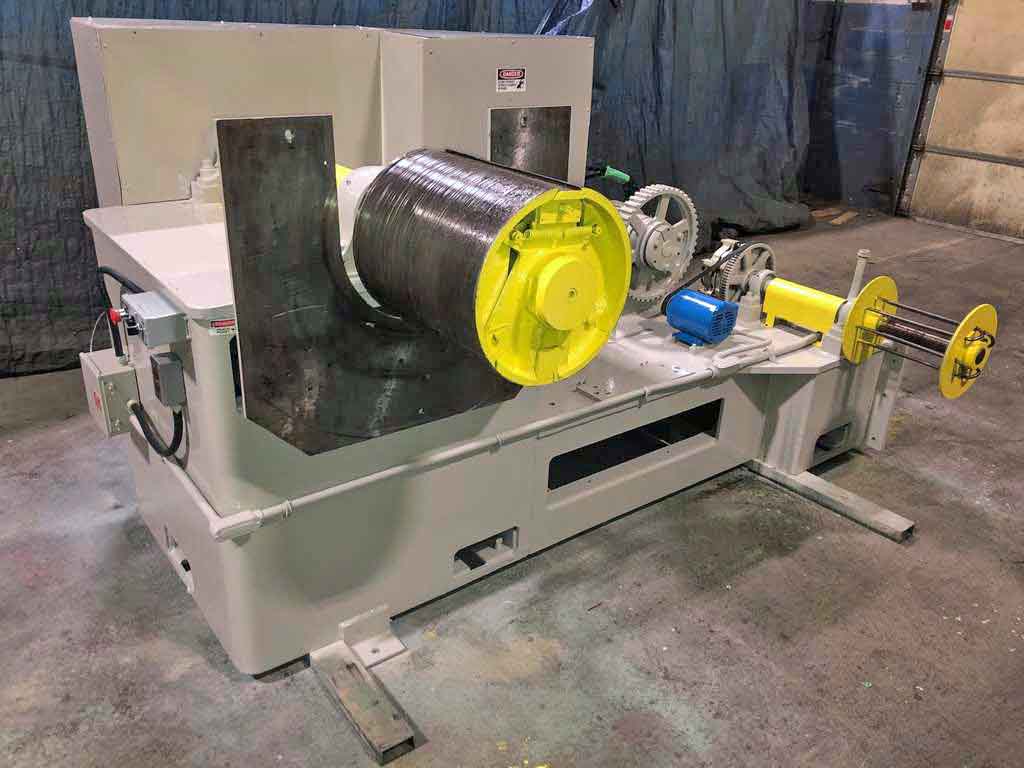

-Recoiler:

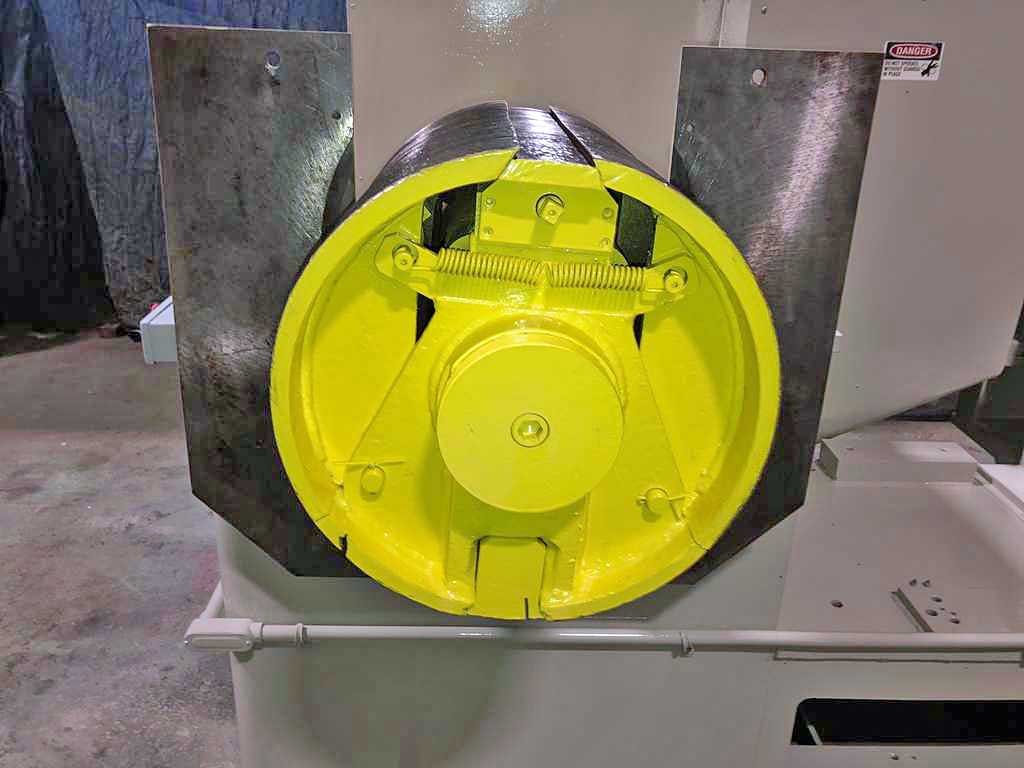

16″ Dia. x 18″ Face Drum
Manual Expansion
Material Slot
Hydraulic Pushoff
Wichita Water Cooled Brake
Passline: 49.5″ from Floor to Center of Drum
(Common Drive from Slitter Head)
Self-Contained Hydraulic Power Unit
3 HP AC Motor, 230/460 V
Overall Size: 118″ L x 88″ W x 66″ High
-Overarm Separator: New in 2021

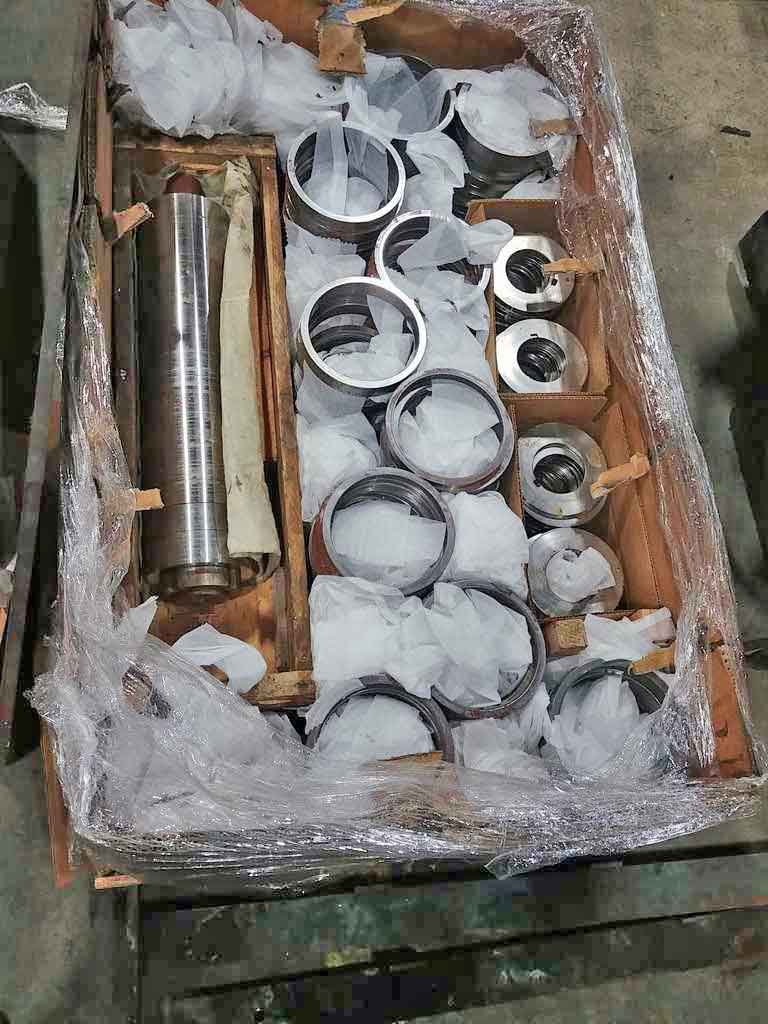

-Tooling Included:
Knife count (Approximate):
-0.500″ x 5.337 od.: 11
-0.245″ x 5.685 od.: 3
-0.198″ x 5.723 od.: 32
-0.185″ x 5.636 od.: 6
-0.124″ x 5.493 od.: 10
-0.124″ x 5.285 od.: 5
Spacers (Approximate):
-3.000″: 2
-2.000″: 4
-1.000″: 6
-0.500″: 9
-0.375″: 6
-0.310″: 7
-0.250″: 7
-0.187″: 5
-0.125″: 8
-0.091″: 8
-0.031″: 10
Steel Stripper Rings (Approximate):
-1.000″: 13
-0.500″: 23
-0.375″: 12
-0.323″: 16
-0.250″: 22
-0.217″: 6
-0.185″: 7
-0.125″: 28
-0.090″: 12
-0.062″: 19
-0.030″: 14

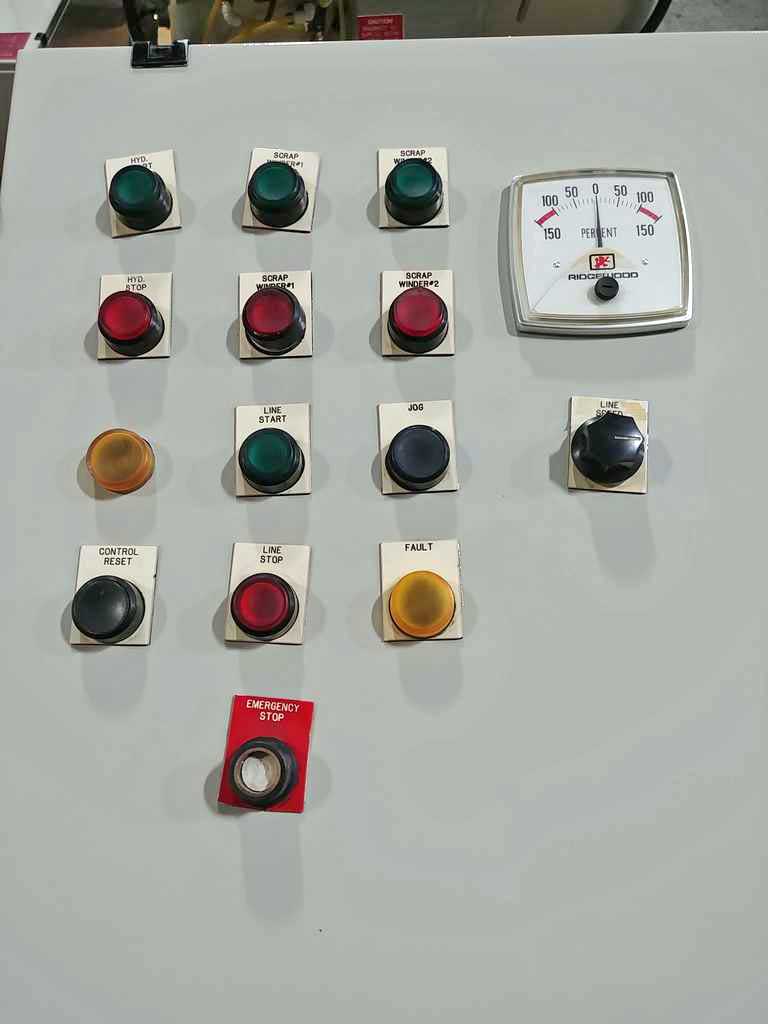

-Main Operators Panel: New in 2003
