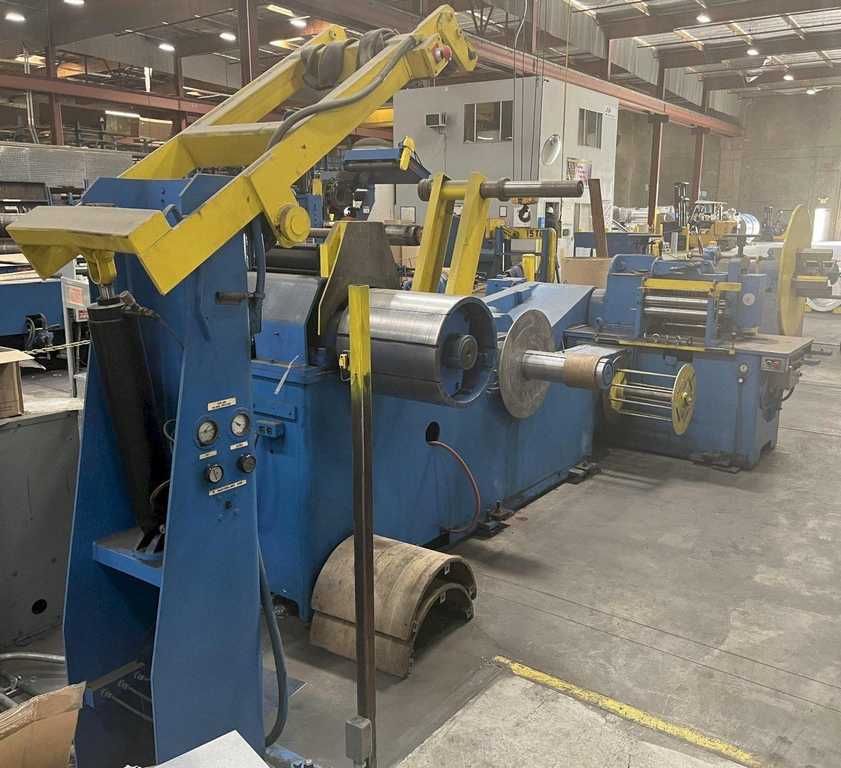

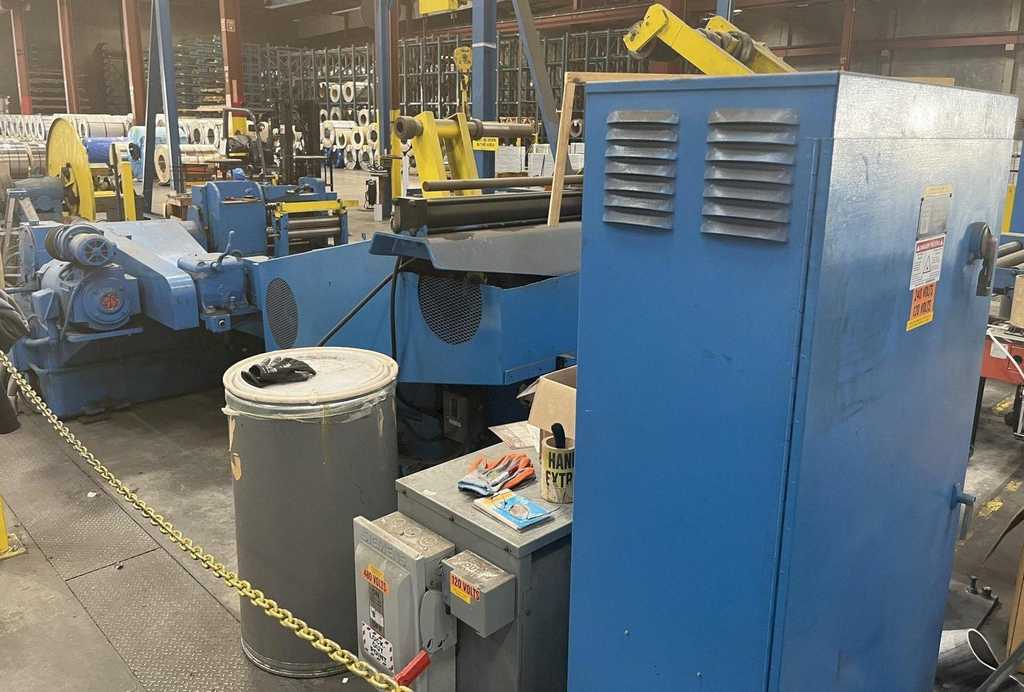

18″ Ruesch Slitting Line
-Line Direction: Left to Right
-Main Motor: 30 HP DC
-DC Drive: Variable Speed
Consisting of the following:

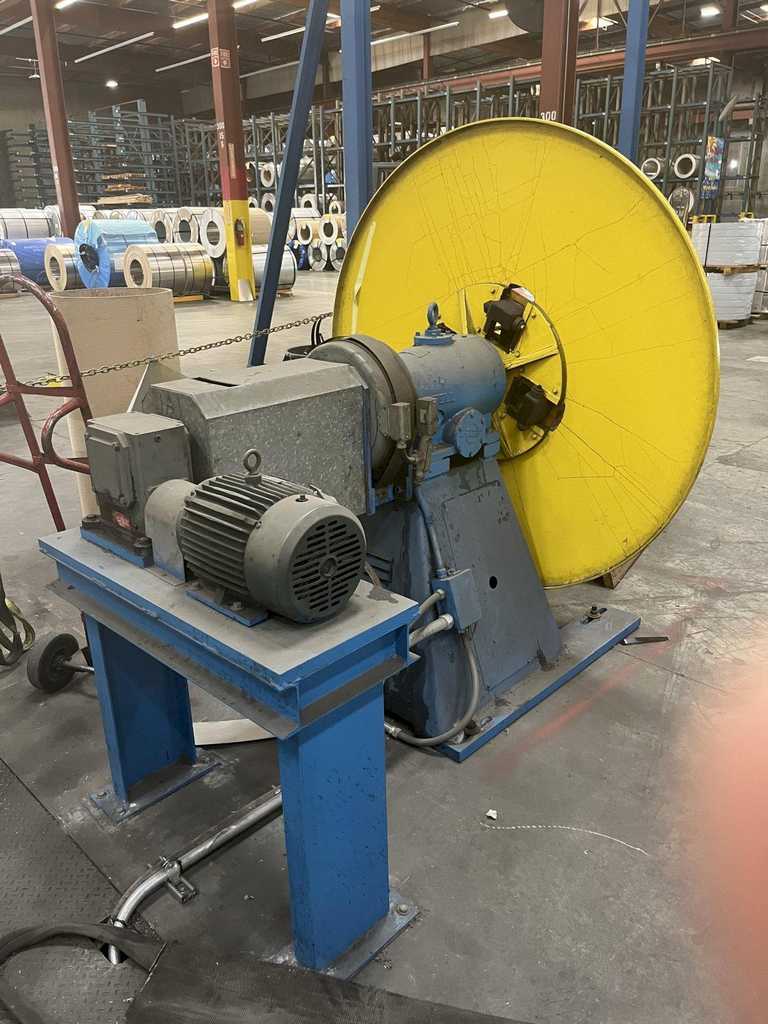

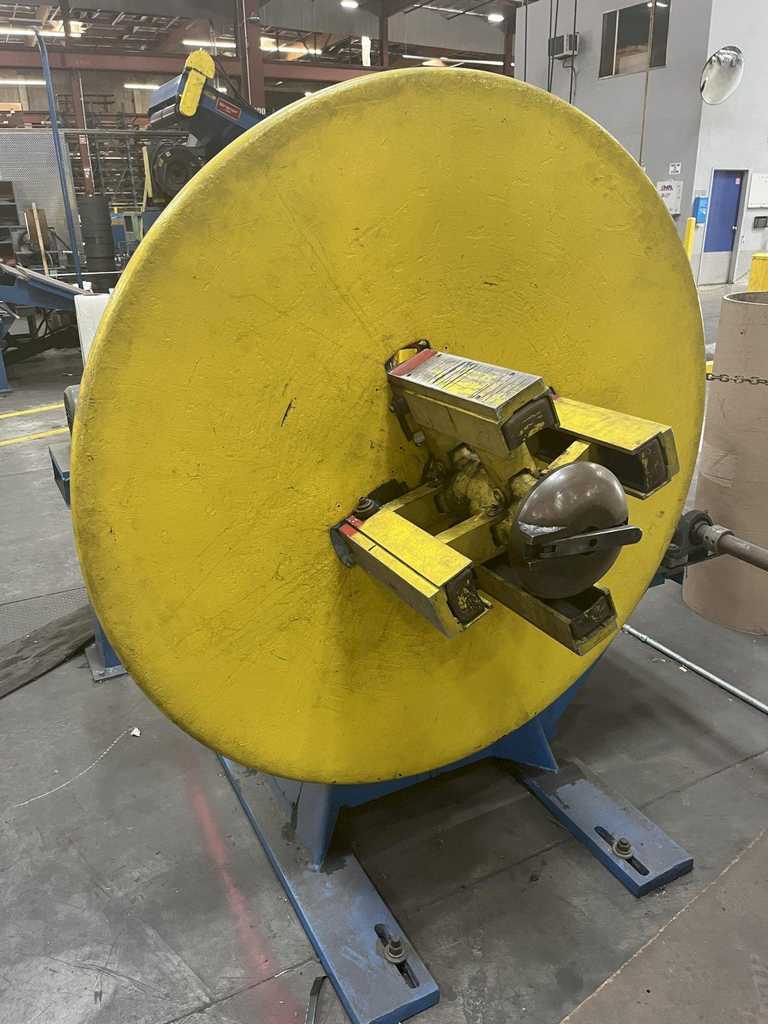

-Littell Uncoiler:
Model: 40-12
Coil Width: 12″
Coil Weight: 4,000 lbs.
Coil I.D.: 16″ – 20″
Manual Expansion
Coil O.D.: 60″
AC Drive Motor thru Right Angle Reducer

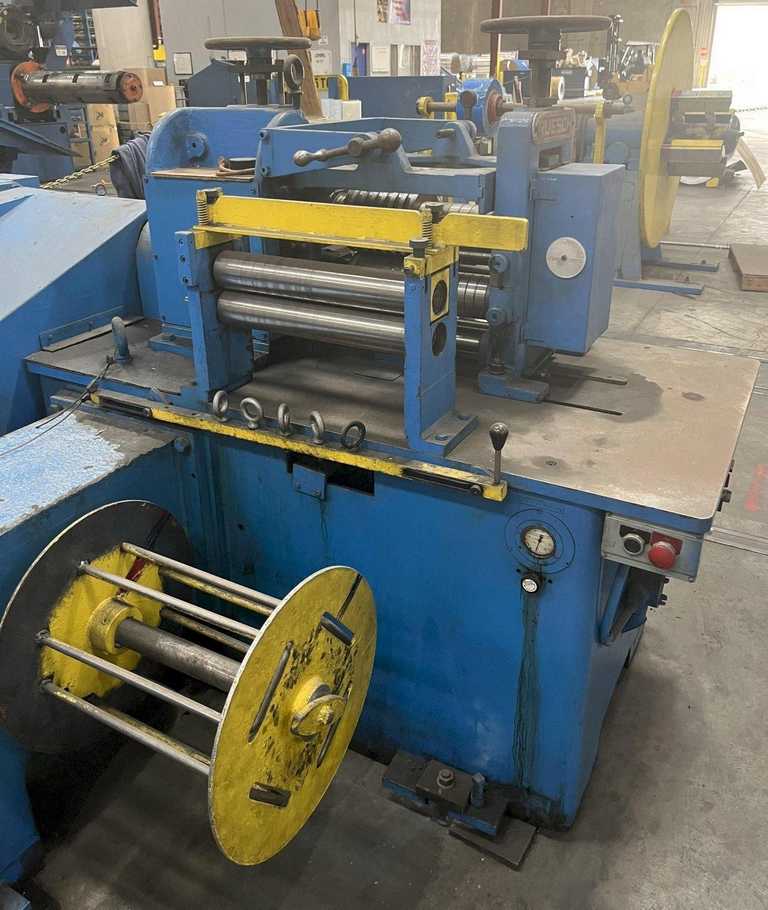

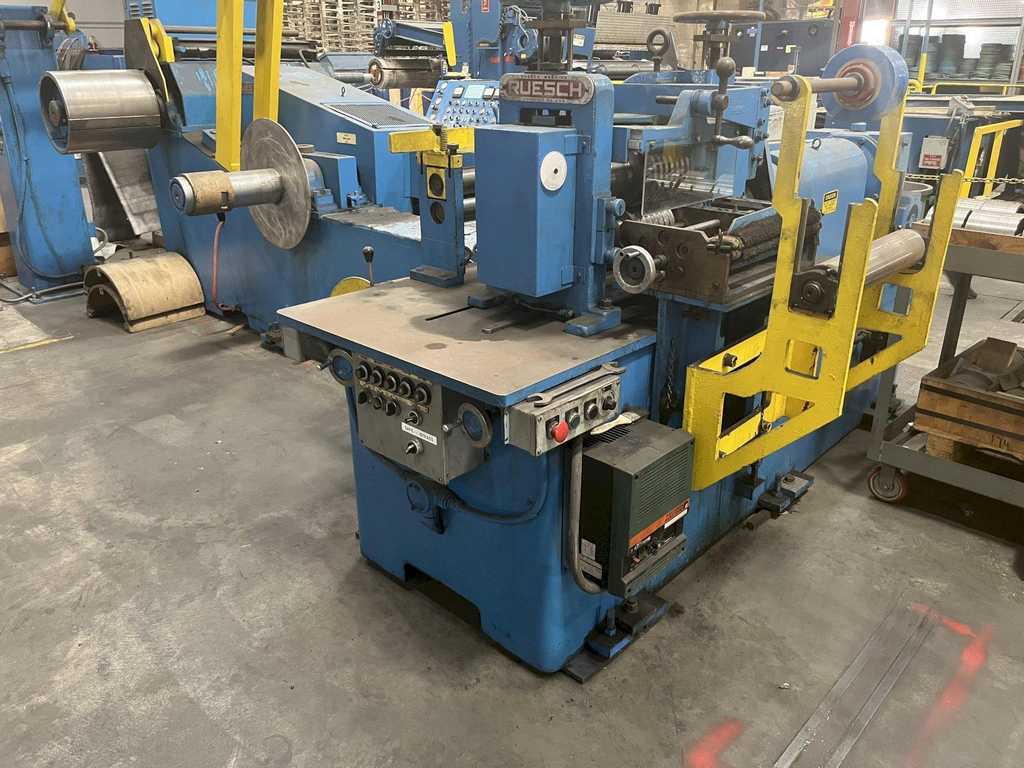

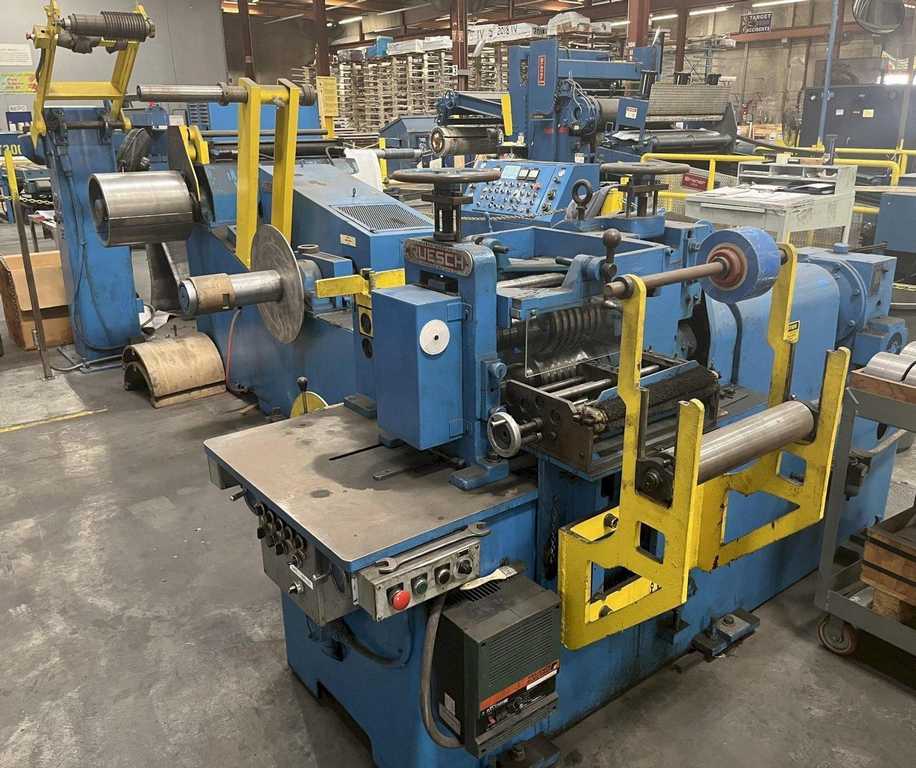

-Slitter Head:
Entry Pasline Roll
Entry Edge Guides
2.875″ Dia. x 14″ Face Arbors
Steel Stripper Ring Assembly
Exit Pinch Rolls

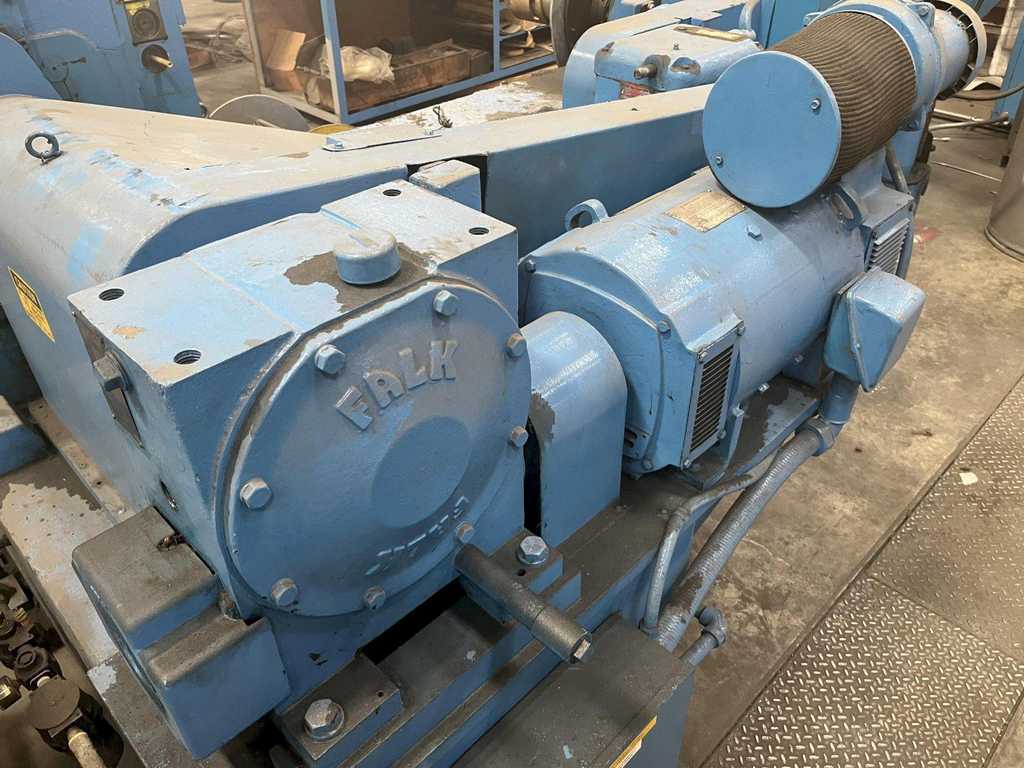

30 HP DC Motor, 1750/2300 Rpm, 240 V
2 Speed Transmission
Common Drive with Recoiler

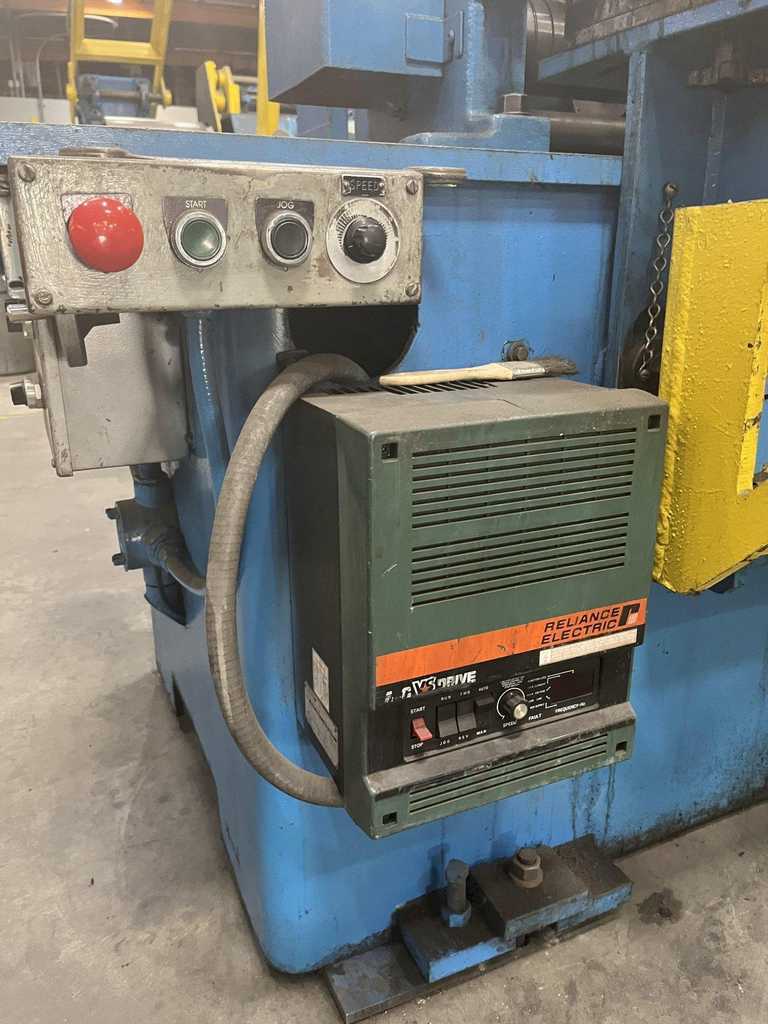

Reliance VS Drive
-Scrap Winder:
-(2) Recoilers:

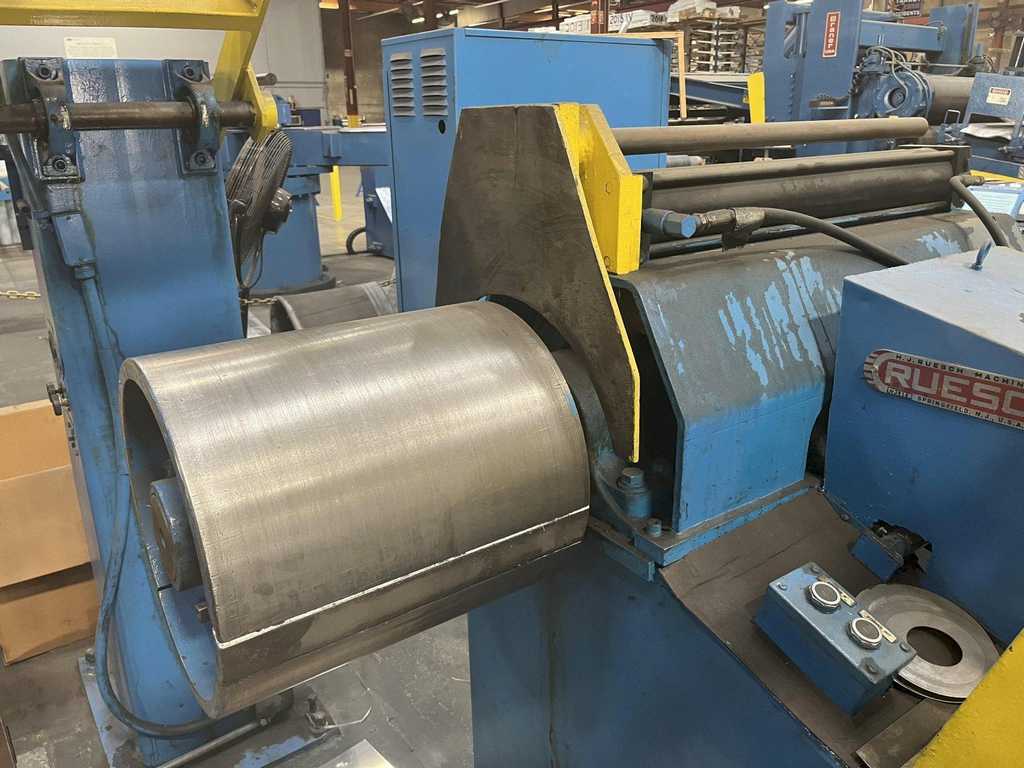

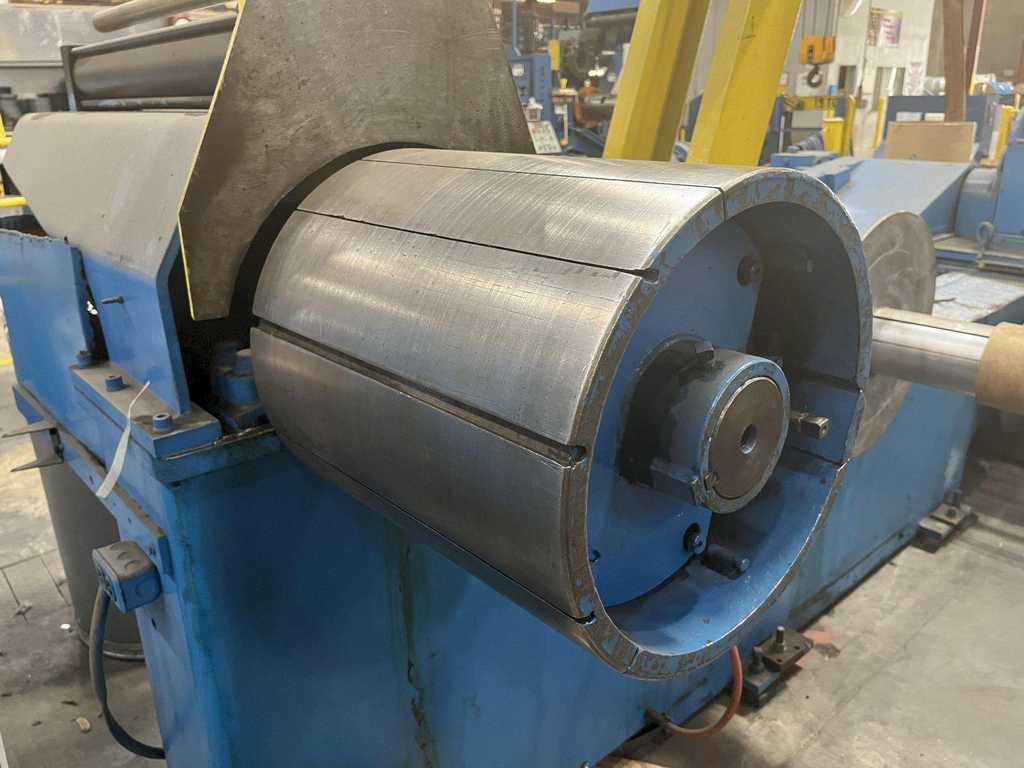

Recoiler #1: 12″ & 14″ Dia. Drums
Recoiler #2: 20″ Dia. x 16″ Face Drum w/24″ Pads
Manual Expansion
Material Slot (No Gripper)
Hydraulic Pushoff
-Freestanding Overarm Separator:
-Single Arm Turnstile:
Motorized Pushoff

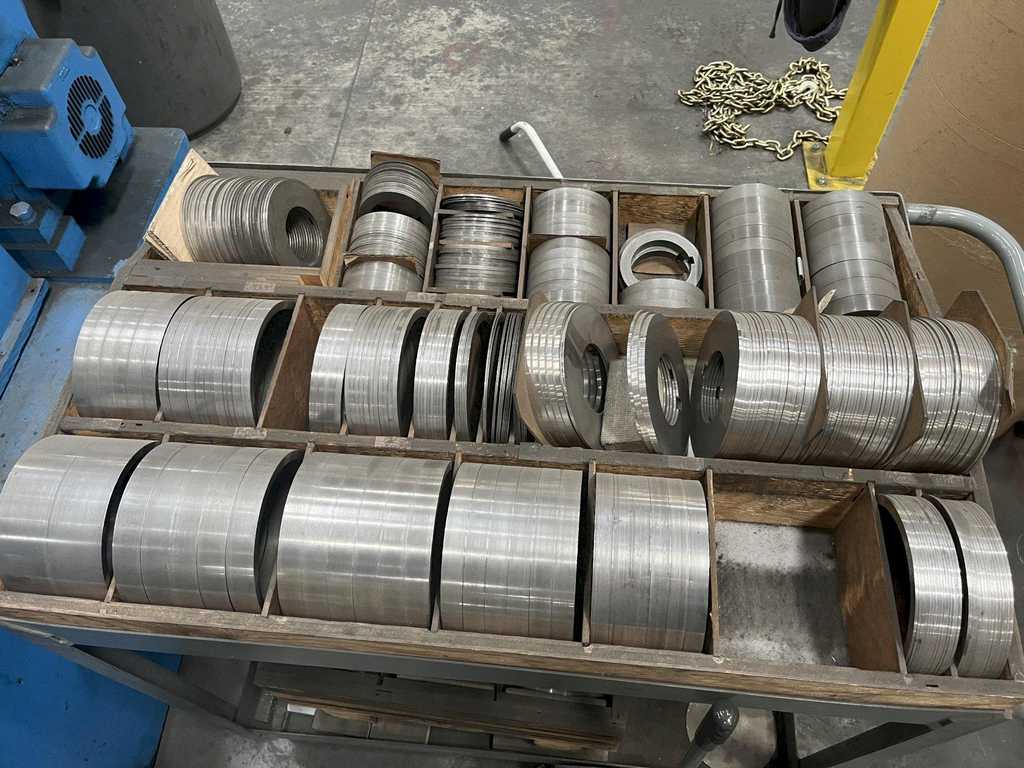

-Tooling:
