YEAR: 1978
-Model: 424-5PD Inclined
-24″ Wide x 0.036″ – 0.093″ Thick (Mild Steel)
-5 Work Rolls, 2 over 3
-24.5″ Face x 3.125″ Dia. Work Rolls
-Entry Guide Rolls; 27.5″ Face x 1.75″ Dia.
-Entry Pinch Rolls; 24.5″ Face x 4.25″ Dia.
-Loop Control Arm
-63″ Entry Passline Height
-60 FPM Line Speed

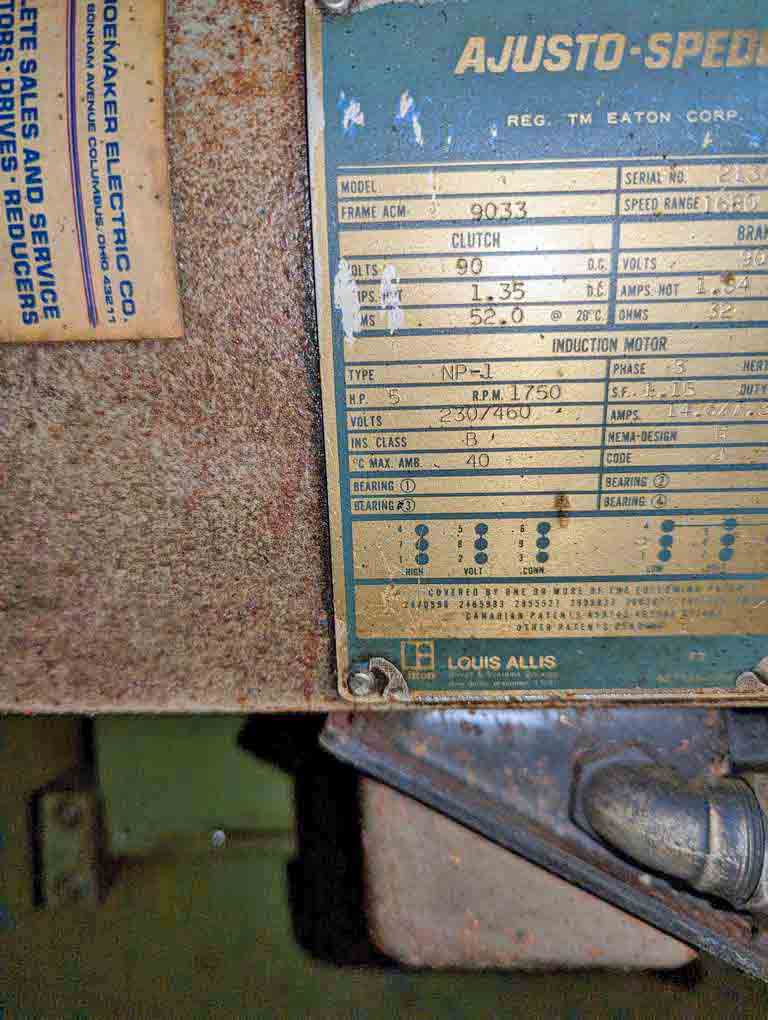

-5 HP Louis Allis AC Main Motor, 1750 RPM, 230/460 V
-Line Direction: Left to Right
-Operator/Parts Manual Included
-Overall Size: 54″ L x 50″ W x 67″ High
