Ruesch Model: 146
Type: Steel, Stainless Steel and Copper Alloys
Stock Width: 24″ (609.6mm) (25″ untrimmed – 635mm)
Coil O.D.: Maximum 60″ (1524mm)
Entry Coil I.D.: 16″ – 20″ (406mm – 508mm)
Exit Coil I.D.: 16″ and 20″ (406mm and 508mm)
Coil Weight: 6,000 lbs. (2720 kg)
Stock Thickness – Maximum:
As per Catalog: 0.125″ (3.175mm)
As per Original Order: 0.080″ (2.0mm)
As Used – Maximum: 0.093″ (2.36mm)
As Used – Minimum: 0.015″ (0.3mm)
Direction of Travel: Right to Left
Line Speed based on Recoiler Motor:
at 890 RPM: 112/420 FPM (34/128 M/Min.)
at 1775 RPM: 225/844 FPM (68/257 M/Min.)
Consisting of the following:
-Uncoiler:
Hydraulic Link-Type Expansion
Mandrel Expansion: 16″ – 20″ (406.4 – 508mm)
Mandrel Width: 28″ (711.2mm)
Non-Driven
Back Tension: Wichita Air Clutch
Air Controls: Numatics Worldwide
Brake Cooling System: Champion Blower Size 1-3/4FC
Passline: 35″ from Floor to the center of the Mandrel
Overall Size: 92″ L x 66″ W x 51″ High

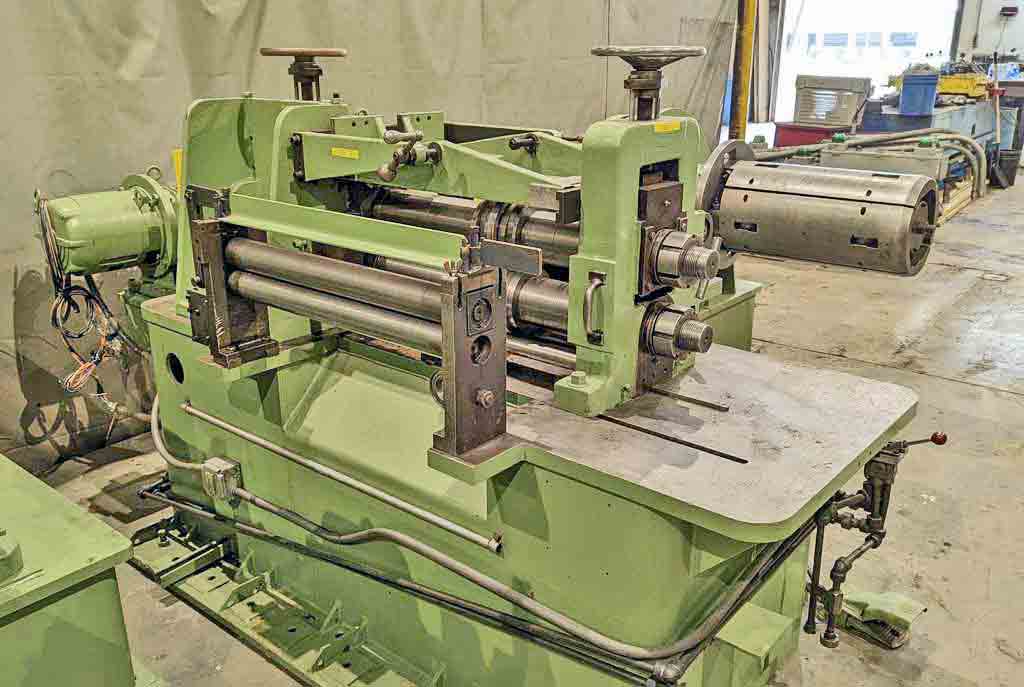

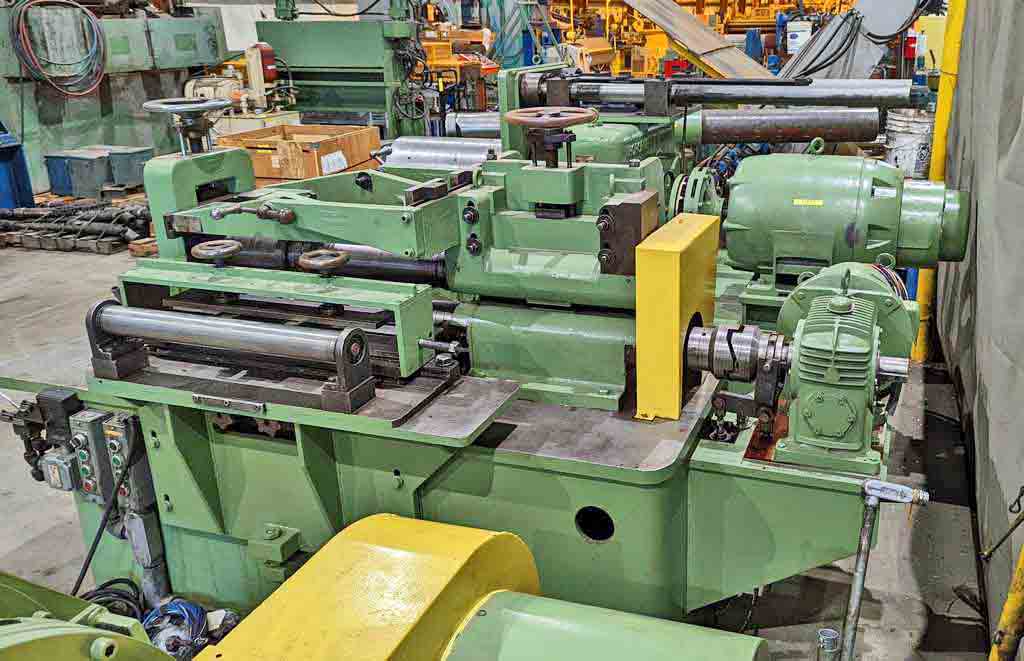

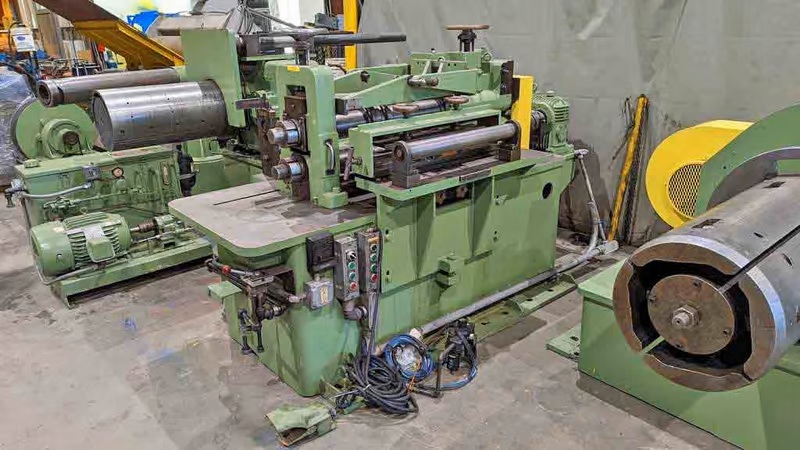

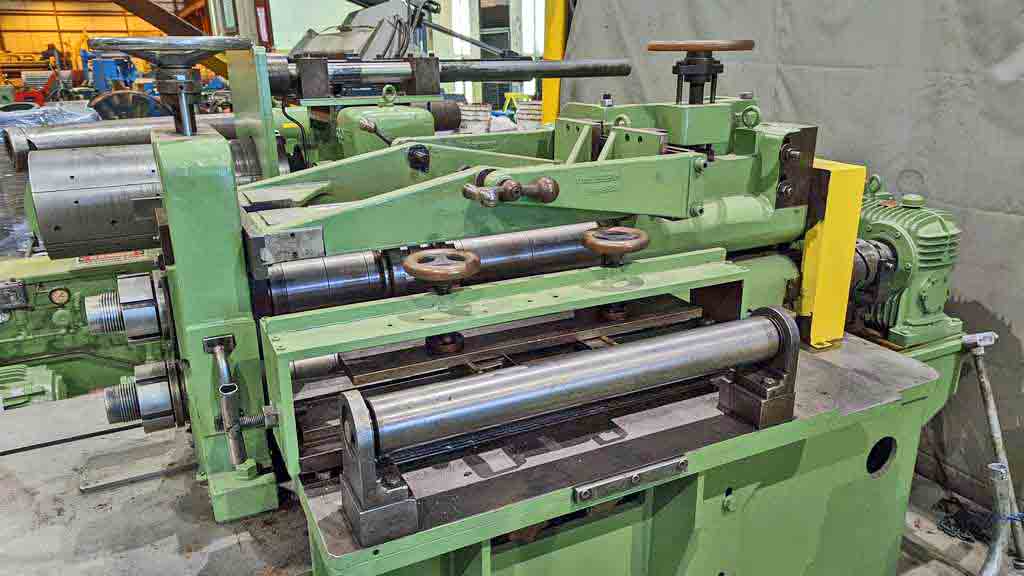

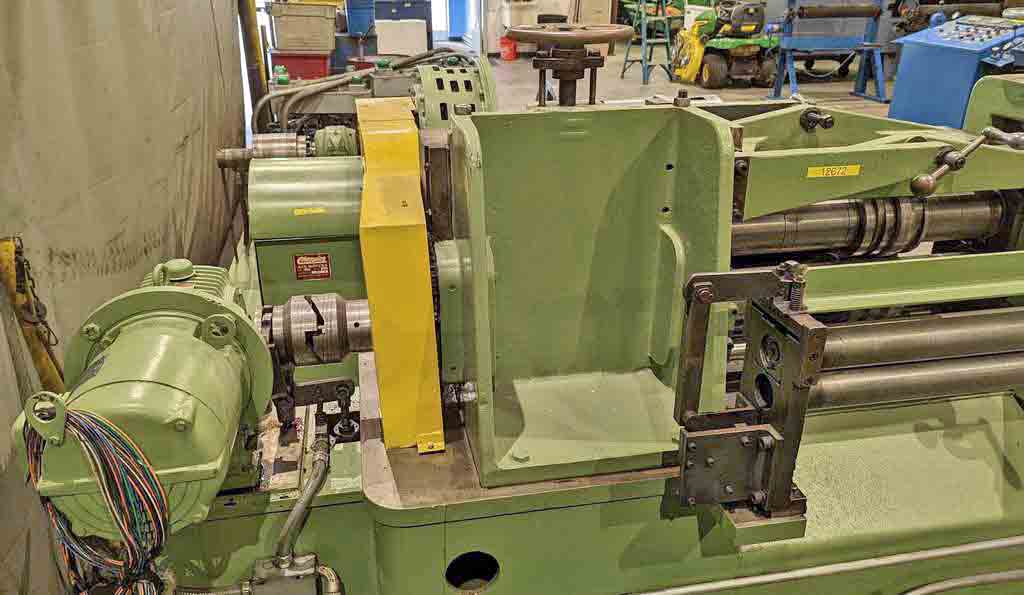

-Slitter Head:
Steel Stripper Ring Assembly
Single Entry Billy Roll: 3.250″ (82mm) Dia. x 27″ (685mm)
Entry Strip Holddown with Side Guides: Manual Adjustment

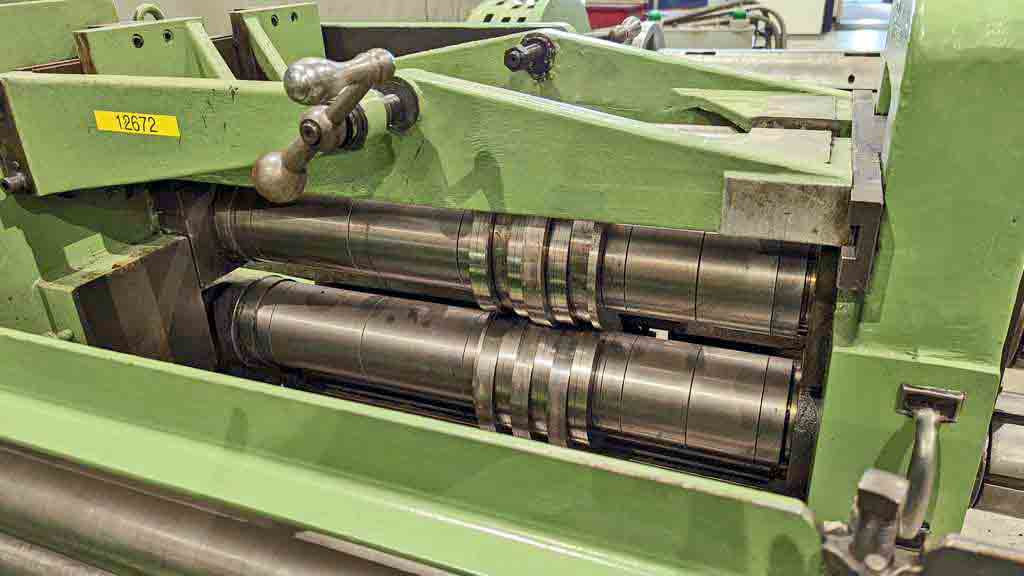

Arbor Size: 4.125″ (105mm) Dia. x 27″ (685mm) Face Width
Slitter Head Adjustment: Handwheel on both sides
Exit Passline Roll

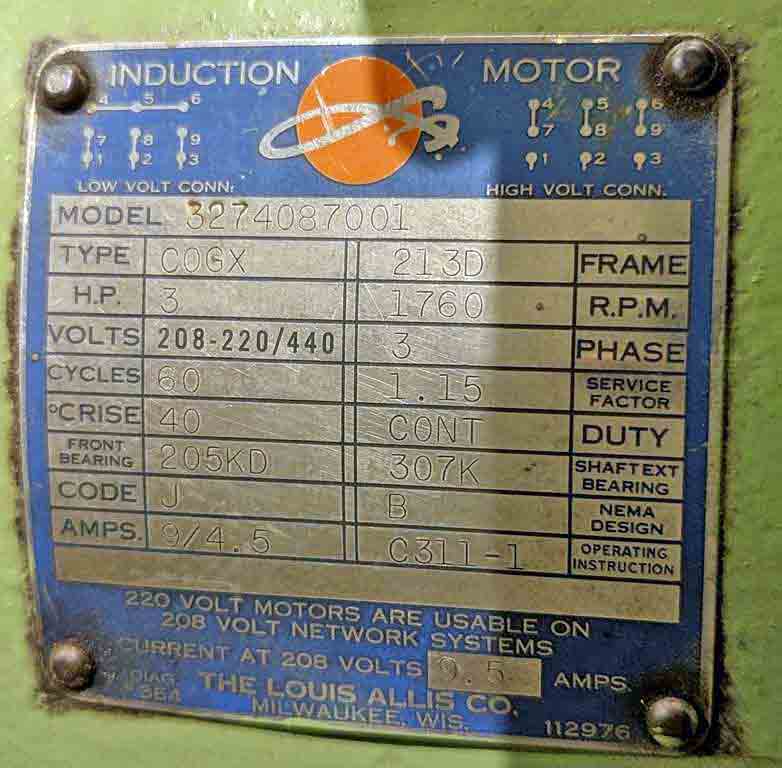

Threading Motor: 3 HP Louis Allis AC, 1760 RPM, 208-220/440 Volt, 9/4.5 Amps,
Right Angle Reducer with 100:1 ratio

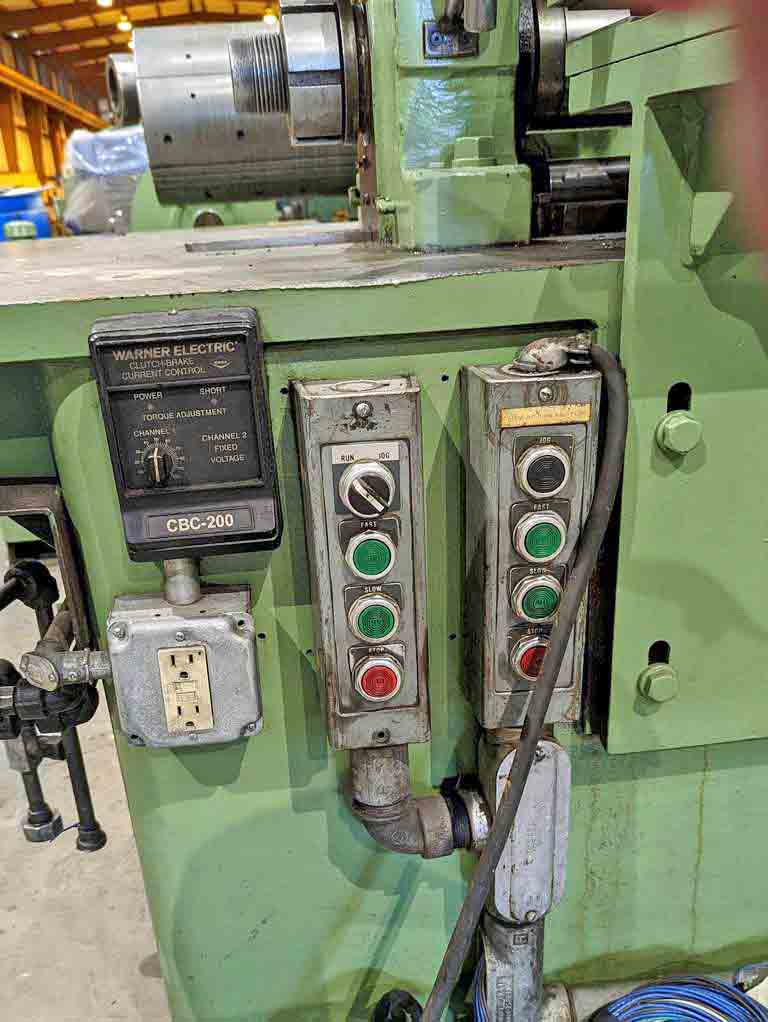

Warner Electric Clutch-Brake Current Control, Model CBC-200
Pushbutton Controls
Spacer O.D.: 6.125″ (155mm)
Knife O.D.: 7″ (178mm) Maximum, 6″ (152mm) Minimum
Stripper Ring: 7.250″ (184mm) O.D. x 6.250″ (159mm) I.D.
Includes Wooden Stripper Fingers
Passline: 40″
Overall Size: 105″ L x 48″ W x 62″ High

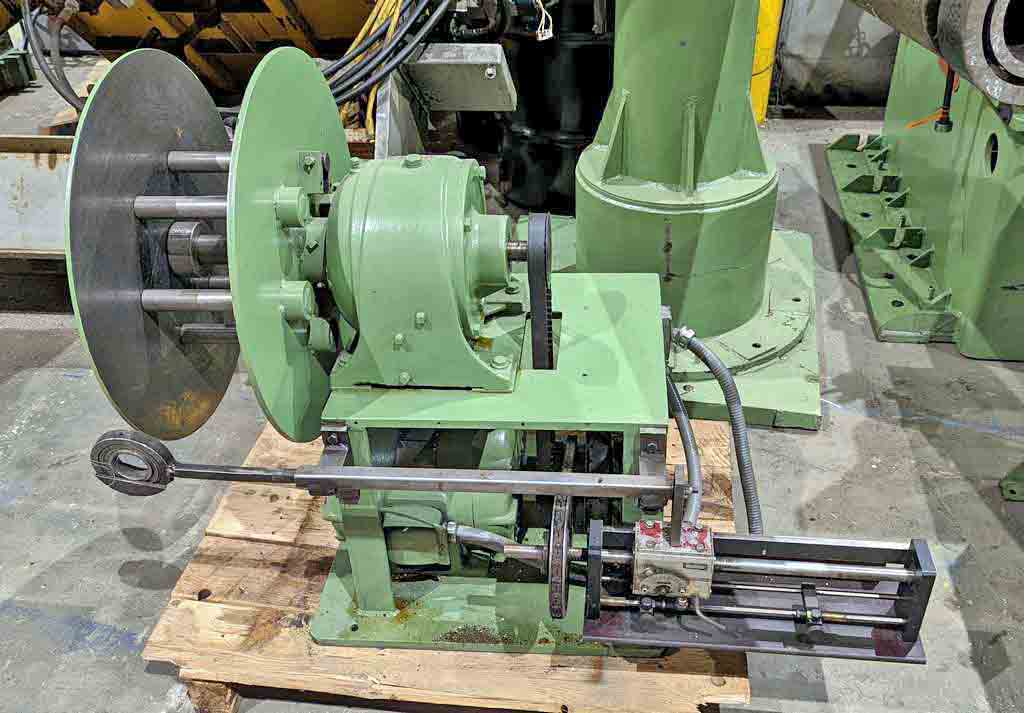

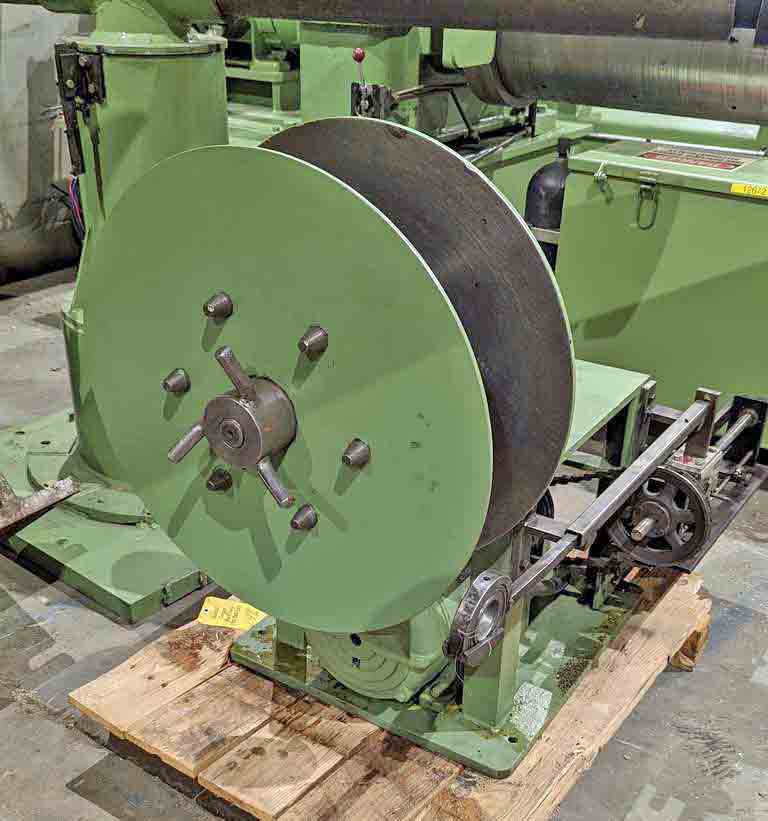

-Scrap Winder:
Maximum Traverse: 8″ (203mm)
Coil I.D.: 12″ (304.8mm)
Maximum Coil O.D.: 24″ (610mm)
Drive Motor: 5/2.5 HP AC, 1740/870 RPM, 460 V, 9.2 Amps,
3 Phase/60 HZ, Louis Allis
Gearbox: Louis Allis s/N 1W-30540, Input RPM 1750, Output RPM 155,
Ratio 11.4:1
Oscillate Wind
Overall Size: 48″ L x 28″ W x 36″ High

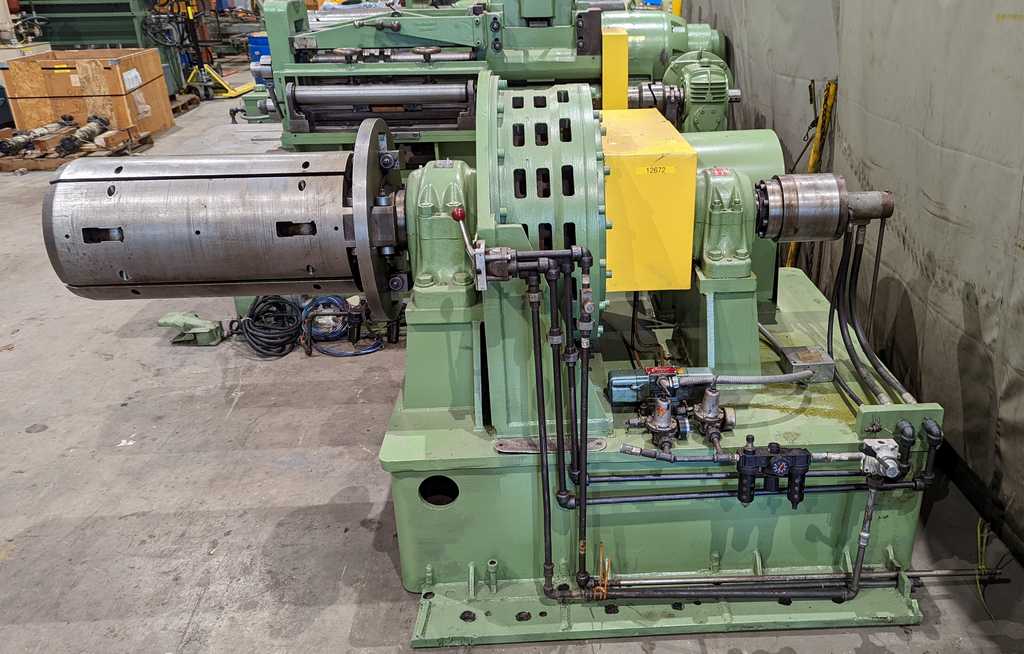

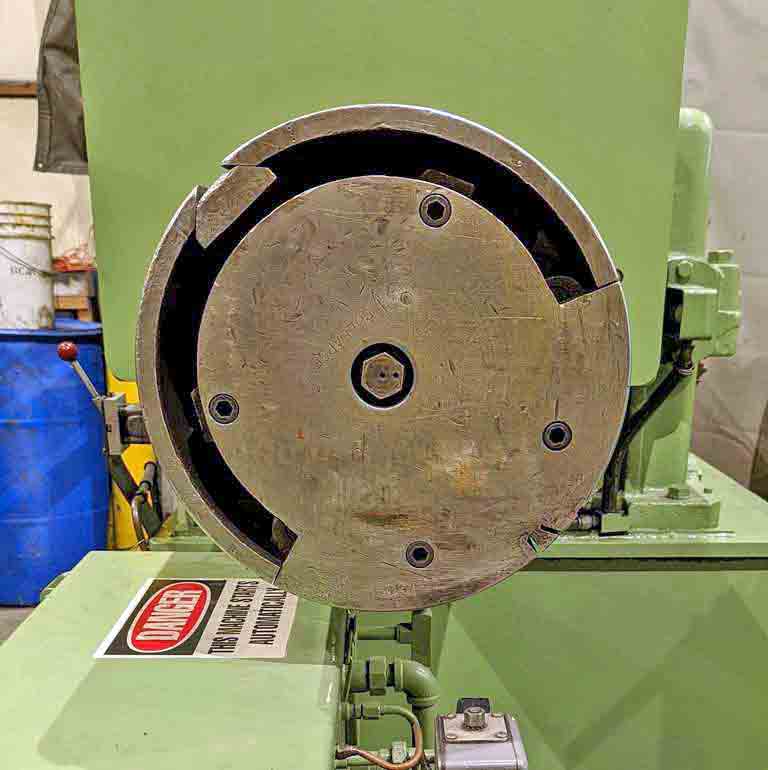

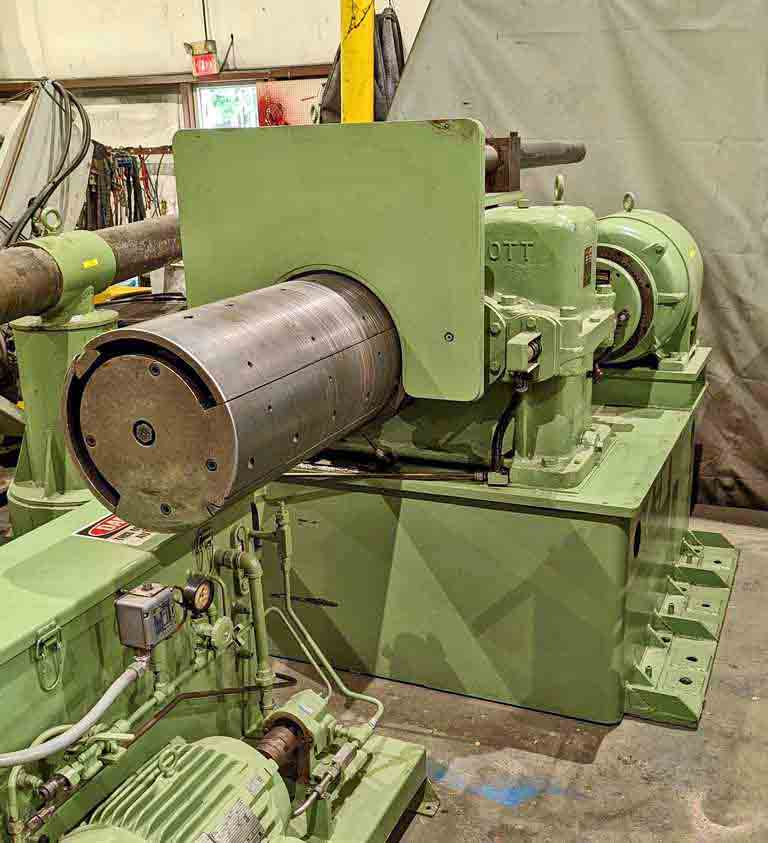

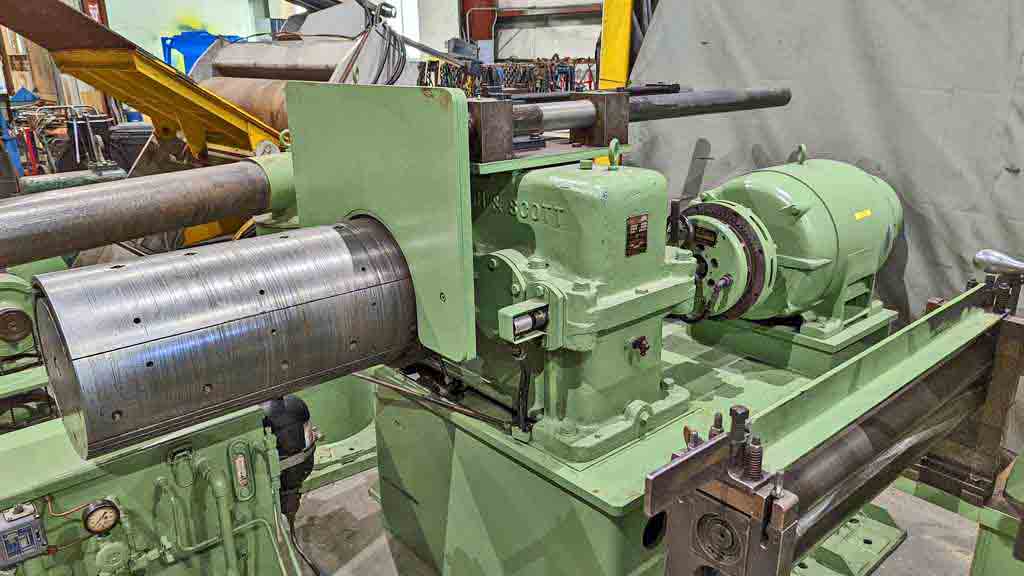

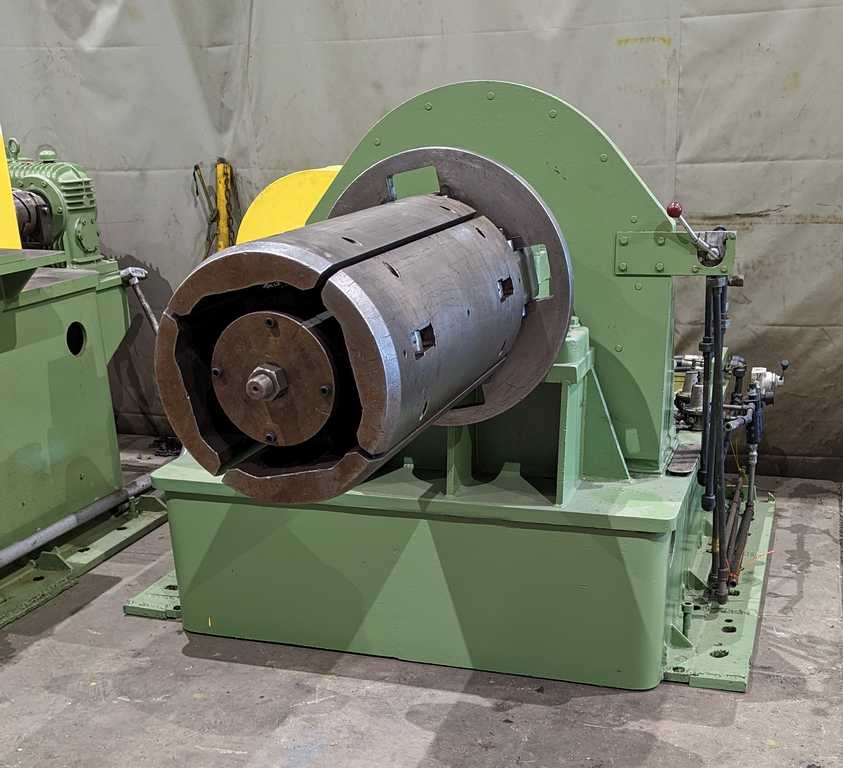

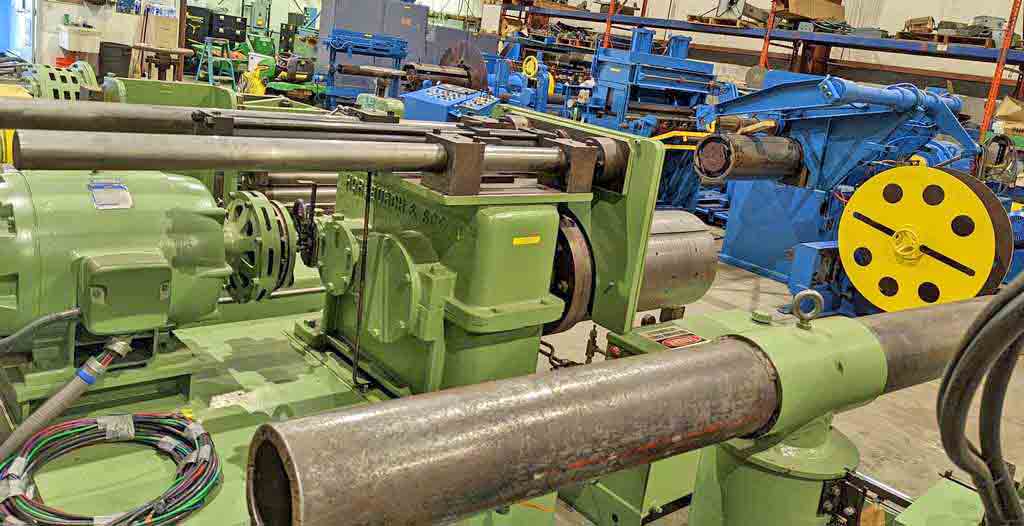

-Recoiler: Ruesch
Type: Expanding Mandrel
Drum Size: 16″ (406.4mm) Dia. x 30″ (762mm) Face Width
Bolt-On Pads for 20″ Dia. (508mm)
Type of Expansion: Hydraulic
Material Slot, No Gripper
Coil Pushoff: Hydraulic
Separator Plates
Horsburgh & Scott Main Gearbox with 32.4:1 ratio
Drive Motor: 50/25 HP, Louis Allis, 890/1775 RPM, 440 V, 64/43 AMPS, 3 PH, 60 HZ,
Type C0GMX, S/N: 3274629001 with Wichita Slip Clutch for Acceleration Control
and Timing Belt Drive.
Air Holding Brake: Louis Allis Magnetic Model 1-042-031-1, Torque 230 ft.
440 Volt, 3 PH, S/N: B-386-463
Passline: 40″ from Floor to center of Drum
Overall Size: 106″ L x 60″ W x 62″ High

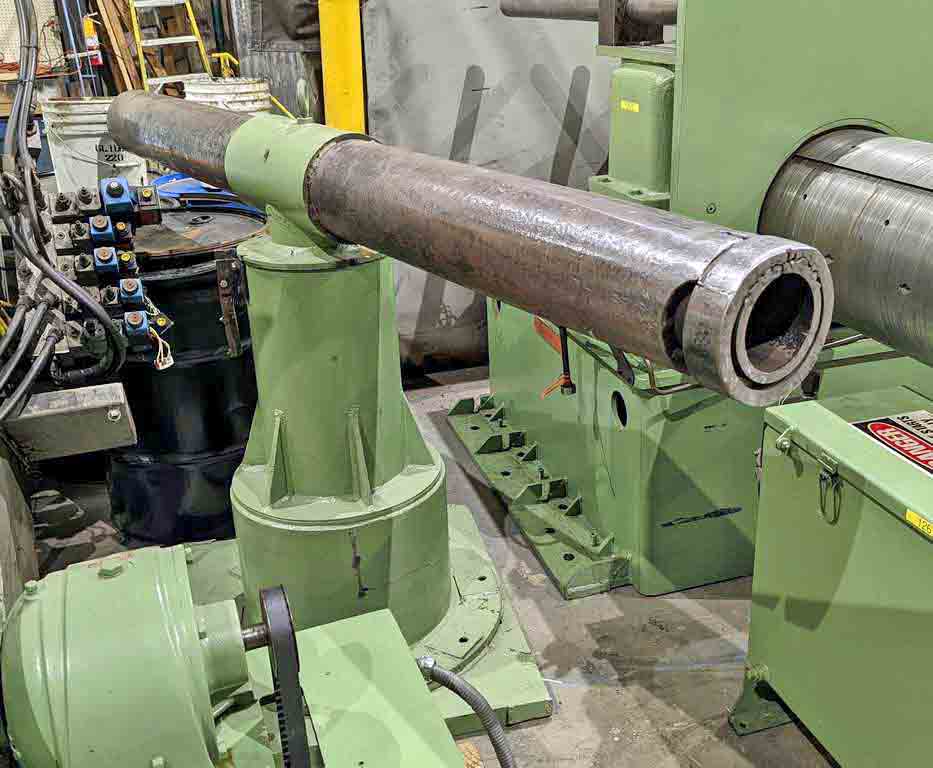

-Turnstile:
No. of Arms: 2
Arm Size: 8″ (203.2mm) Dia. x 39″ (990mm) Face
Manual Rotation
Passline: 49″ from Floor to top of Arm
Base Plate: 36″ x 36″
Overall Size: 98″ L x 36″ W x 53″ High

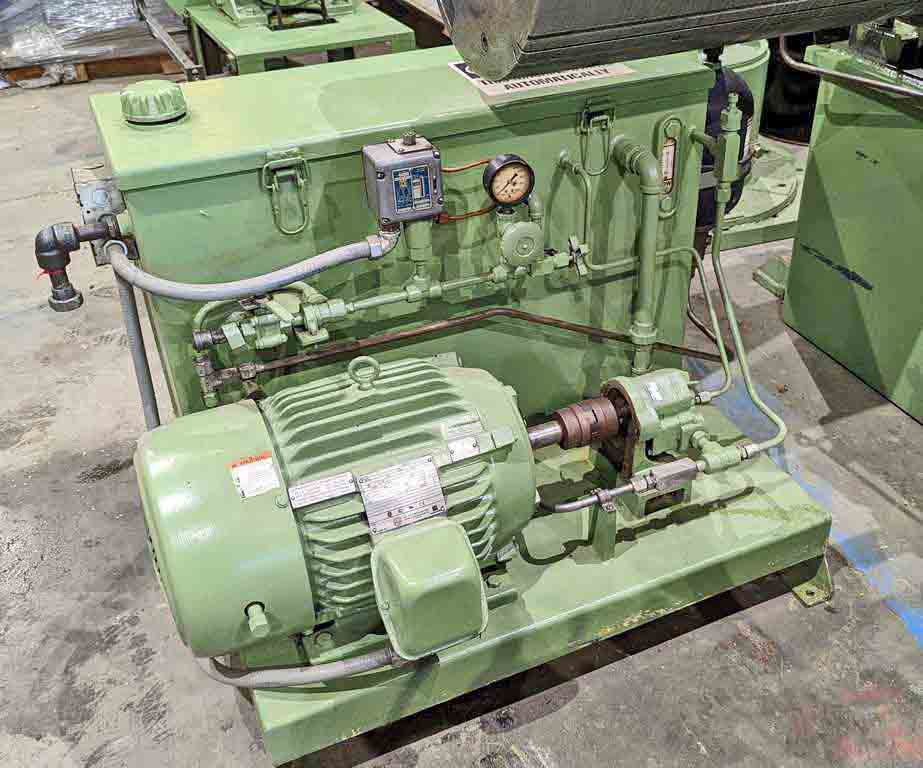

-Hydraulic Unit:
Drive: 7.50 HP AC, 1180 RPM, 9.2 Amps, 3 PH, 60 Hz.
Oil Temperature Gauge
Oil Reservoir: Approx. 40 Gallon Capacity
Accumulator
Overall Size: 48″ L x 34″ W x 33″ High
-Large Quantity of Tooling

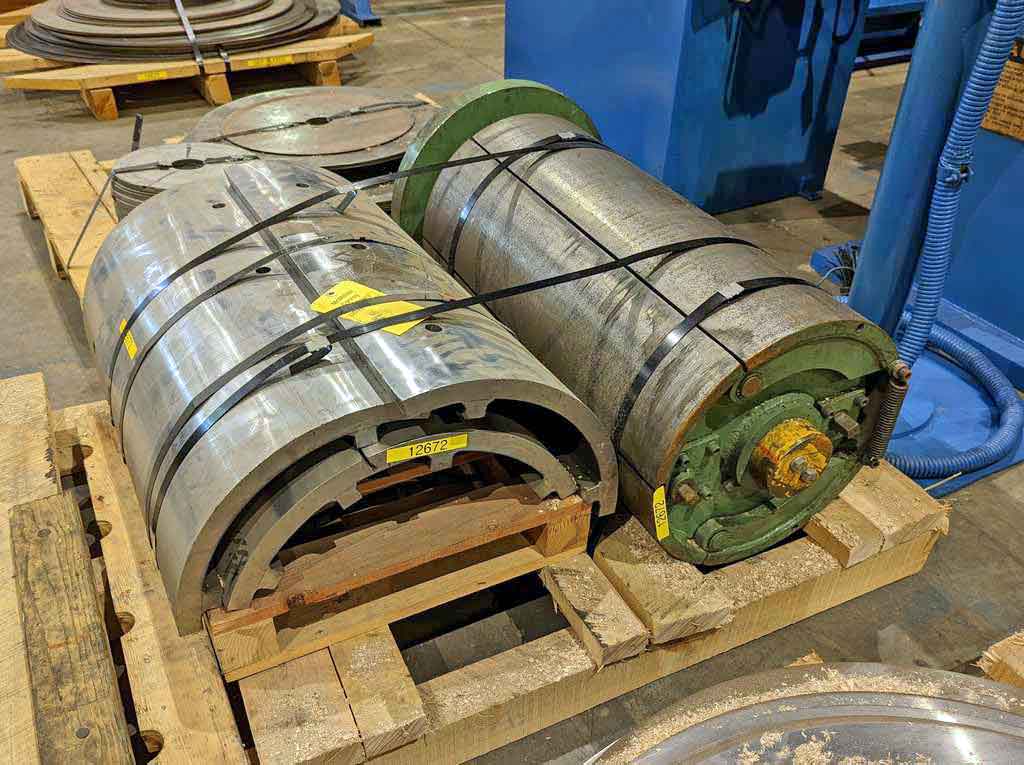

-Spare 16″ Dia. Drum for Recoiler
