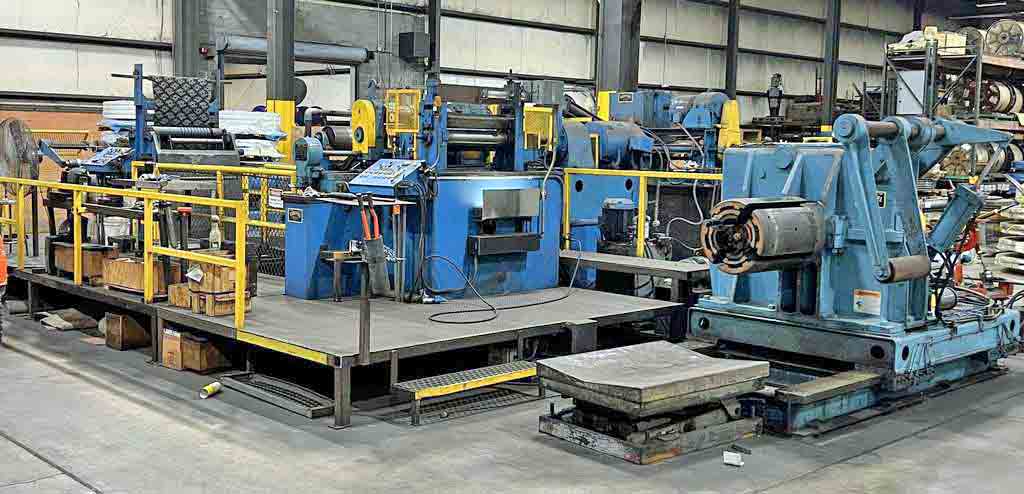

Width: 24″
Weight Capacity: 12,000 lbs.
Coil ID: 10″ – 20″ Entry
16″ Exit
Coil OD: 60″
Line Direction: Right to Left
Consisting of the following:

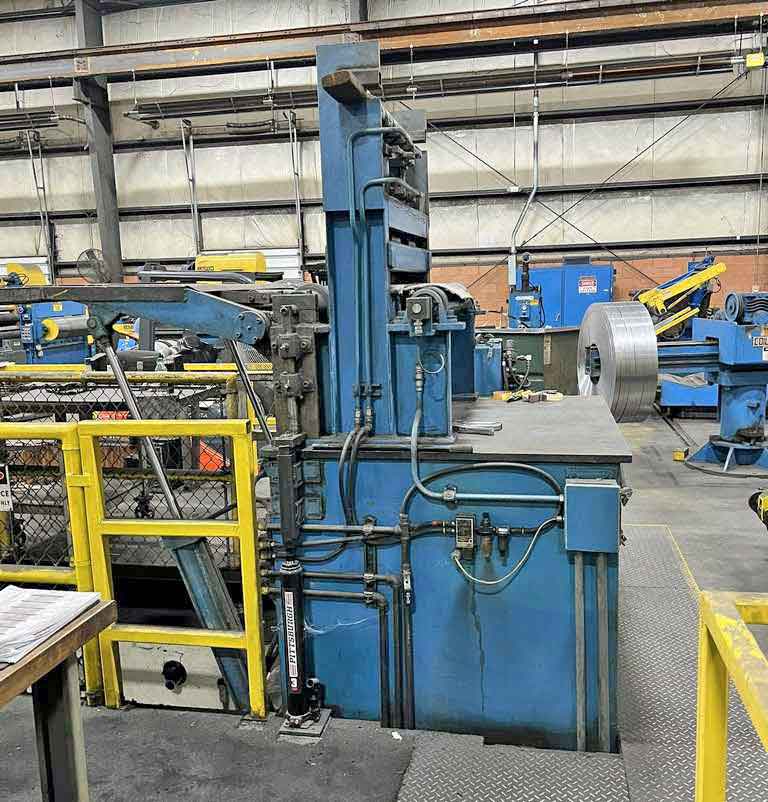

-Entry Coil Lift: American Lift
Stationary Lift
48″ Bed Width
12.5″ from Floor to bottom of “V” Cradle
Hydraulic Scissor Lift
Overall Size: 48″ L x 35″ W x 14″ High

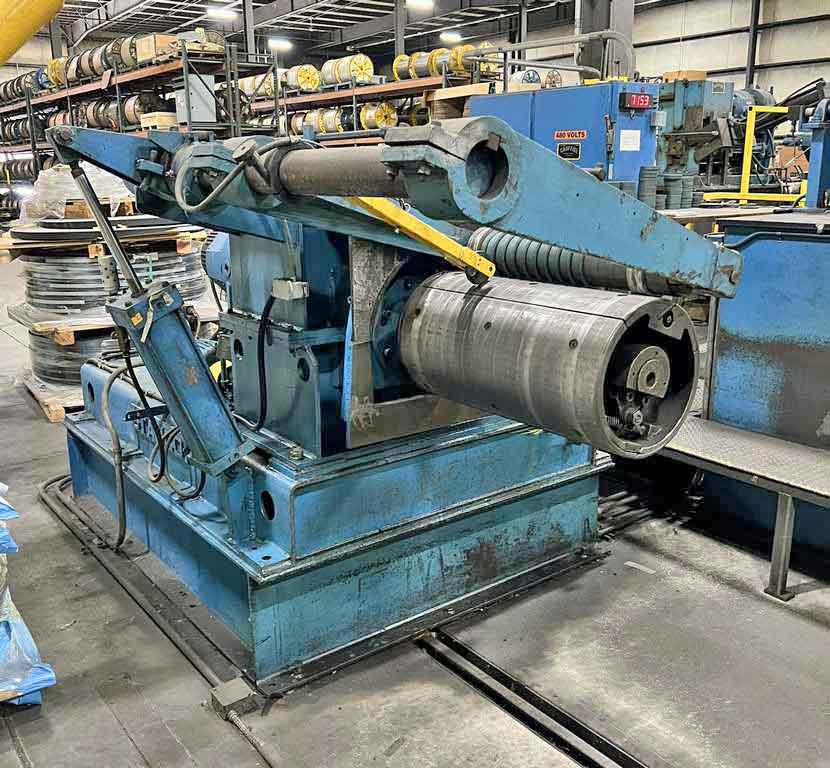

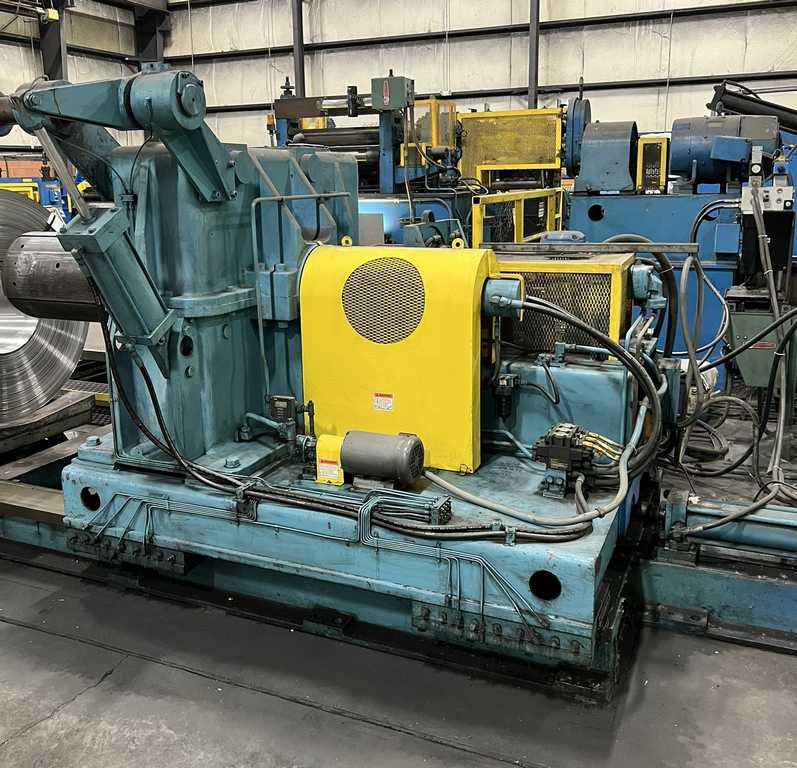

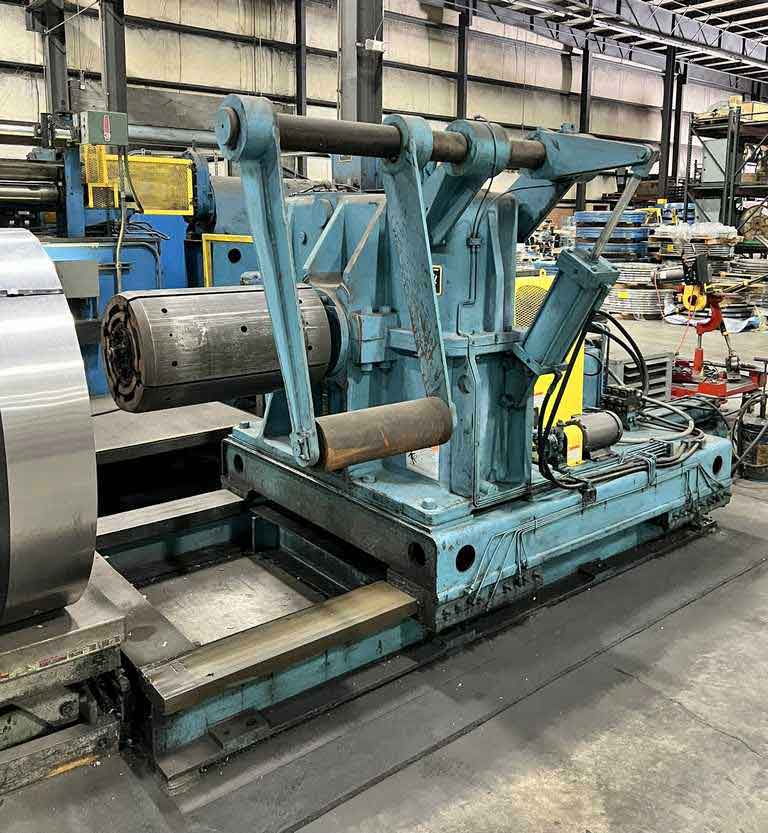

-Mandrel Uncoiler: Stamco
28.5″ Face Mandrel
Hydraulic Expansion, 10″ – 20″ I.D. range w/Pads
Hydraulic Feedup Motor
Wichita Water Cooled Brake
Hydraulic Slide Base
Overarm Holddown Roll
Overall Size: 180″ L x 87″ W x 83″ High

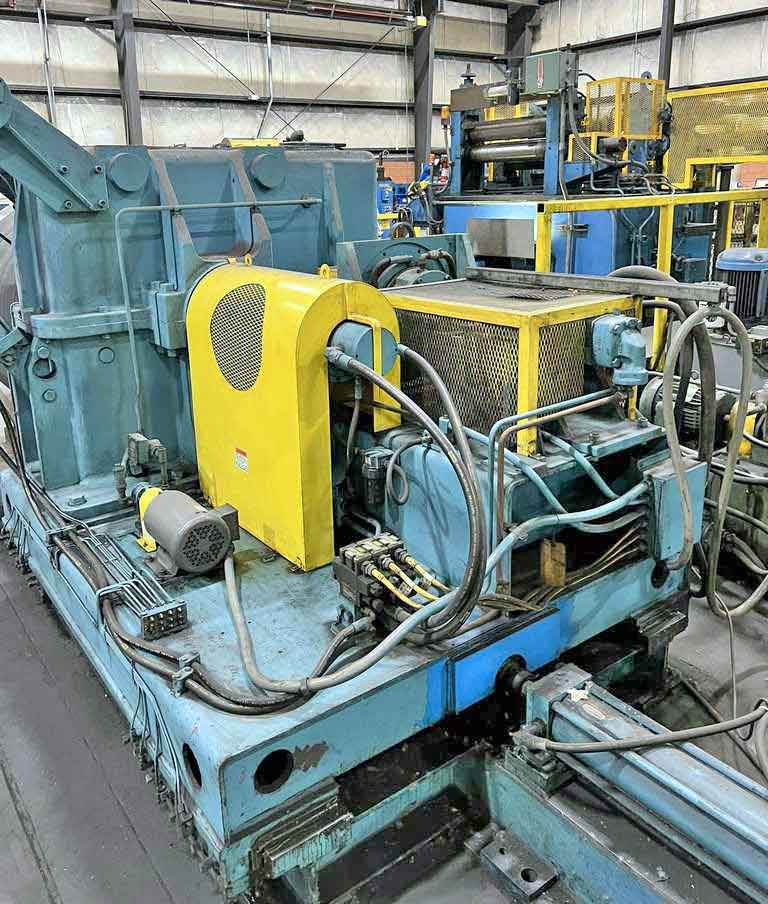

-Water Cooler:

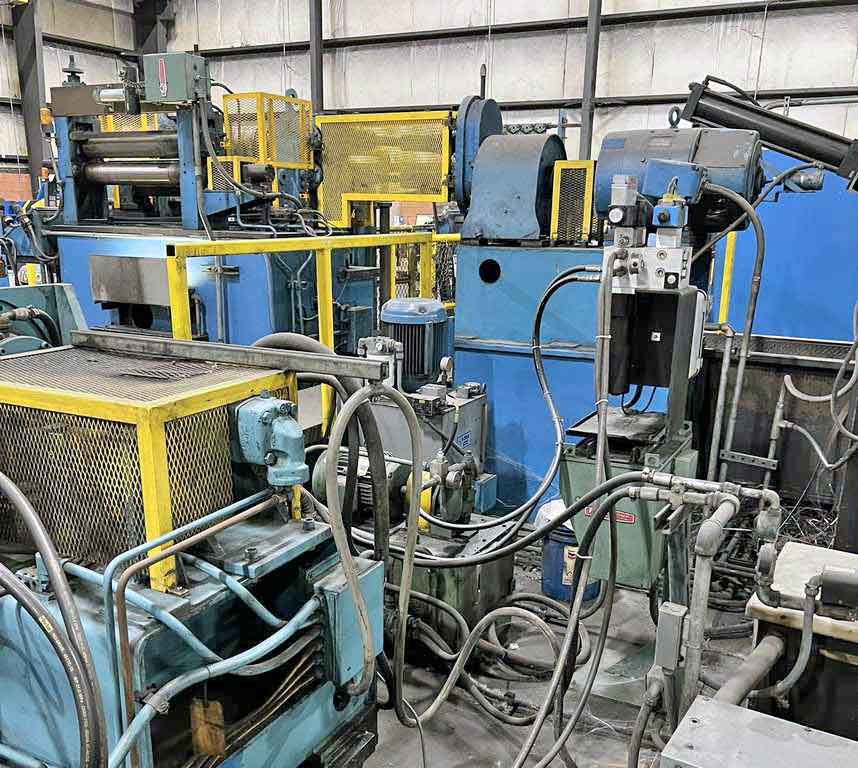

-Hydraulic Power Unit:
-North America Edge Control:
Photo Electric

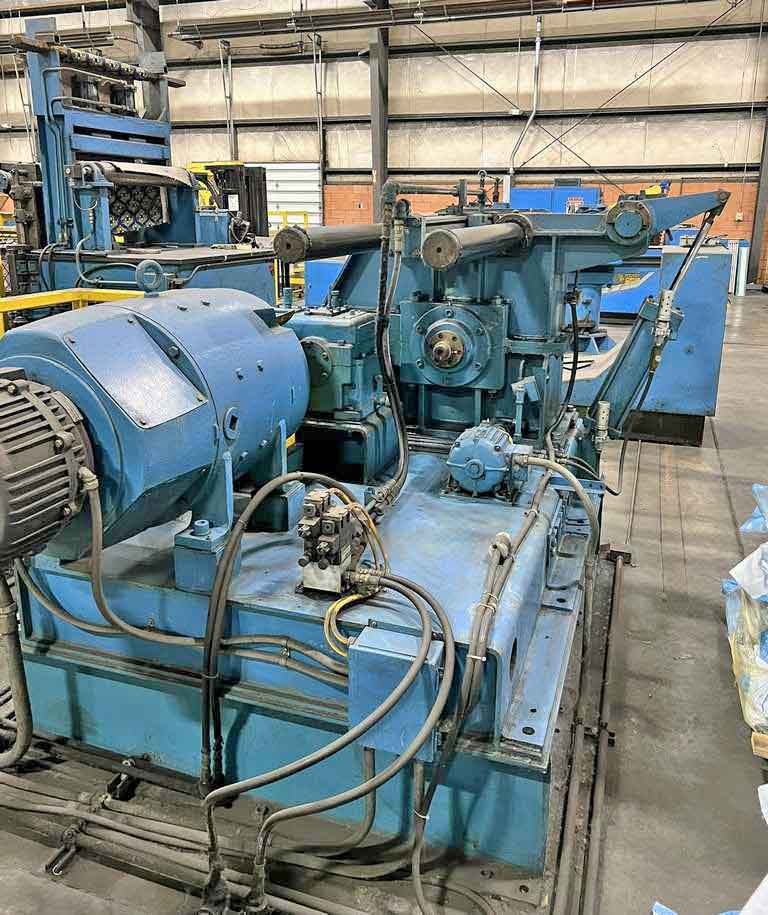

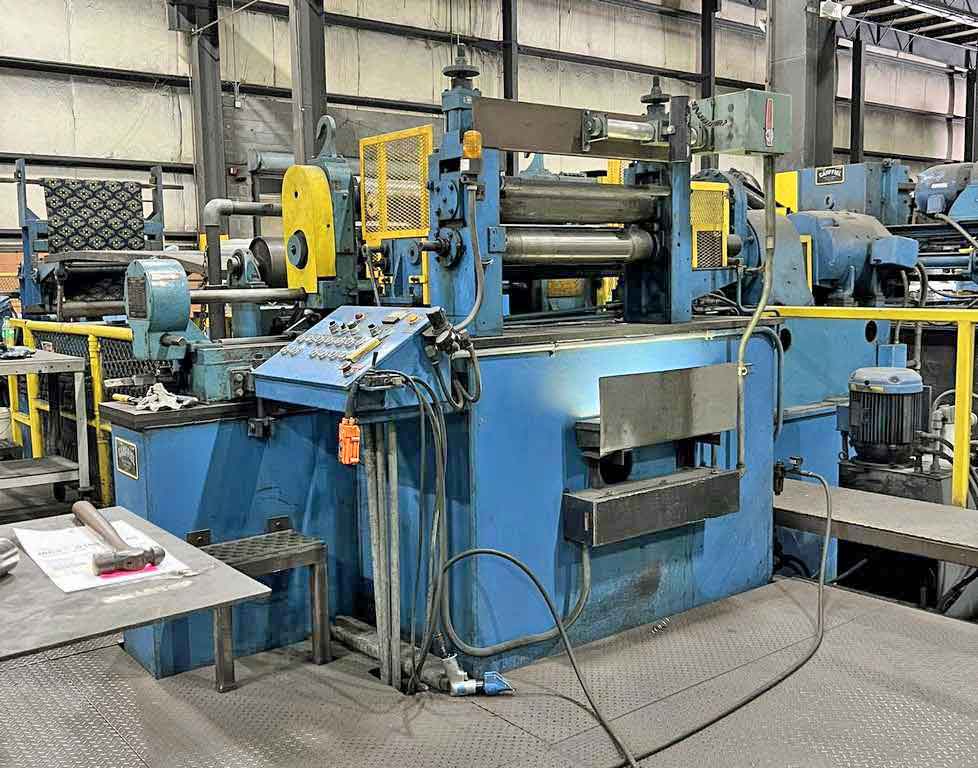

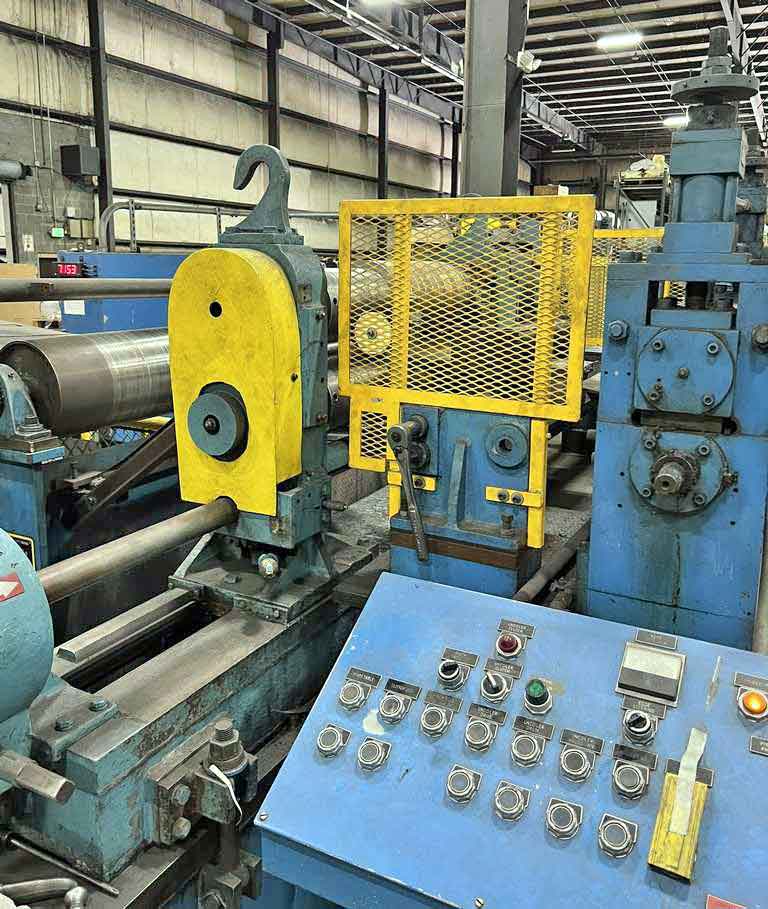

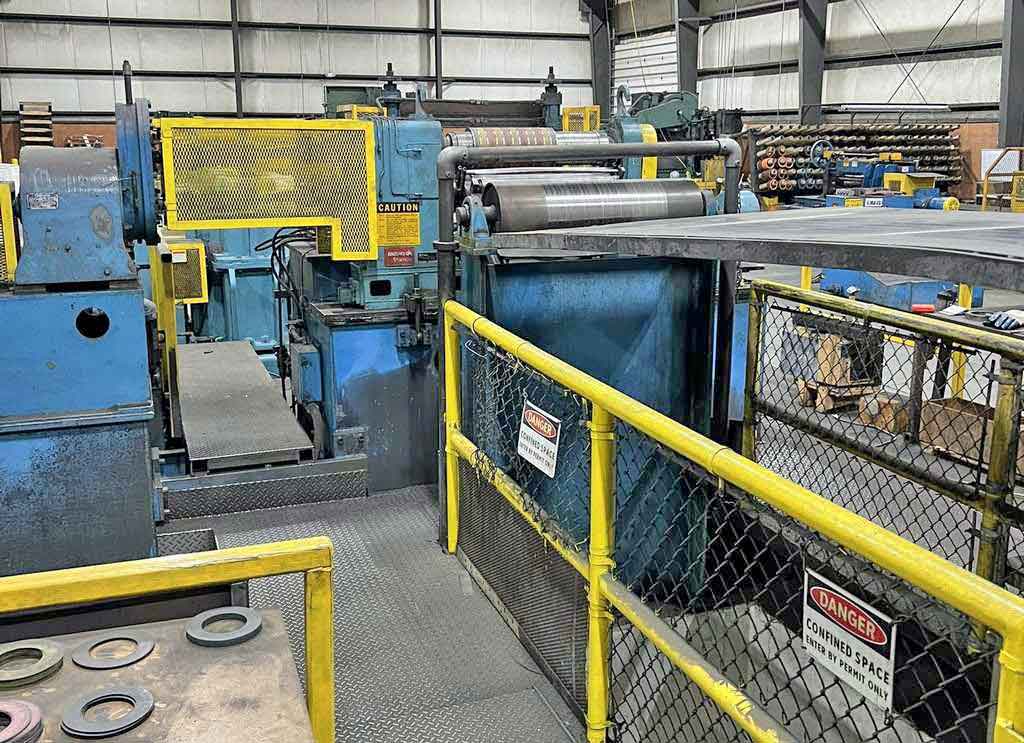

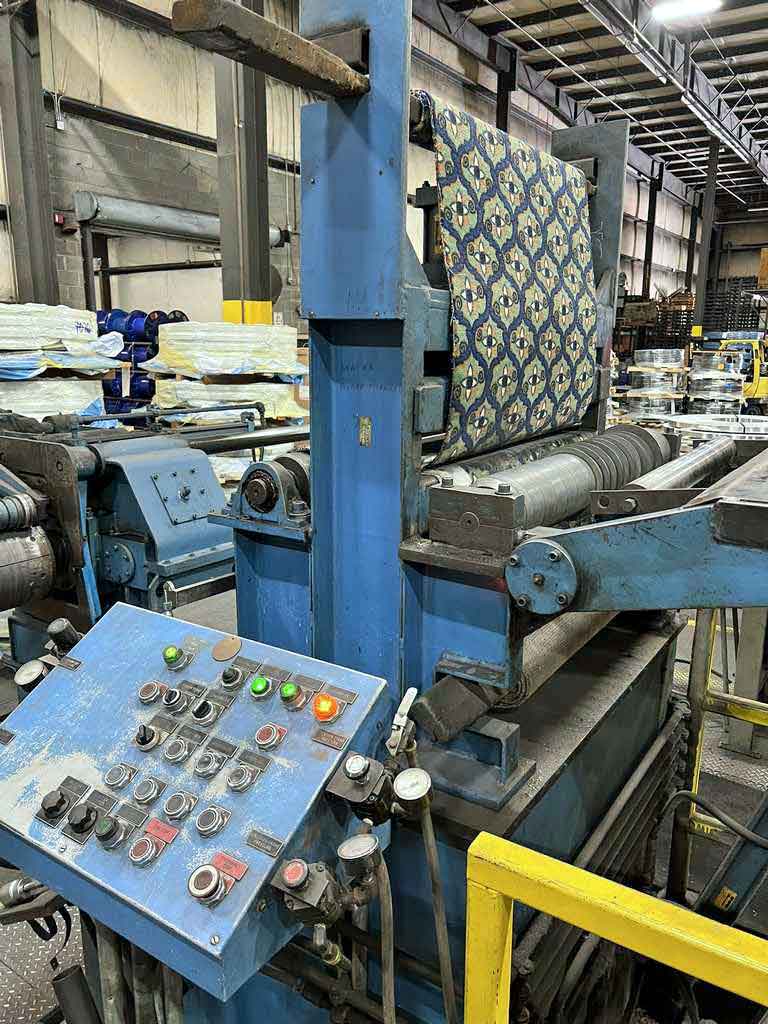

-Slitter Head: Stamco
Removable Head (1 Head)
Eccentric Arbor Adjustment
Entry Driven Pinch Rolls
Entry Side Guides with Center Holddown
25 HP DC Motor Drive
Integrated Pinion Stand Reducer
Overall Size: 184″ L x 58″ W x 100″ High
-Exit Passline Roll:
11″ Dia. x 36″ Face Roll
Overall Size: 46″ L x 38″ W x 80″ High
-Pit Cross Over Table:
Attached to Tension Stand

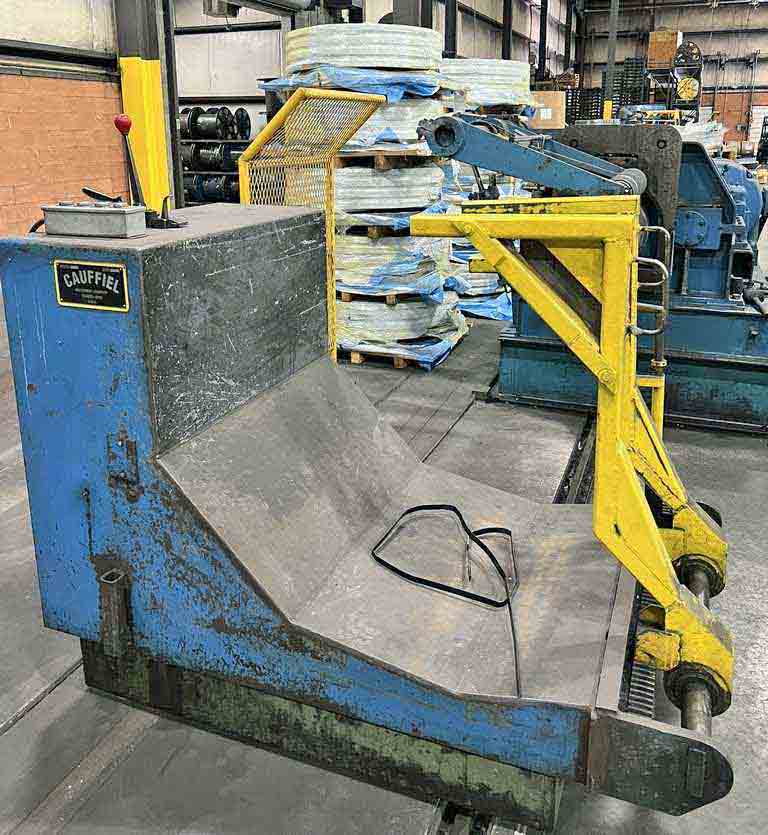

-Scrap Winder Baller:
AC Motor Driven
Hydraulic Cylinder Ball Dump
Overall Size: 88″ L x 76″ W x 99″ High

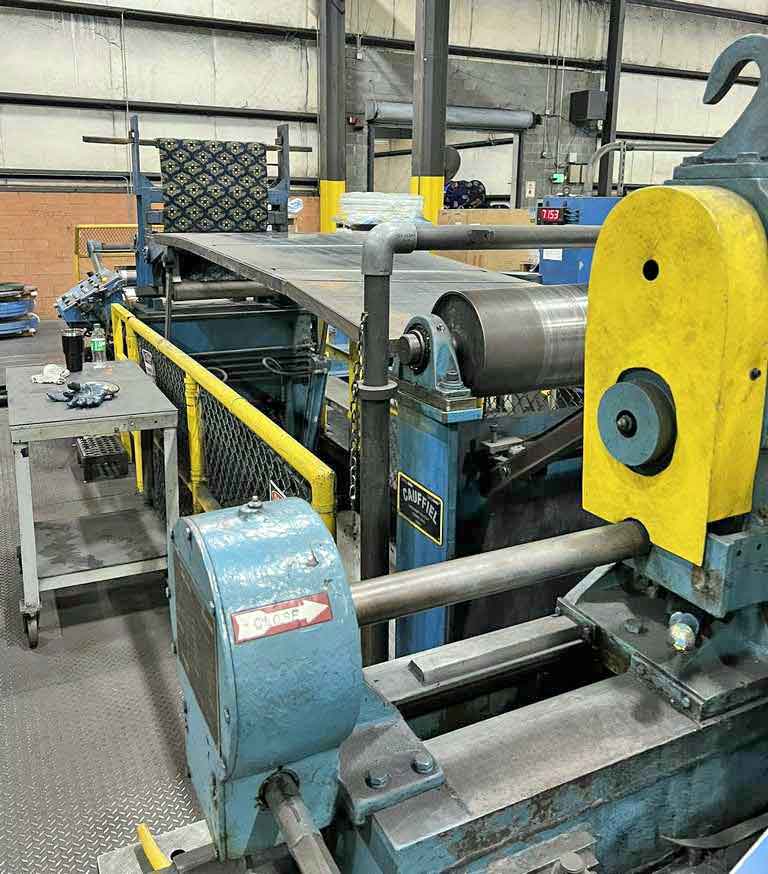

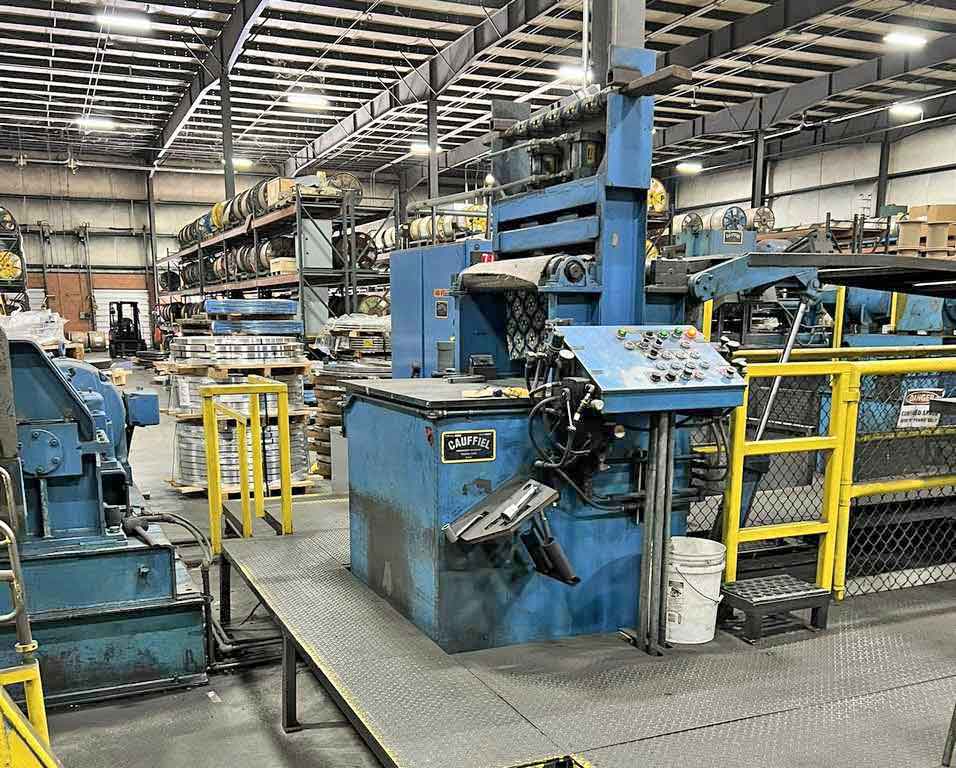

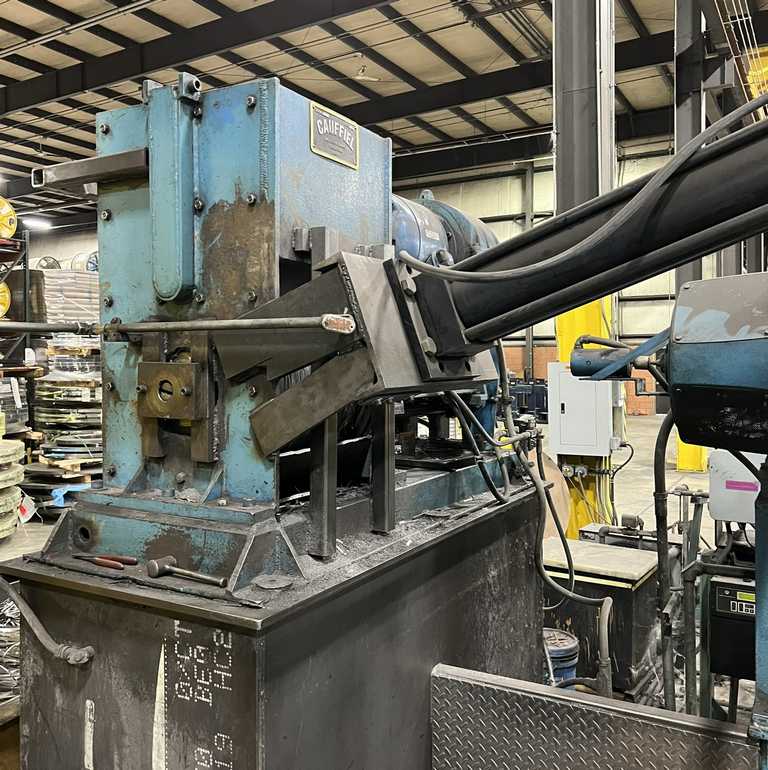

-Tension Stand: Cauffiel
Air Cylinder Pad Tension Operation
Entry and Exit Separator Bars
Overall Size: 72″ L x 58″ W x 108″ High
-Recoiler: Stamco
16″ Diameter x 31″ Face Drum
Manual Grip and Expand
Overarm Separator
25 HP GE DC Motor, 400/2400 RPM, 240 V
2 Speed Reducer
Overall Size: 152″ L x 81″ W x 68″ High
-Exit Coil Car:
Hydraulic Lift and Travel
40″ Wide Bed
9″ from Floor to bottom of “V” Cradle
Self-Contained Hydraulic Unit
Coil Keeper Bars
Overall Size: 76″ L x 46″ W x 52″ High
