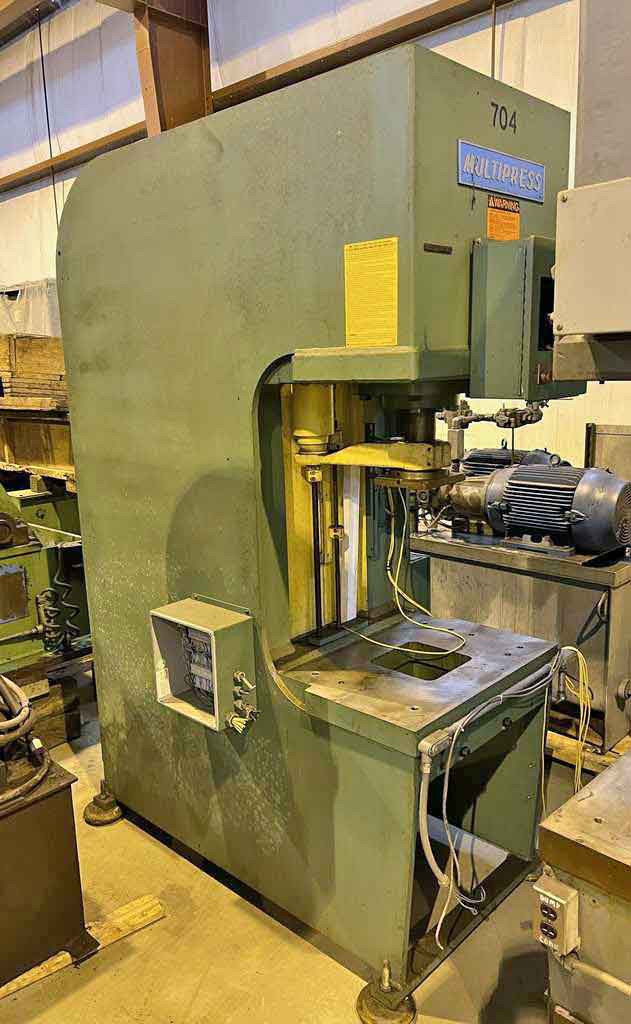

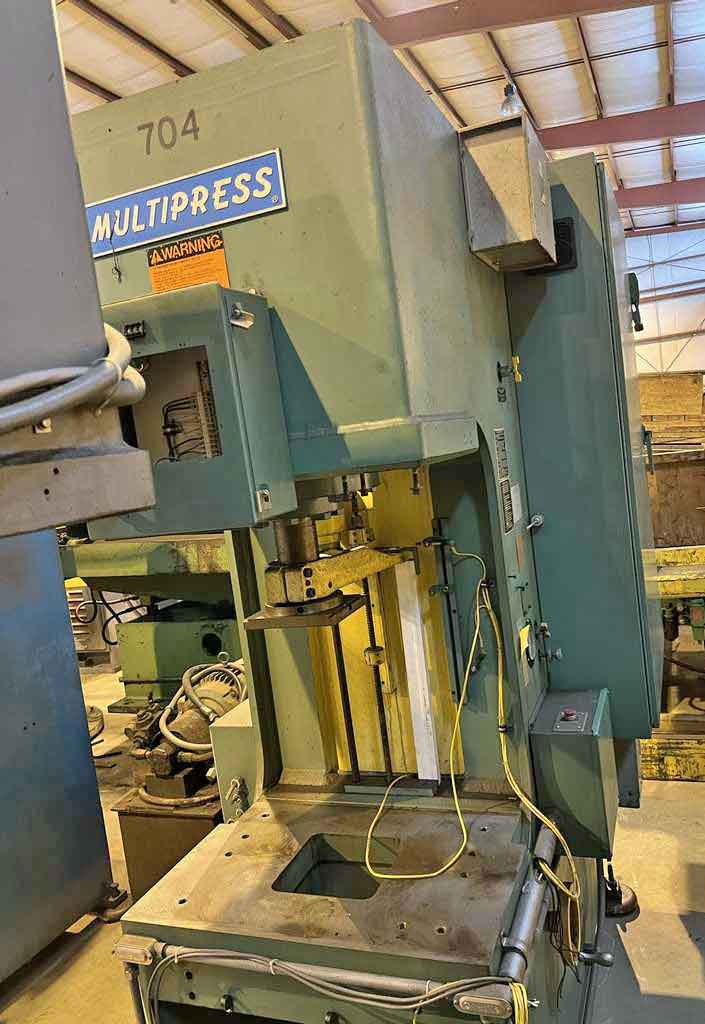

Multipress C-Frame Hydraulic Press

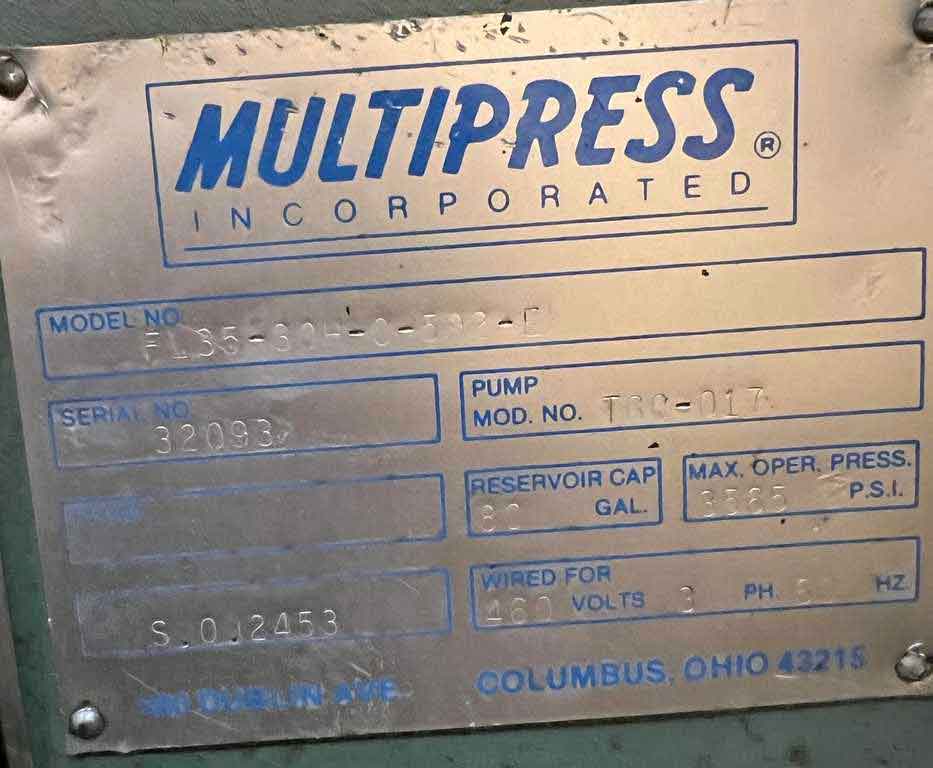

-Model: FL35-30H-C-592-E
-Capacity: 35 Ton
-Cylinder Bore: 5″
-Ram Dia.: 3.5″
-Stroke: 15″
-Daylight: 24.75″
-Throat: 12″
-Ram Speed: 525 IPM Closing
240 IPM Pressing
500 IPM Return
-Bed Size: 30″ L-R x 20″ F-B
-33.5″ from Floor to top of Bed

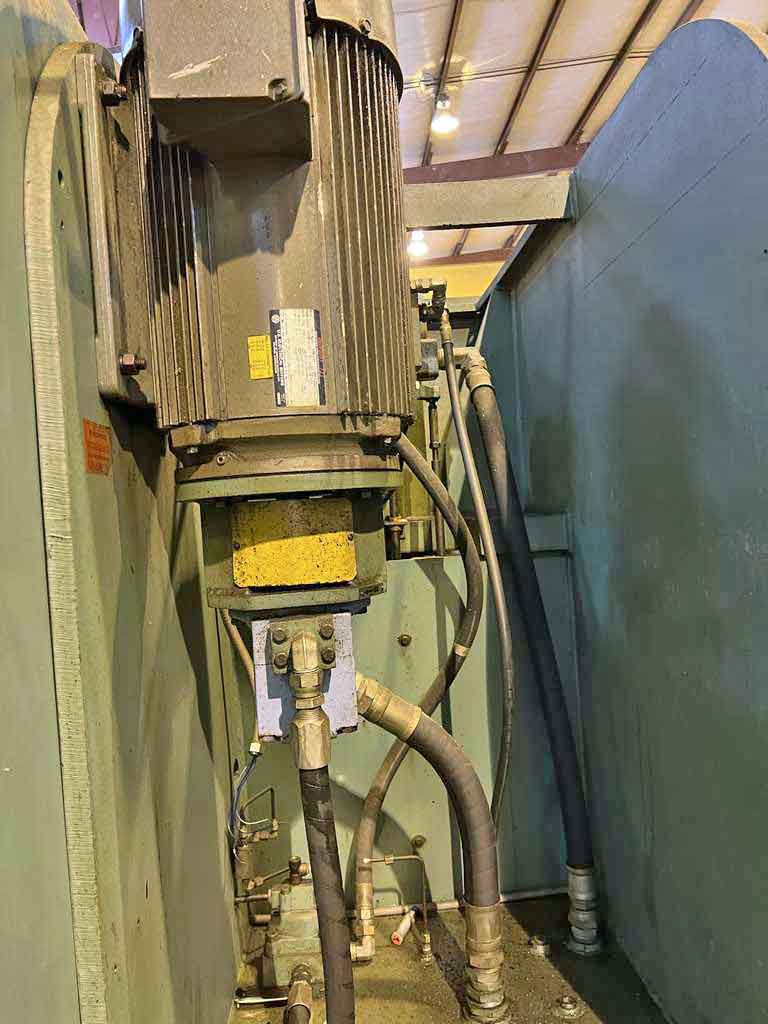

-Self-Contained Hydraulic Power Unit

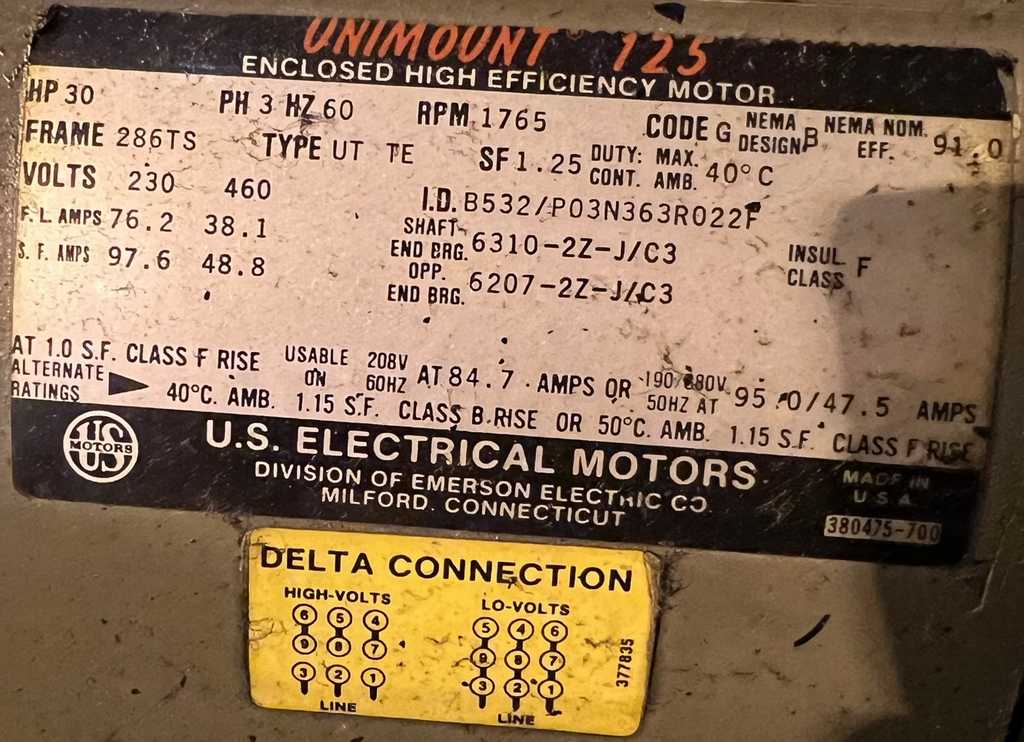

30 HP AC Motor, 1765 RPM, 230/460 V
3565 PSI Max.
80 Gallon Hydraulic Reservoir
-Electrical Schematics Included
-Note: Electrics in Main Panel are not complete
-Overall Size: 81″ L x 47″ W x 98″ High
6,500 lbs.
