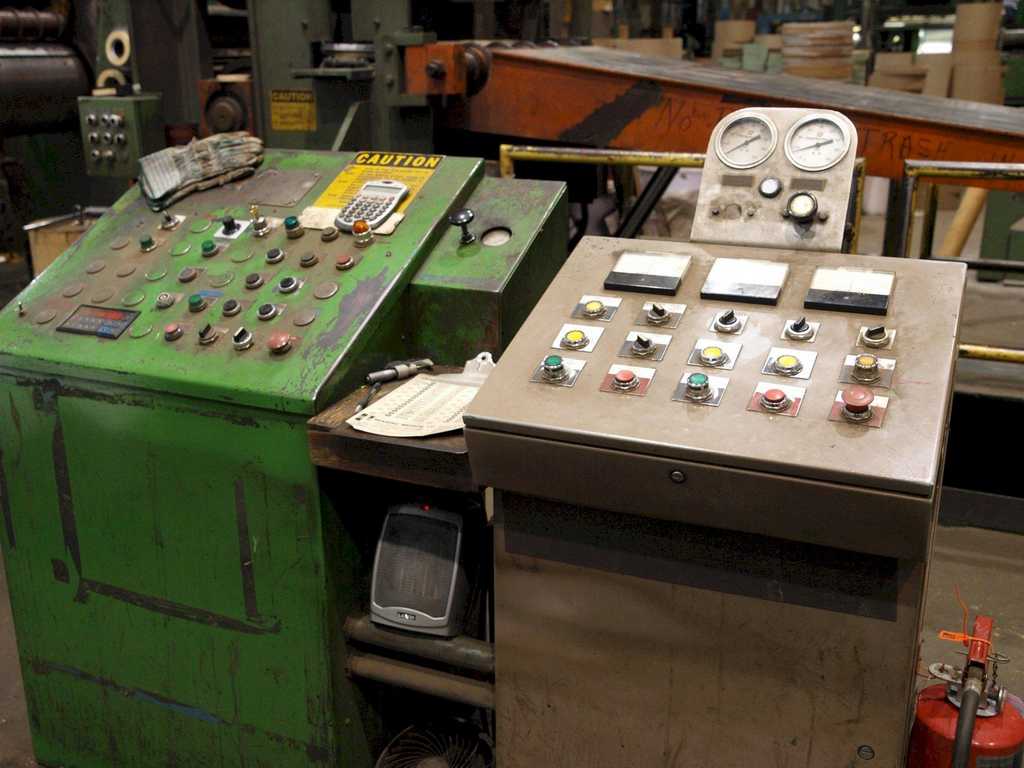

36″ Paxson Driven Loop Slitting Line
Material: CR, Galv, Tin Plate, Silicone, Stainless
Weight Capacity: 30,000 lbs.
Width Capacity: 36″
Thickness Range: 0.006″ to 0.095″
Coil I.D.: 16″ to 20″
Coil OD: 72″ Entry
70″ Exit
Line Speed: 600 to 1200 FPM
Line Direction: Right to Left
Consisting of the following:
-Entry Coil Car:
Pit Type
Self-Contained Hydraulics

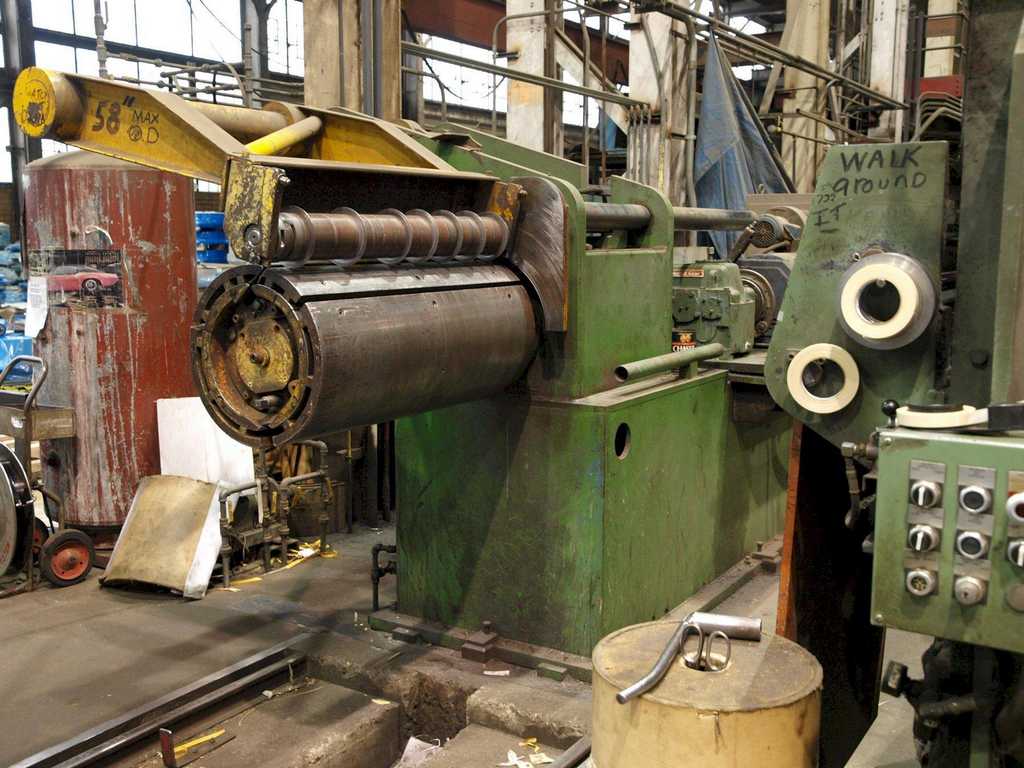

-Uncoiler:
Hydraulic Expansion
16″ – 20″ Coil I.D. Range
Sliding Base
Wichita Brake
AC Motor Threading Drive
-Photoelectric Edge Detector:
-Peeler Table:
Entry Passline Rolls
Entry Side Guides
-Slitter Heads:
(2) Heads (Crane Removal Type)
4.00″ Dia. x 38″ Face Arbors
Parallel Arbor Adjustment
50 HP DC Motor Drive, 1150 to 2300 RPM W/Blower
Right Angle Reducer/Pinion Stand, W/3.625:1 Ratio
-Paxson Scrap Winder:
Hydraulic Motor Drive
Push button scrap ball dump
Hydraulic level wind
24″ W x 30″ Dia. Capacity scrap ball
-Pit Cross Over Table:
-Tension Stand: Royalton
Combination Roll and Pad Type
Pad unit, hyd. cyl. raise and lower
Tension by air bag on the bottom
16″ dia. x 40″ face urethane tension rolls
Dual air brakes, drive shafts to the rolls
Entry Separator Tooling Bar
Exit feed up table
Exit steel pass line rolls, 42″ face
-Recoiler:
16″ Dia. Drum with Pads for 20″ Dia.
Manual Clamp and Expansion
70″ Max. O.D.
Hydraulic Pushoff
Overarm Separator
50 HP DC Motor, 850 to 2500 RPM, W/Blower
14.6:1 reducer ratio

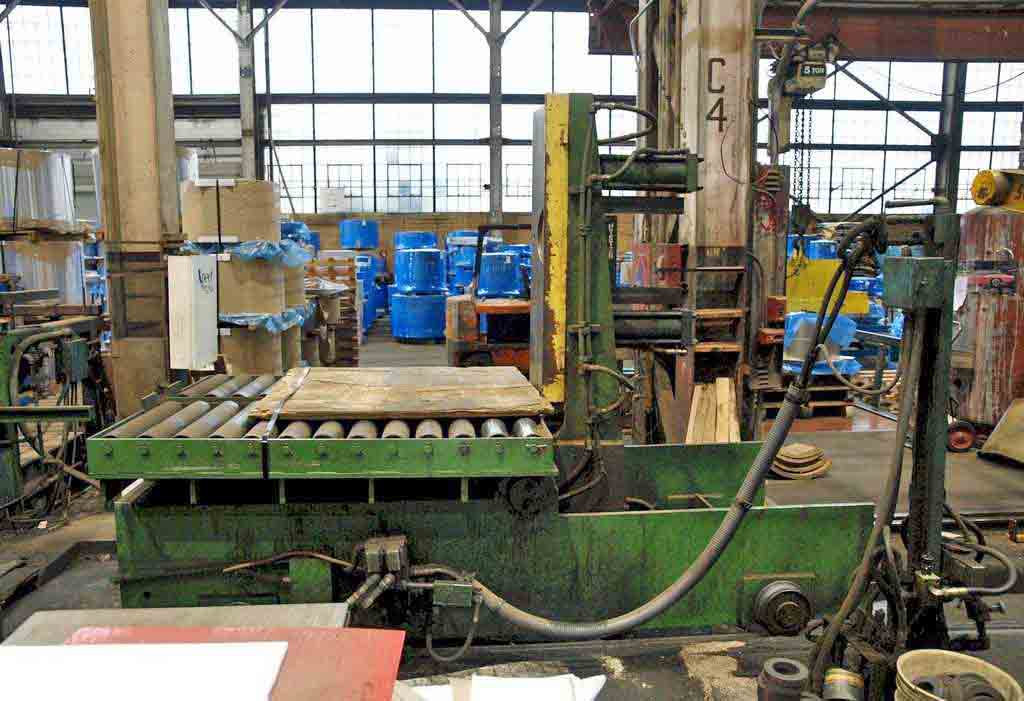

-Exit Coil Car/Upender:
Hydraulic Cylinder for Tipping
“V” Cradle, 51″ long
Twin Hydraulic Cylinder W/16″ Lift
60″ wide x 66″ long Conveyor Rolls on Flat side
5″ slot down the middle of the conveyor rolls
Hydraulic Motor Driven for Traversing |
