YEAR: 1968
36″ Paxson Slitting Line
Consisting of the following:
-Paxson Uncoiler
Capacity: 24,000 lbs. x 36″ Wide
Type: 4 Segment Expanding Mandrel
Type Expansion: Hydraulic Wedge
Mandrel Expansion: 17″ – 21″ (432mm – 533mm)
Mandrel Face Width: 36″ (914mm)
AC Motor Threading Drive: 3 HP, 1170 RPM, 230/460 V
Self-Contained Hydraulics: 7.5 HP, 1760 RPM, 230/460 V
Water Cooled Brake: Eaton Airflex
Sliding Base:
Passline Height: 44.5″ from Floor to center of Mandrel
Overall Size: 138″ L x 67″ W x 68″ High

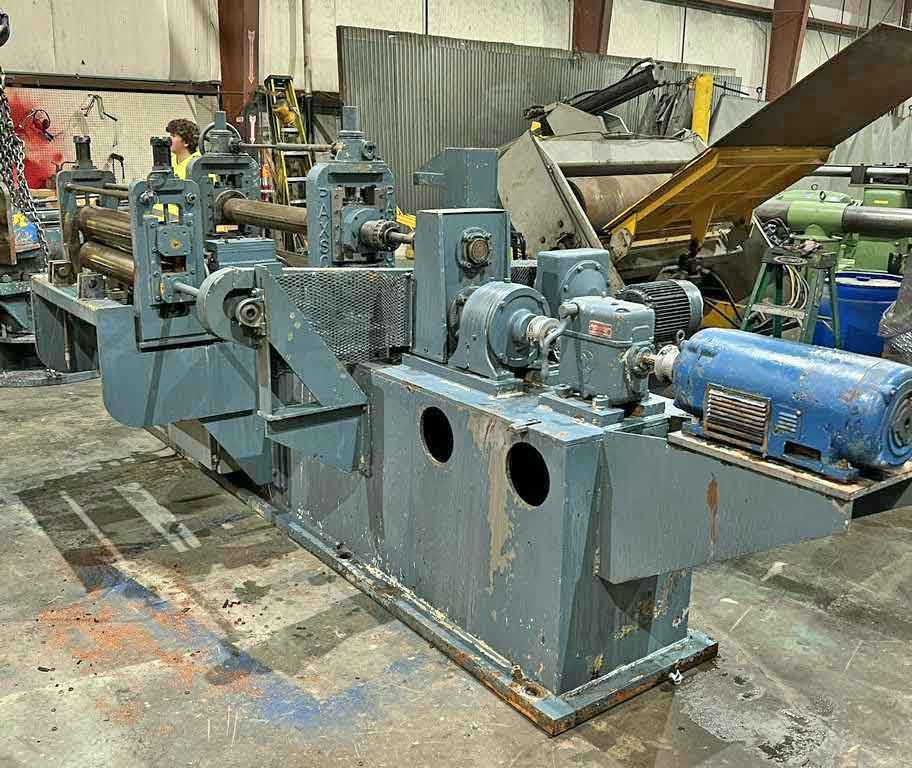

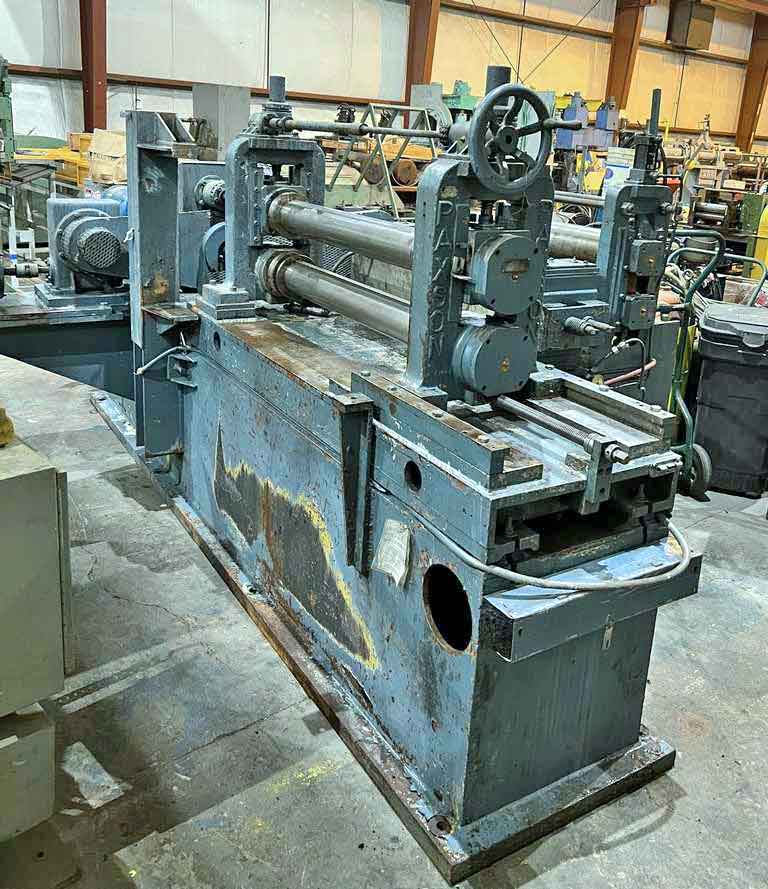

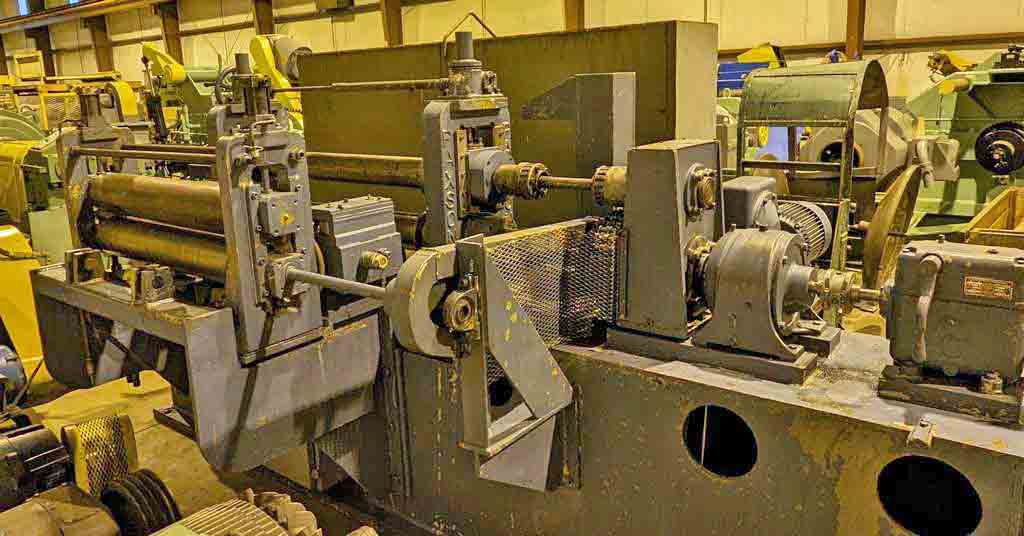

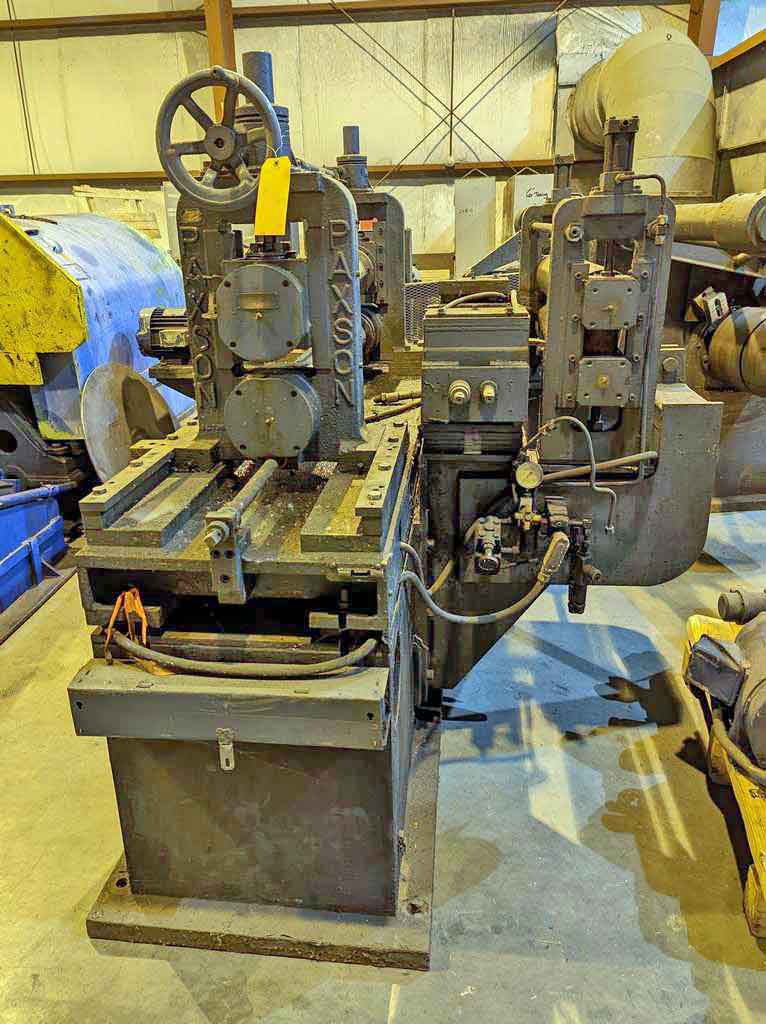

-Slitter Head:
5.00″ Dia. x 37″ Face Arbors
Entry Driven Pinch Rolls
Entry Side Guides
Manual Adjustment
Parallel Arbor Adjustment
7.5 HP AC Motor Threading Drive, 1745 RPM, 230/460 V
5 HP Eaton Dynamatic Ajusto-Spede Drive
1755 RPM, 230/460 V
Thru Drive-All Model DAU 512 Transmission w/1:1 and 3:1 ratios
Line O Power In-Line Reducer w/7.59:1 ratio
Overall Size: 180″ L x 94″ W x 78″ High
12,000 lbs.

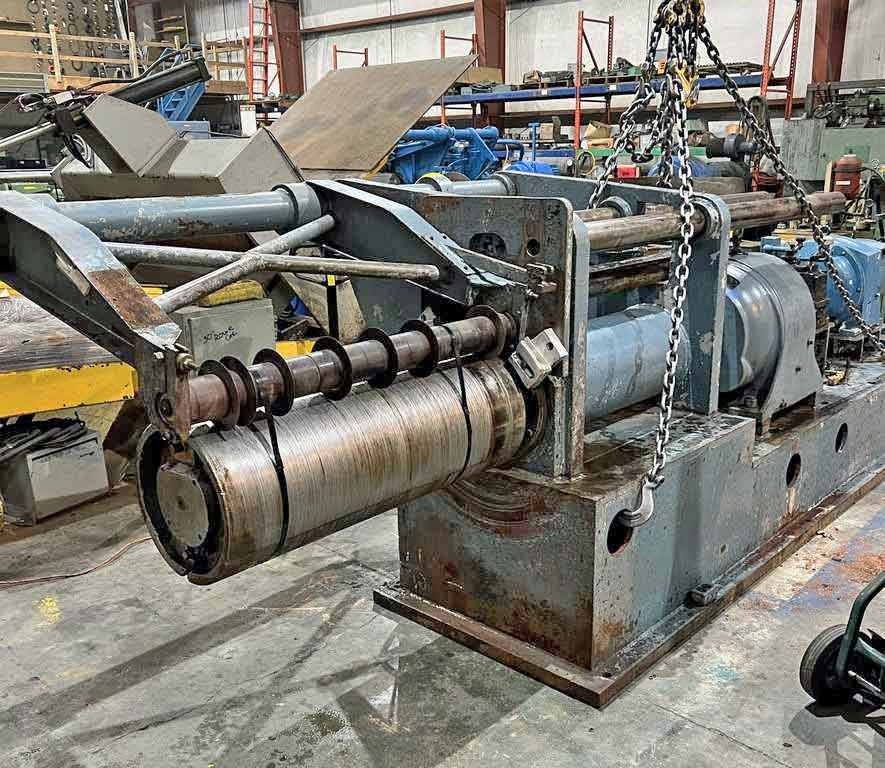

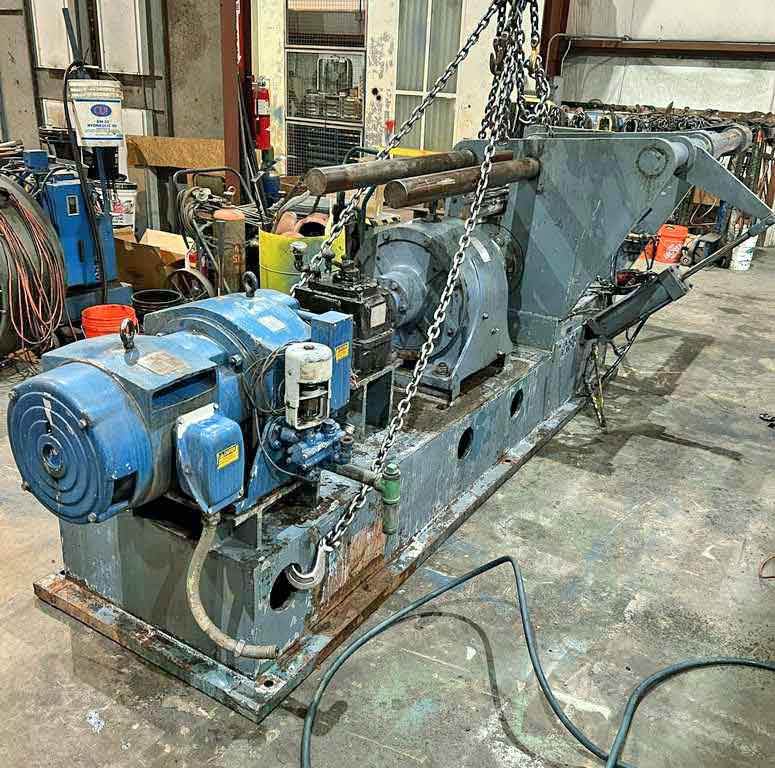

-Recoiler:
16″ Diameter x 42″ Face Drum
7.5″ Dia. Main Shaft at Forward Bearing
Manual Clamp and Expansion
Hydraulic Pushoff
Overarm Separator
40 HP AC Motor, 1775 RPM, 230/460 V
Eaton Dynamatic Eddy Current V.S. Drive
Drive-All DAS 896 2 Speed Transmission w/1:1 and 3:1 Ratios
Foote-Jones Reducer w/14:1 Ratio
Passline: 34″ from Floor to center of Drum
Overall Size: 198″ L x 74″ W x 72″ High
13,750 Lbs.
-1 Arm Exit Turnstile:
Capacity: 10,000# x 36″ Wide Coils
42″ Long Arm
C-Hook Slot: 4.5″ Wide x 12.5″ High
4″ Bore Hydraulic Pushoff Cylinder
Manual Rotation
41″ from Floor to Top of Arm
Overall Size: 99″ L x 48″ W x 55″ High
5,800 lbs.
-Operators Control Panel:
-Slitter Tooling:
-Less Electrics:
-Line Direction: Right to Left |
