36″ x 5.00″ x 20,000 Lb. SPM Slitting Line
Consisting of:
-Uncoiler:
Hydraulic Expansion
16″ – 20″ I.D. Range w/Pads for 24″
46″ Face (4) Segment Mandrel
Sliding Base
Water Cooled Brake
Threading Drive

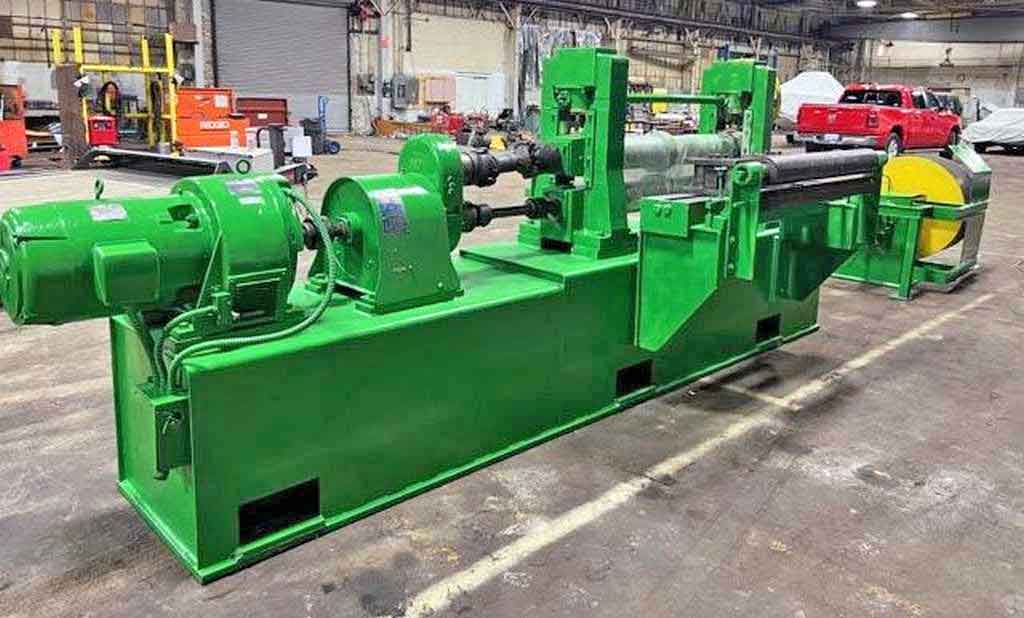

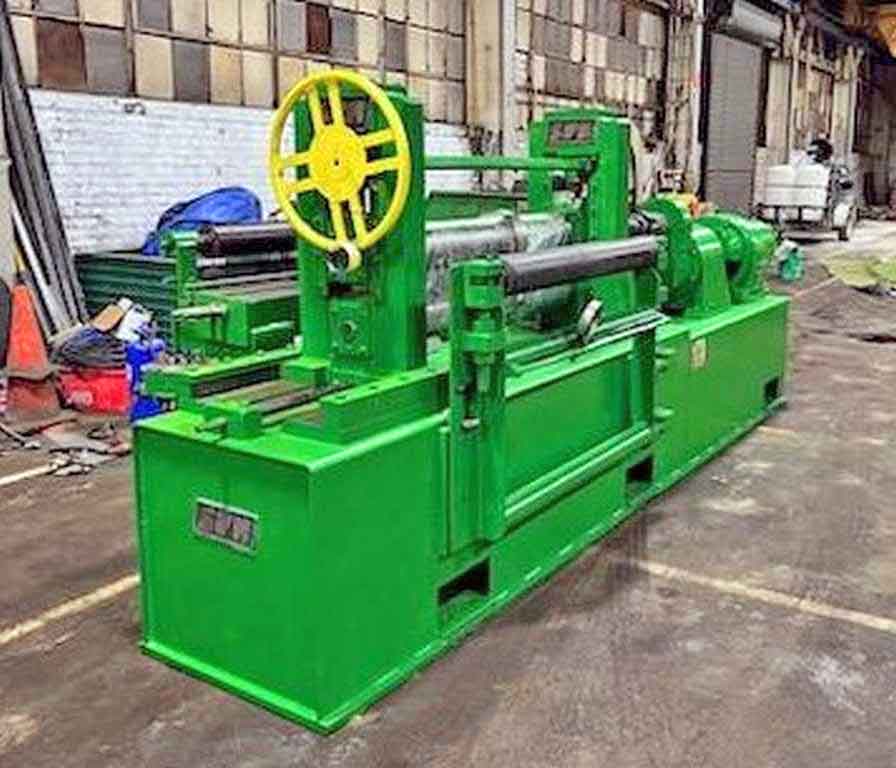

-Slitter Head:
5″ Dia. Arbors
Entry Passline Roll
Entry Side Guides
Parallel Arbor Adjustment
Exit Passline Roll
AC Gearmotor Threading Drive

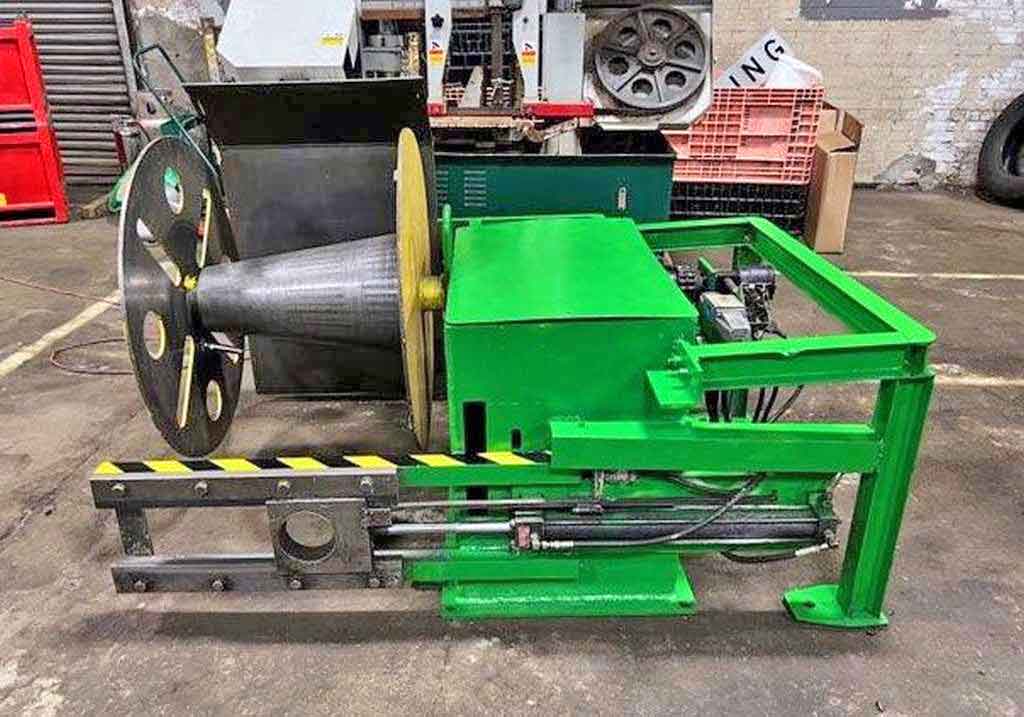

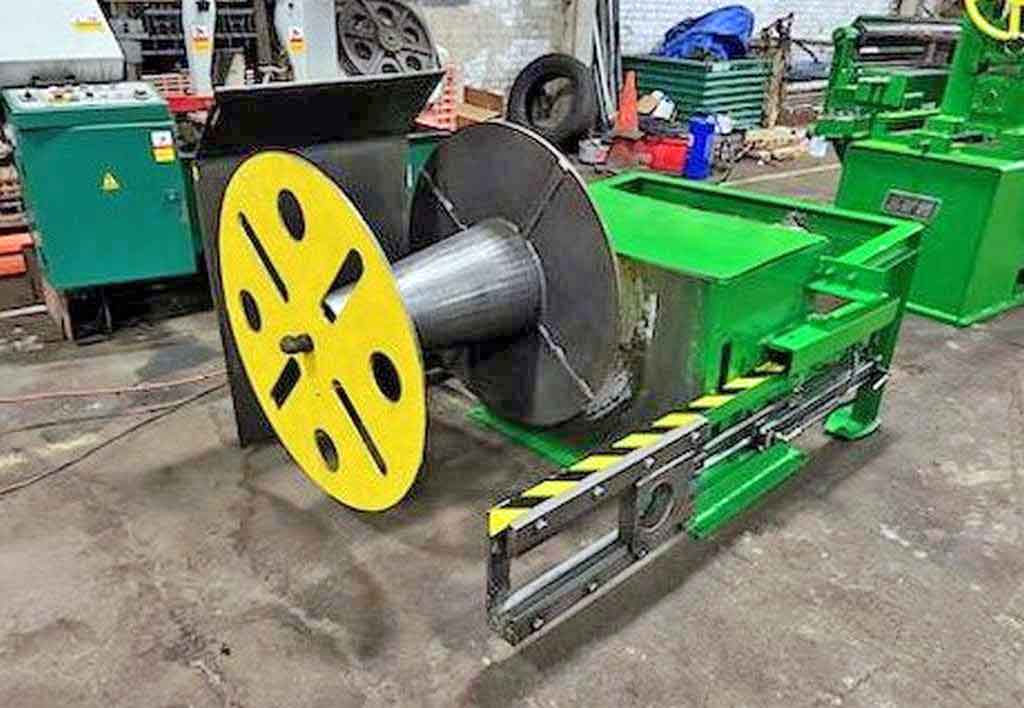

-Scrap Winder:
Manual Scrap Ball Removal
Oscillate Wind
Hydraulic Motor Driven

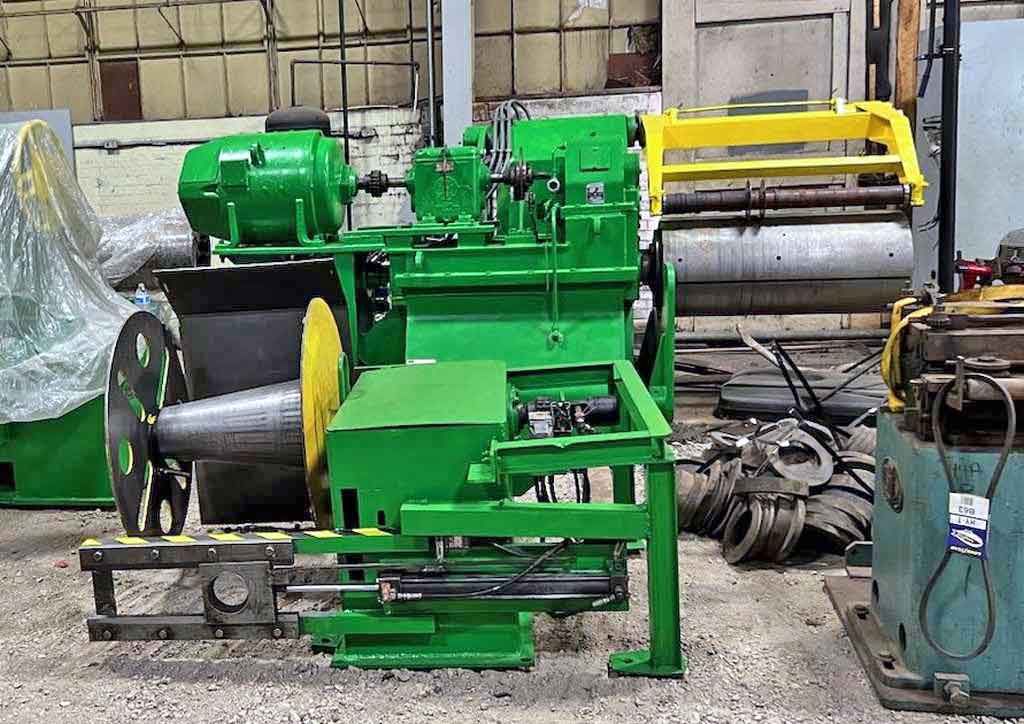

-Recoiler:

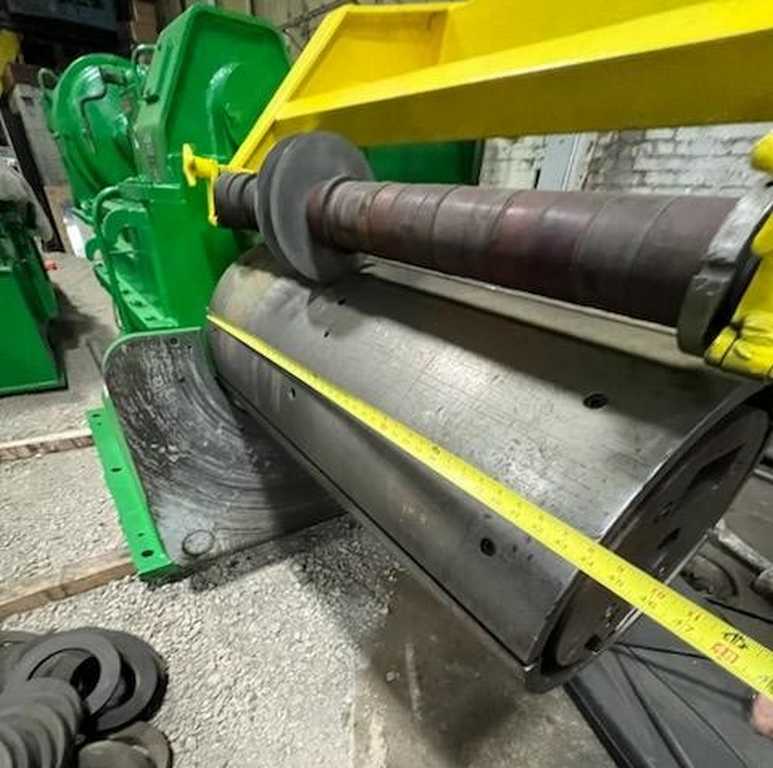

20″ Dia. x 44″ Face Drum
Powered Clamp and Expansion
Hydraulic Pushoff
Overarm Separator

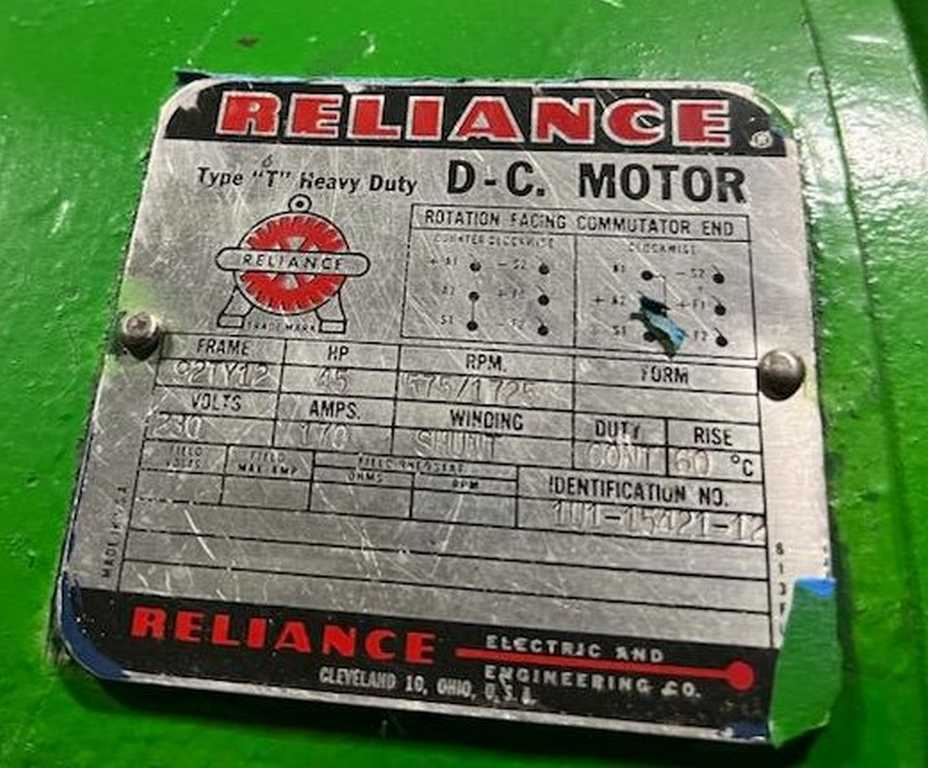

45 HP Reliance DC Motor, 575/1725 RPM, 230 V
-Line Direction: Left to Right
-Removed and in Storage
