36″ x 7.00″ Arbor Wean Slitting Line
Weight Capacity: 20,000lb
Coil ID: 20″
Coil Width: 36″
Line Speed: 250 FPM

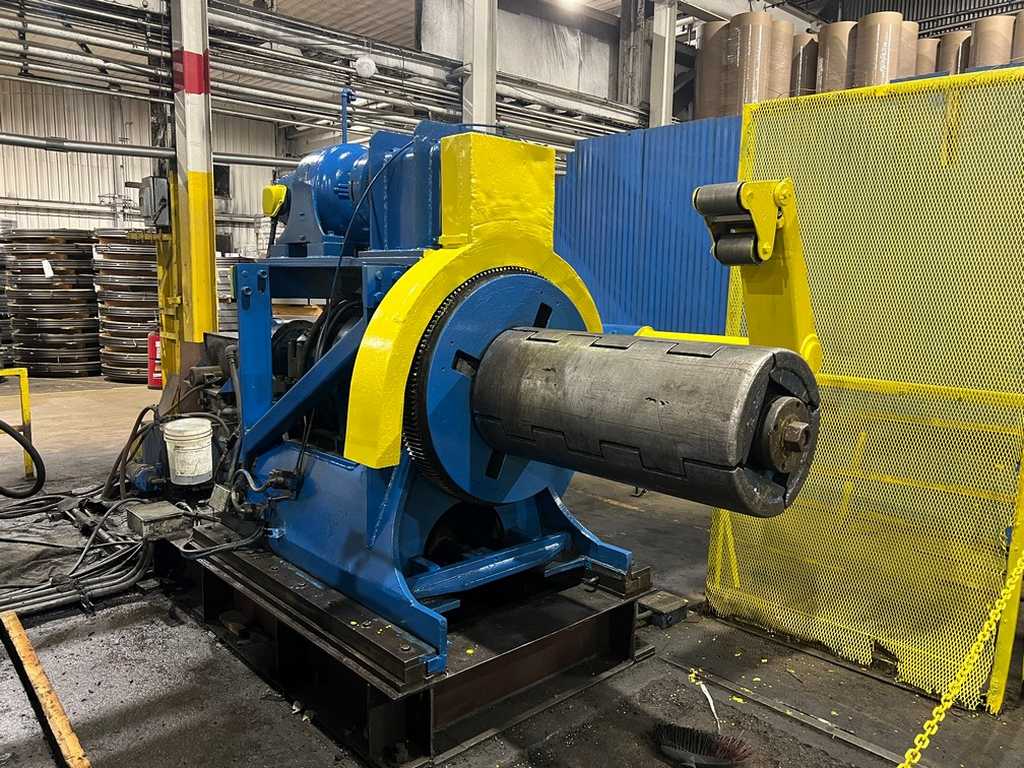

-Mandrel Uncoiler
Hold Down Roll
Hydraulic Expansion
Slide Base
Water Cooled Brake

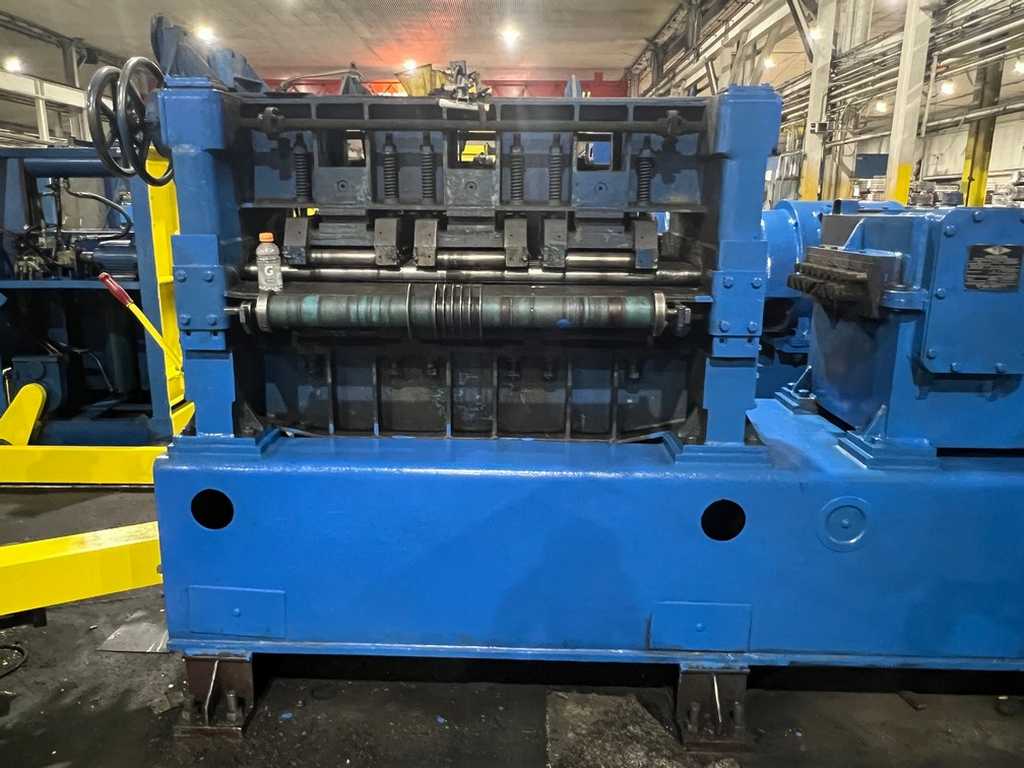

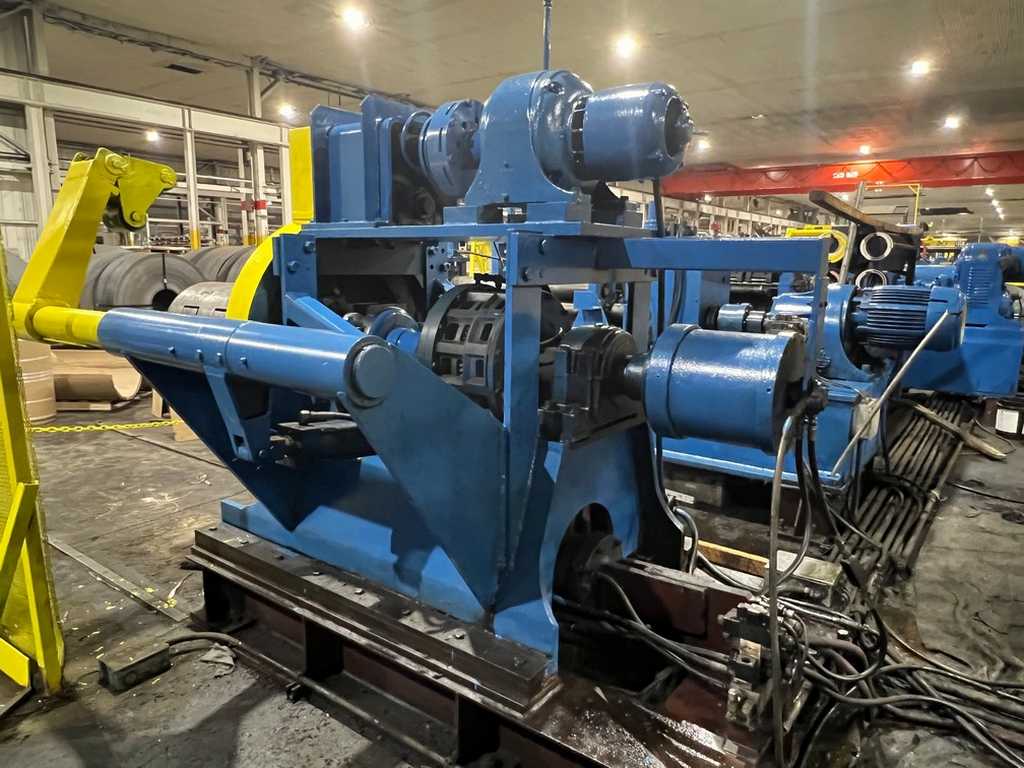

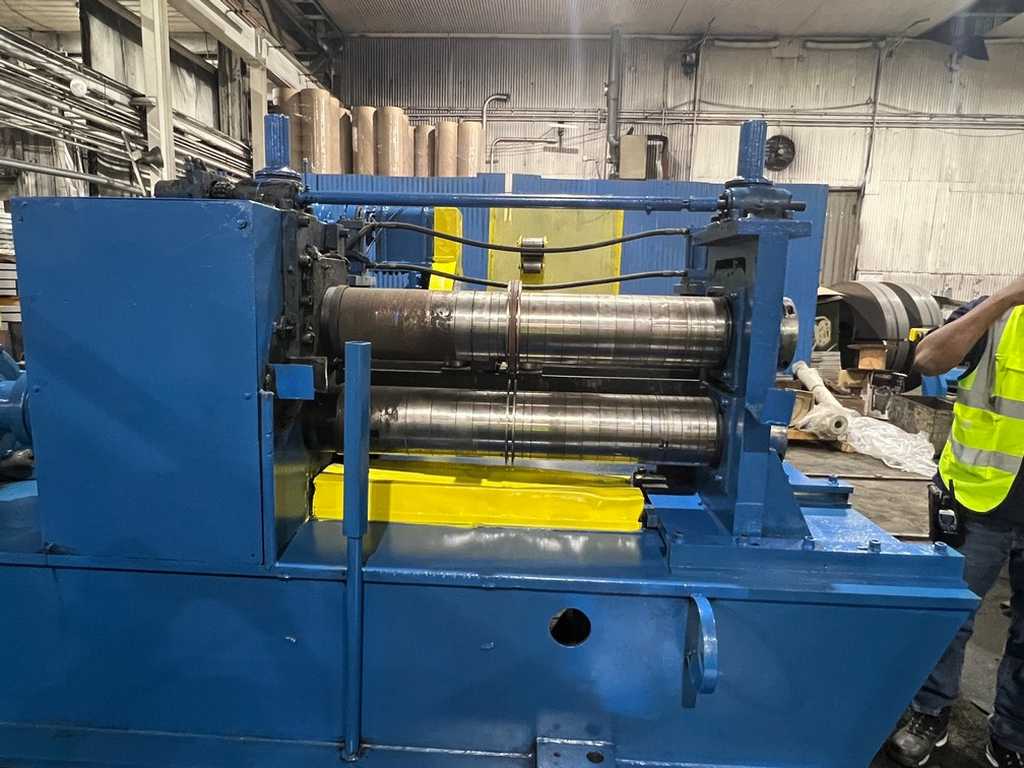

-Slitter Head
7″ Dia. Arbor x 42″ Face
Entry Pinch Roll
Edge Guides
AC Motor Threading Drive

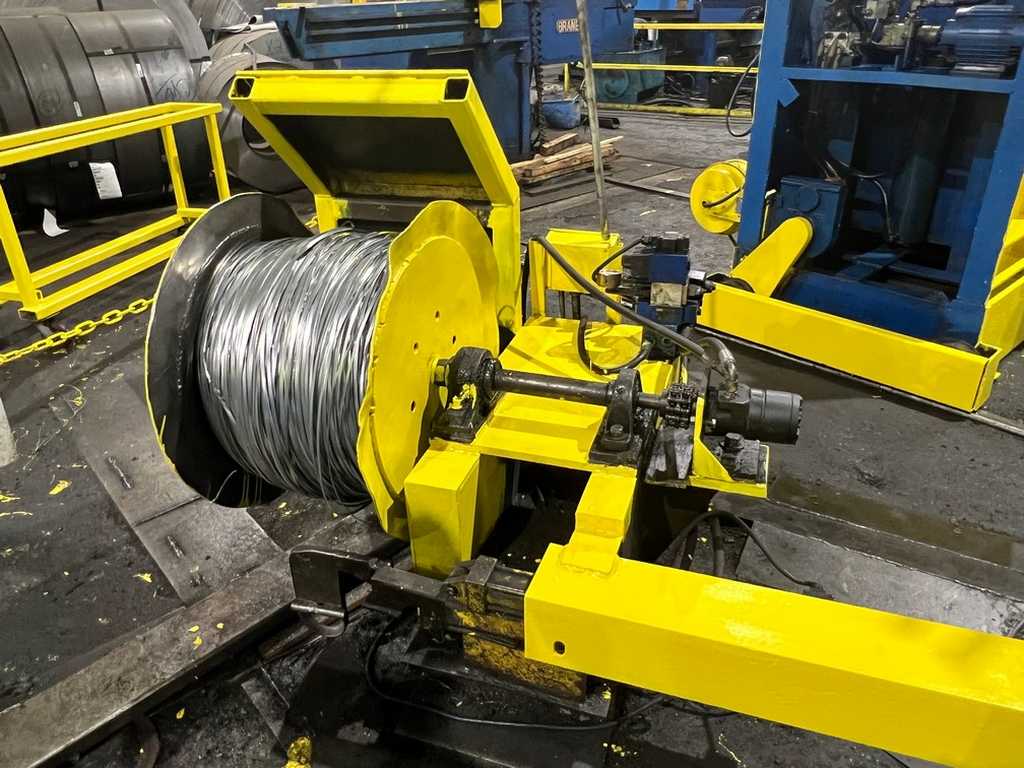

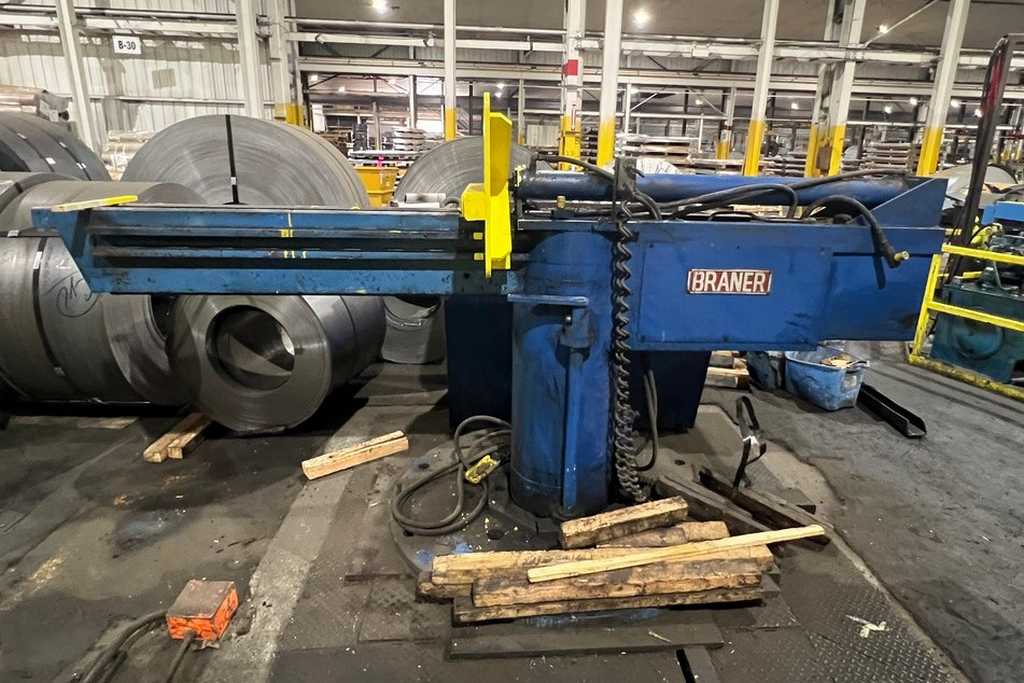

-Scrap Winder
Hydraulic Oscillation
Manual Scrap Ball Removal

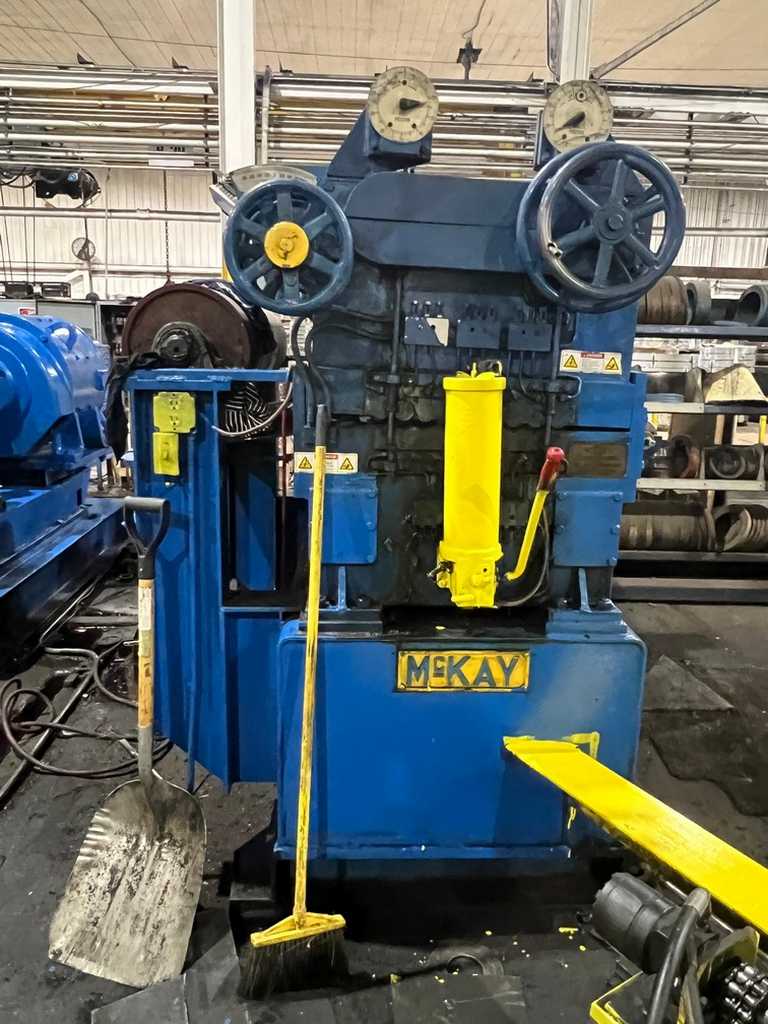

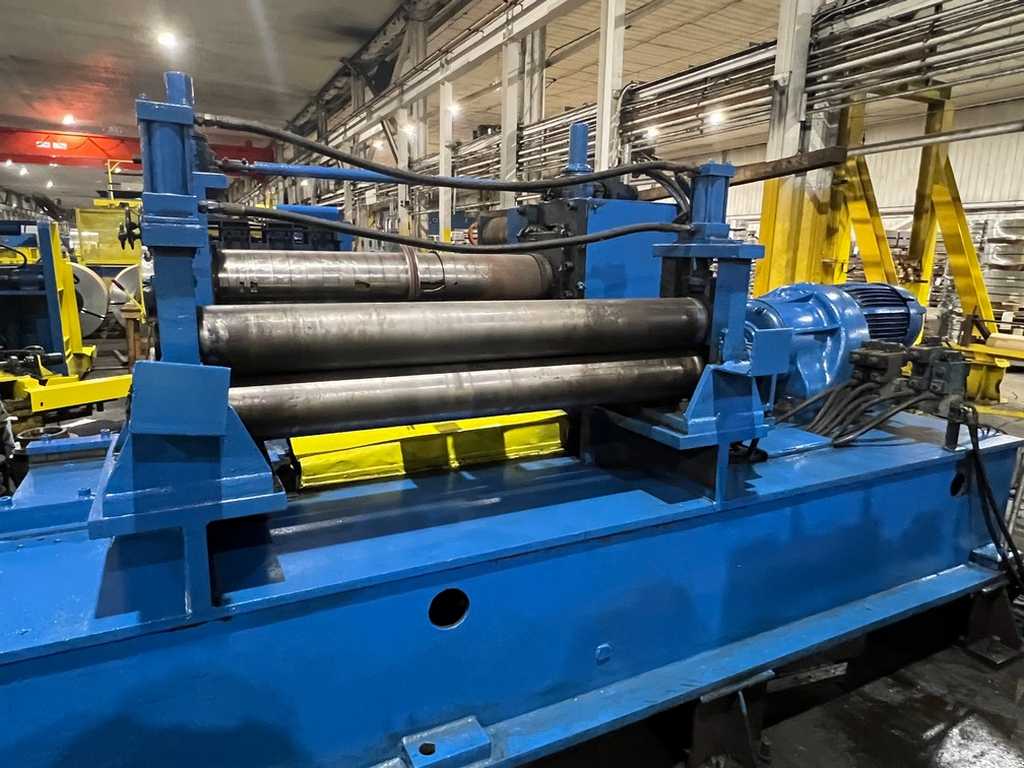

-McKay Flattener
17 Rolls, 9 over 8
Pull Thru
Entry Separator Bar

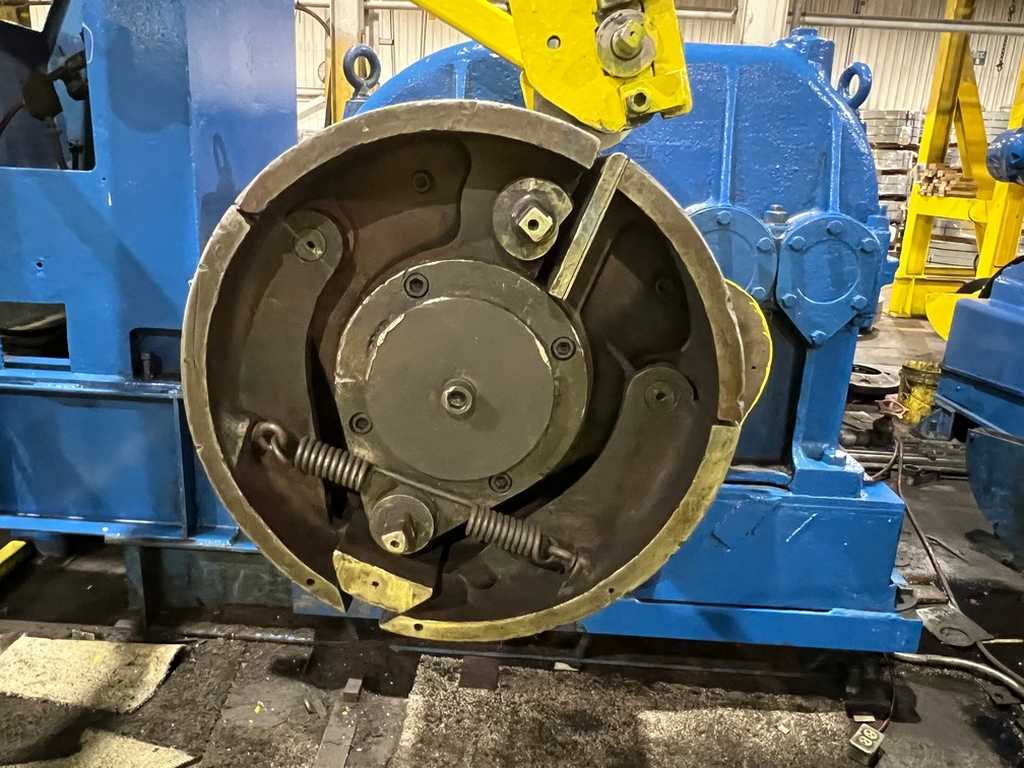

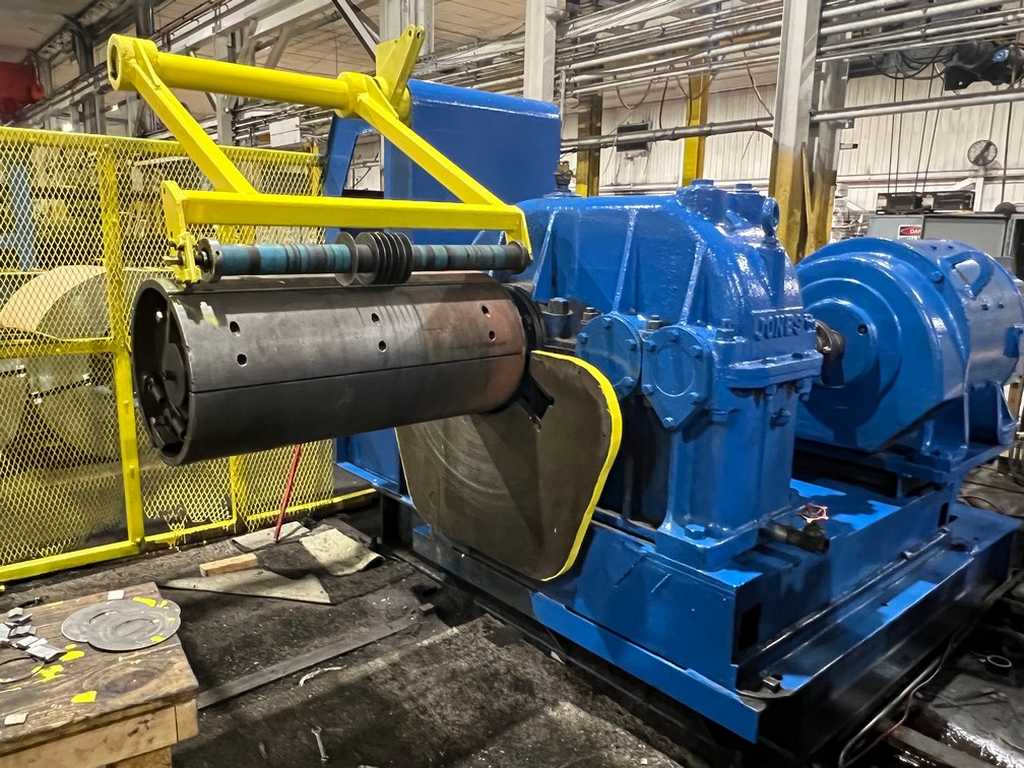

-Recoiler
20″ Dia. x 42″ Face Drum
Vertical Gripper
Manual Grip and Expand
Overarm Separator

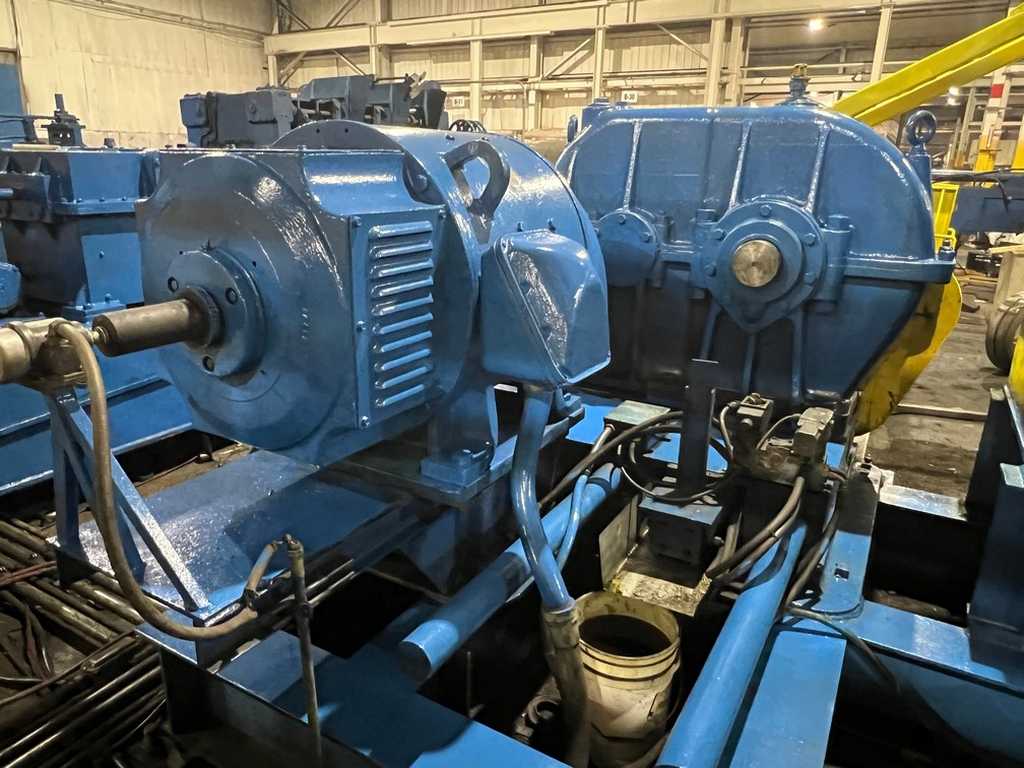

60 HP DC Motor, 300/1800 RPM, 240 V

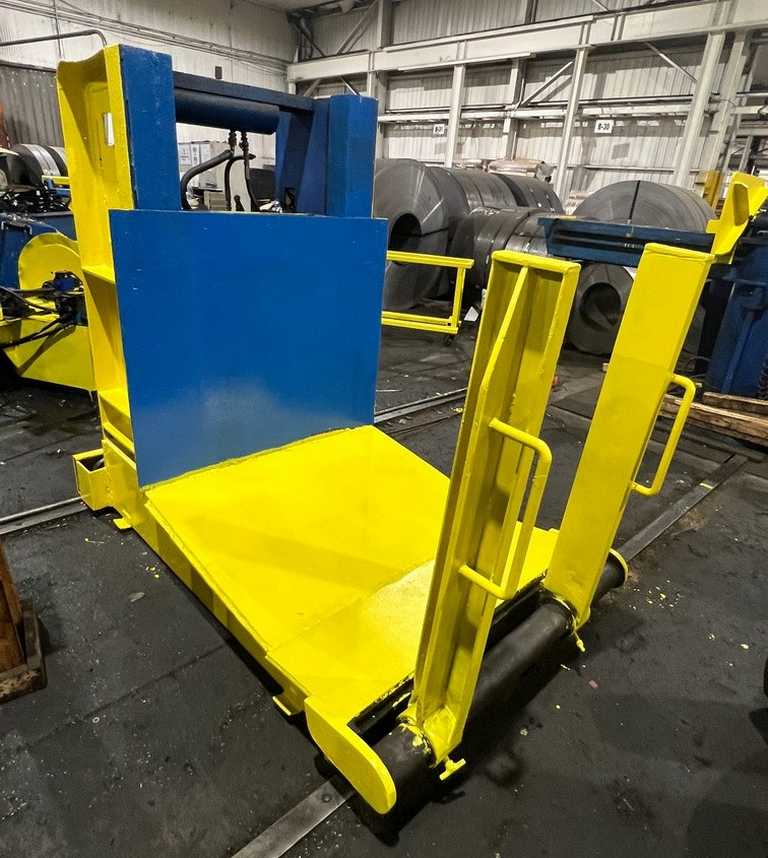

-L Type Coil Car
Keeper Arms
Self-Contained
Hydraulic Lift and Travel
-1 Arm Turnstile
C-Hook Arm
Hydraulic Push Off
