YEAR: 1965
Braner Slitting Line
-48″ Wide
-20,000 lb. Capacity
-Line Direction: Left to Right
Consisting of the following:

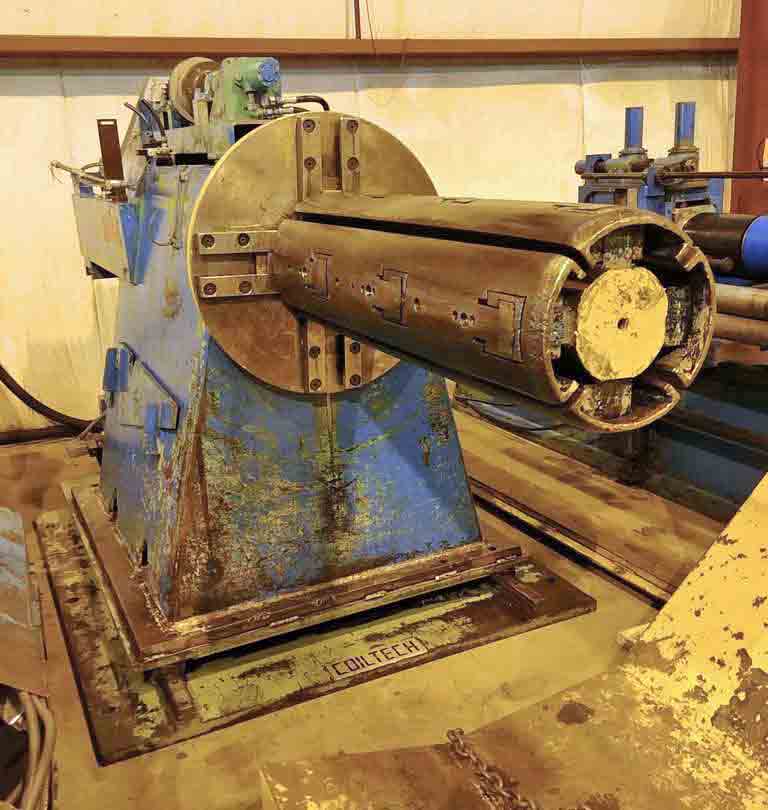

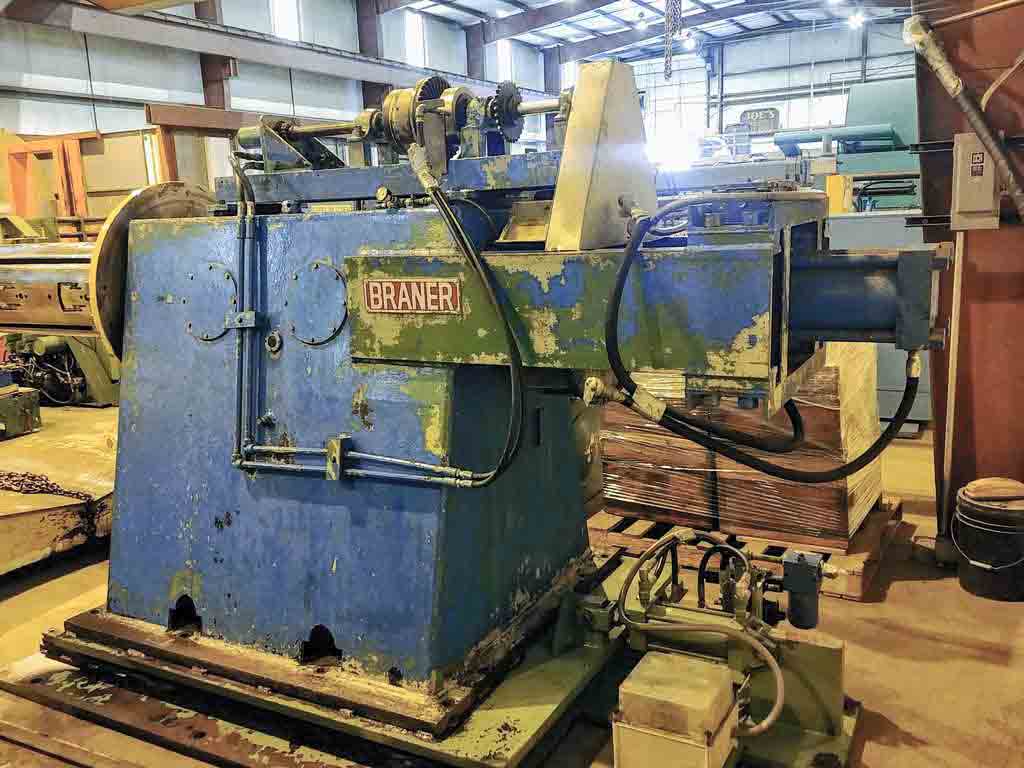

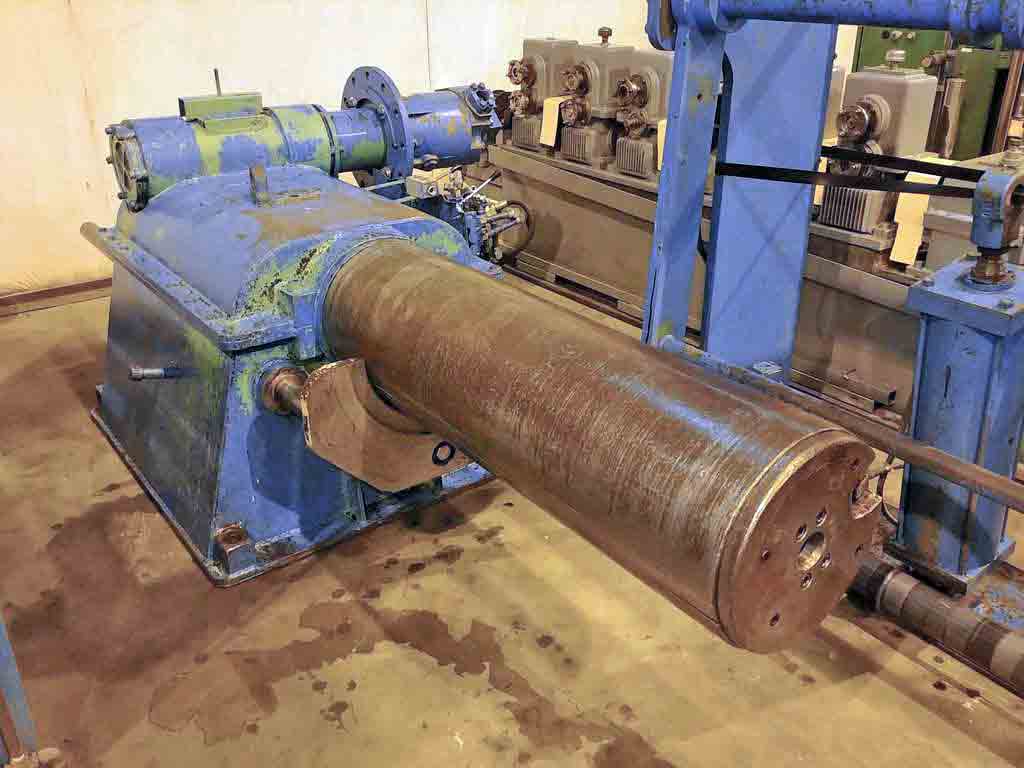

-Mandrel Uncoiler: Braner
(4) Segment Mandrel
51″ Face Mandrel
Hydraulic Expansion Range: 15″ – 20.5″
Coil I.D. Range: 16″ – 20″
Sliding Base
Hydraulic Motor Feedup w/Air Clutch
Fawick Air Brake
Passline: 51.5″ from Floor to center of Mandrel
Base Plate: 67″ L – R x 78″ F – B
Overall Size: 161″ L x 68″ W x 78″ High

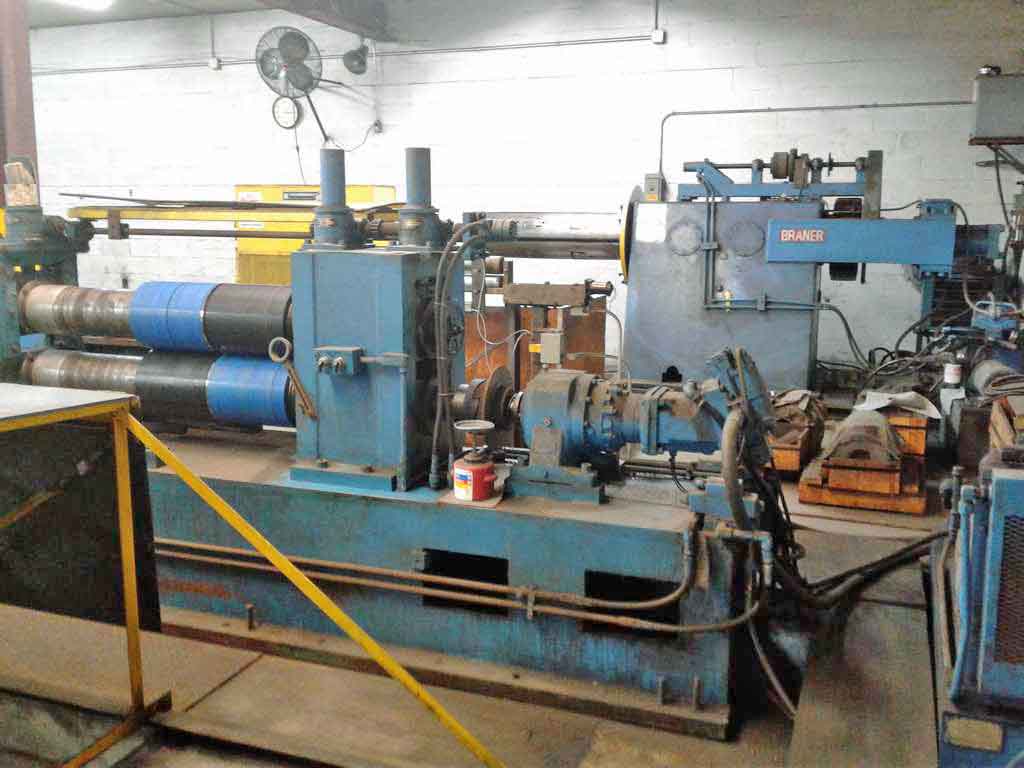

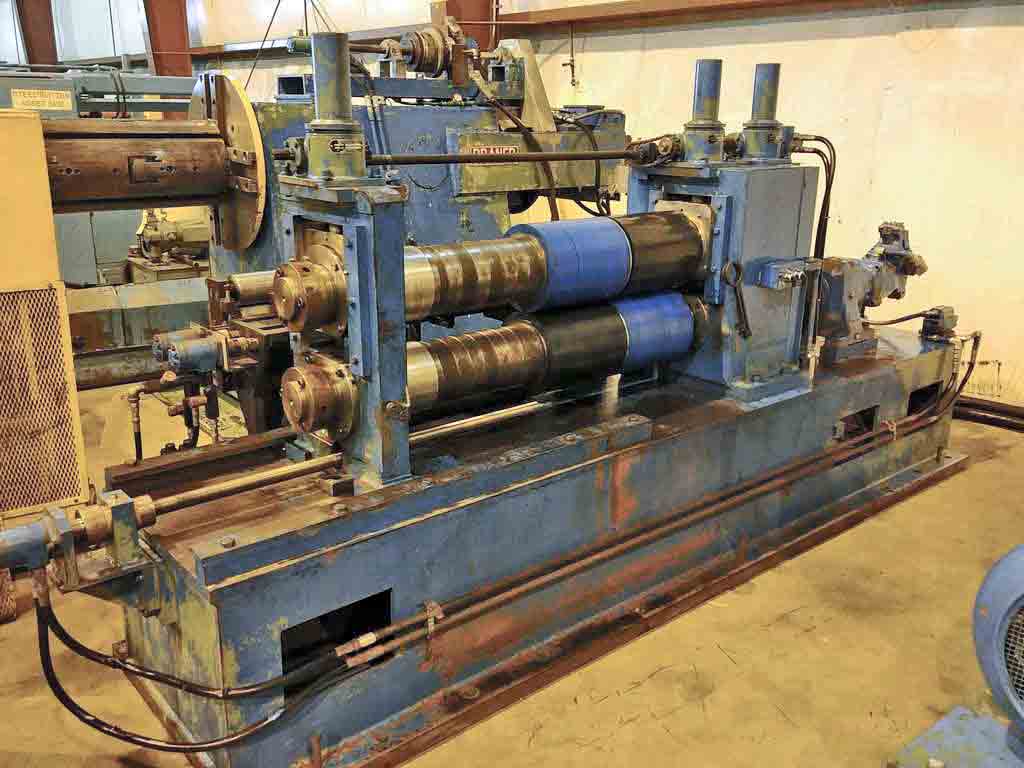

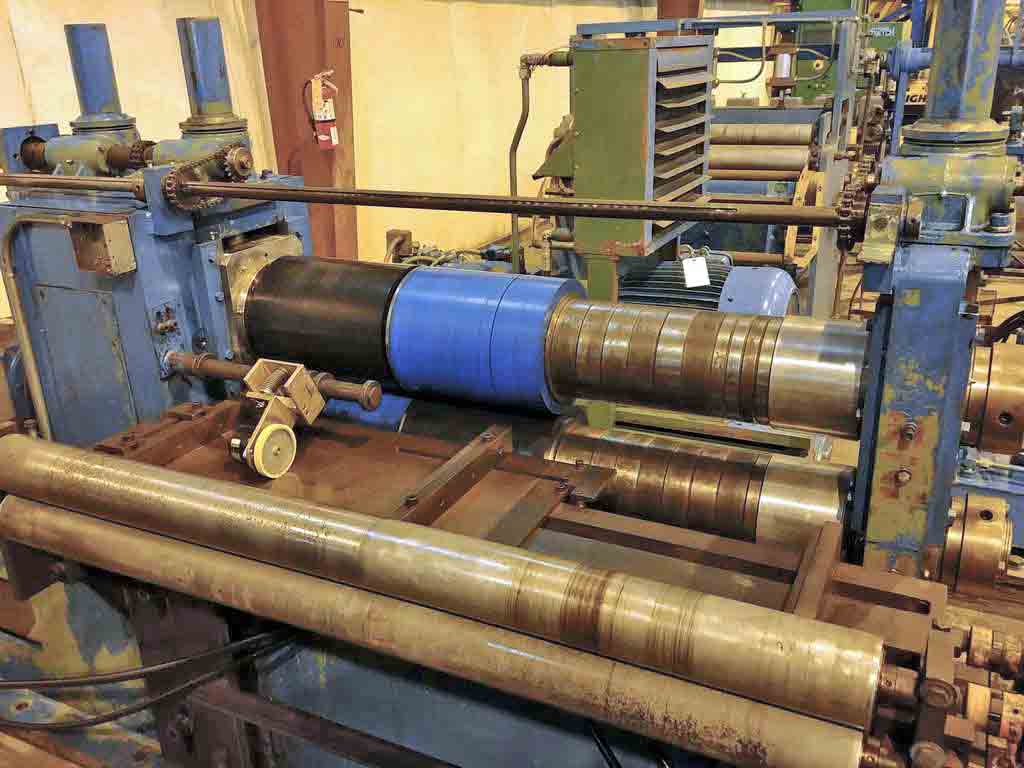

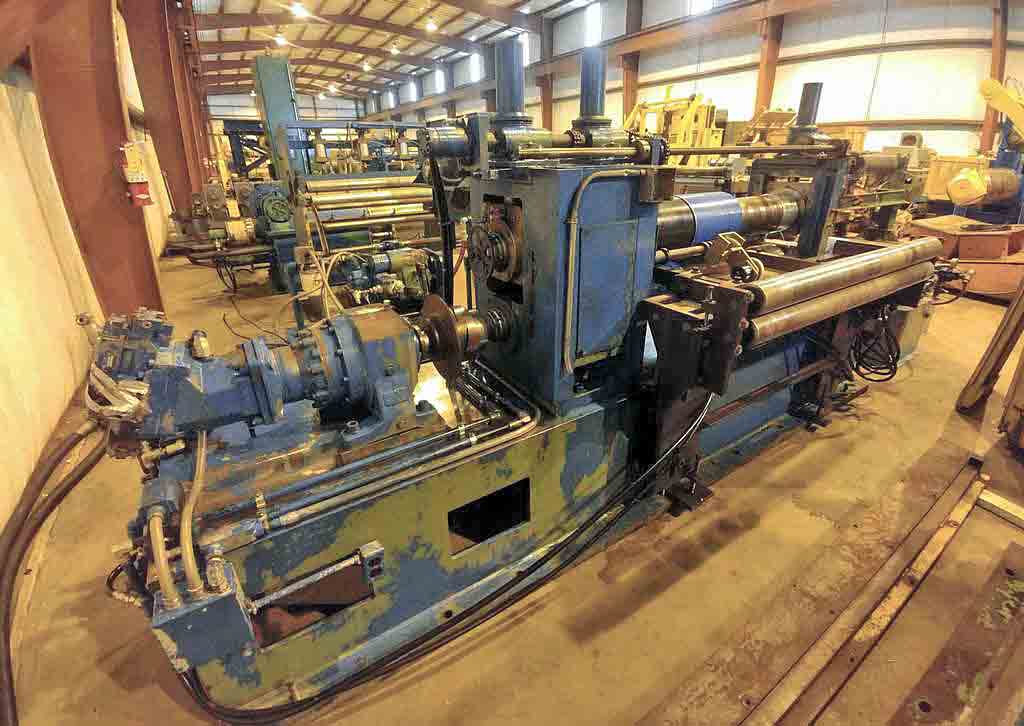

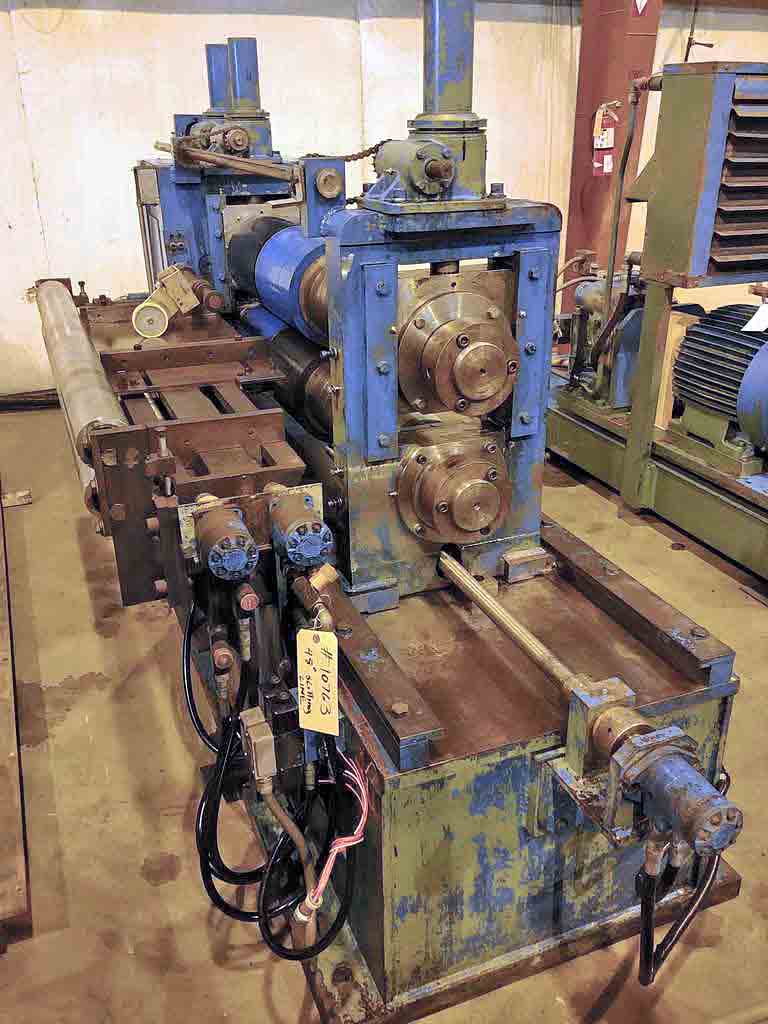

-Slitter Head: New in 1985
4.75″ Dia. x 50″ Face Arbors
Outboard slides in to 24″ wide
Entry Passline Rolls
4″ Dia. x 56″ Face
Entry Side Guides
Hydraulic Motor Adjustment
Parallel Arbor Adjustment
Outboard Support moves in to approx. 26″ for heavier gauge slitting
Hydraulic Motor Driven
Passline: 38″
Overall Size: 157″ L x 48″ W x 69″ High
-(2) Scrap Winders:
Manual Scrap Ball removal
Air Motor Driven
Less Oscillate Wind Assembly
-Recoiler:
16″ Dia. x 52″ Face Drum
Hydraulic Grip and Expand (Gripper Bar Missing)
Hydraulic Pushoff
Hydraulic Drive Motor; Sundstrand Sauer Danfoss
Model 27-3052; S/N 01-HSF-851443
Reducer w/12.5:1 ratio

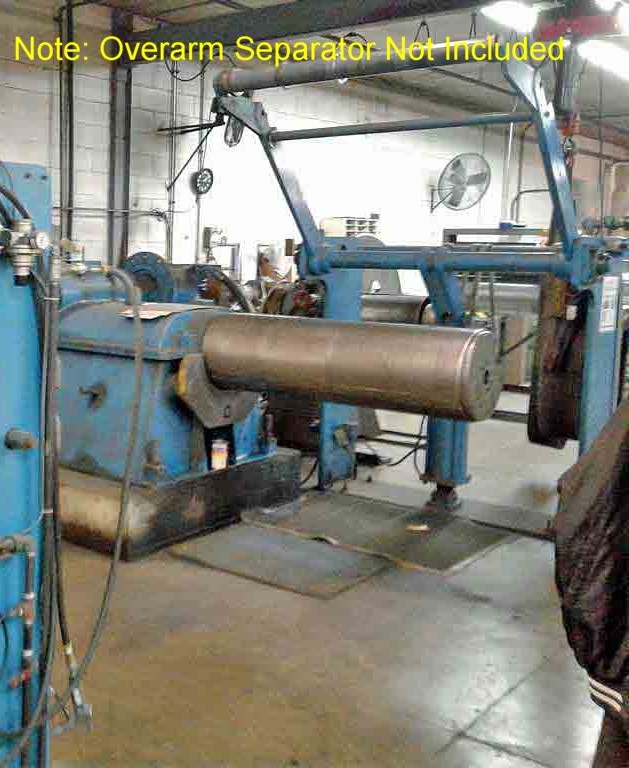

Less Overarm Separator
Passline: 26″ from Floor to center of Drum
Overall Size: 134″ L x 68″ W x 48″ High

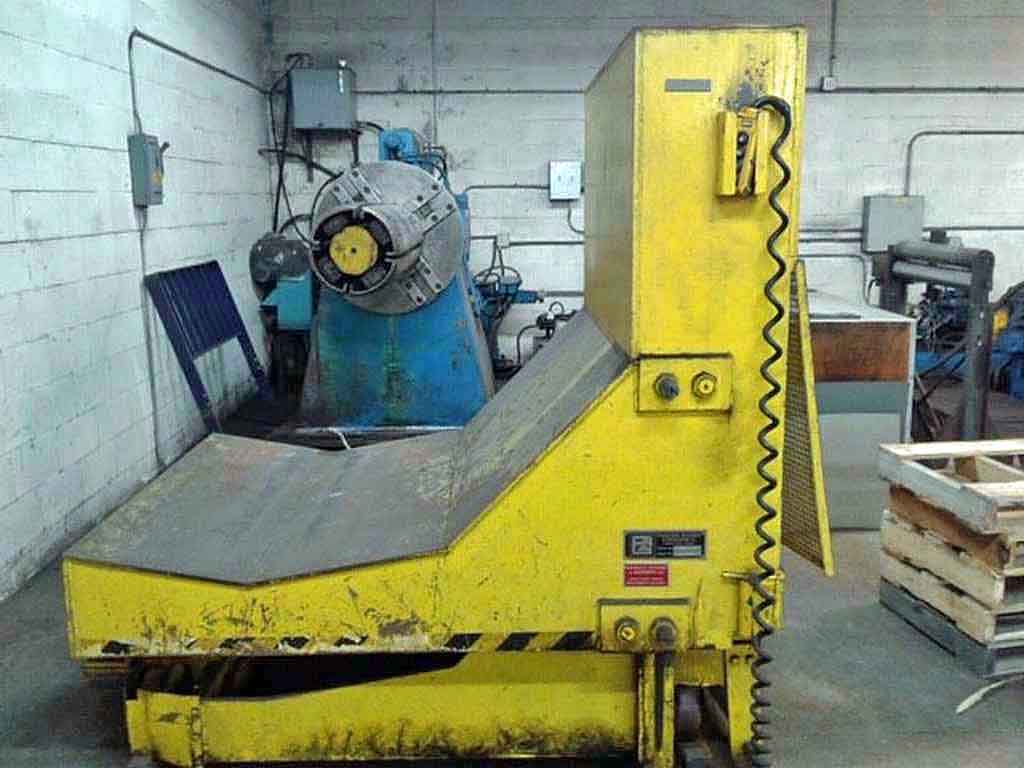

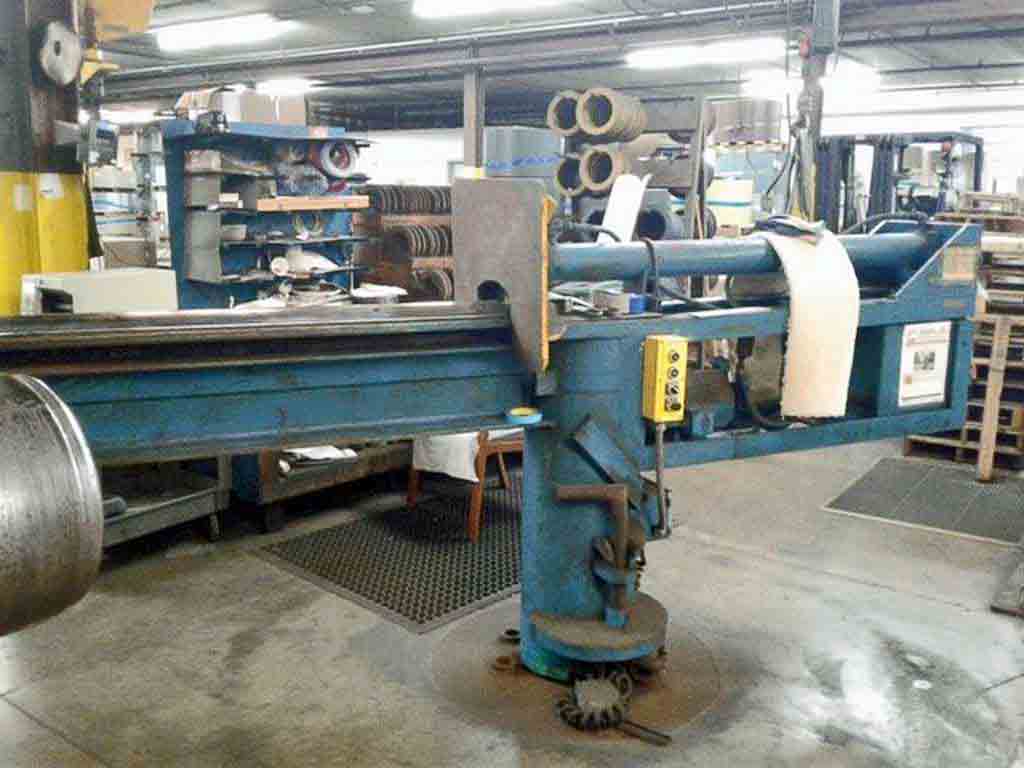

-One Arm Turnstile:
Manual Rotation
Hydraulic Pushoff
Self-Contained Hydraulics

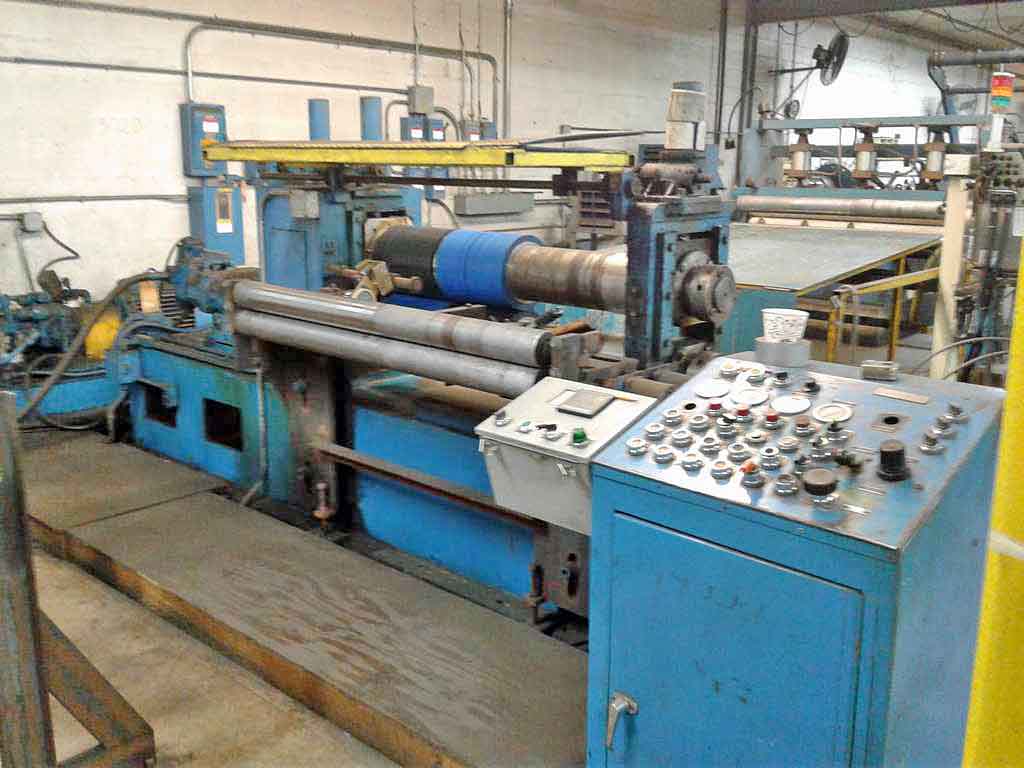

-Main Operators Control Panel:

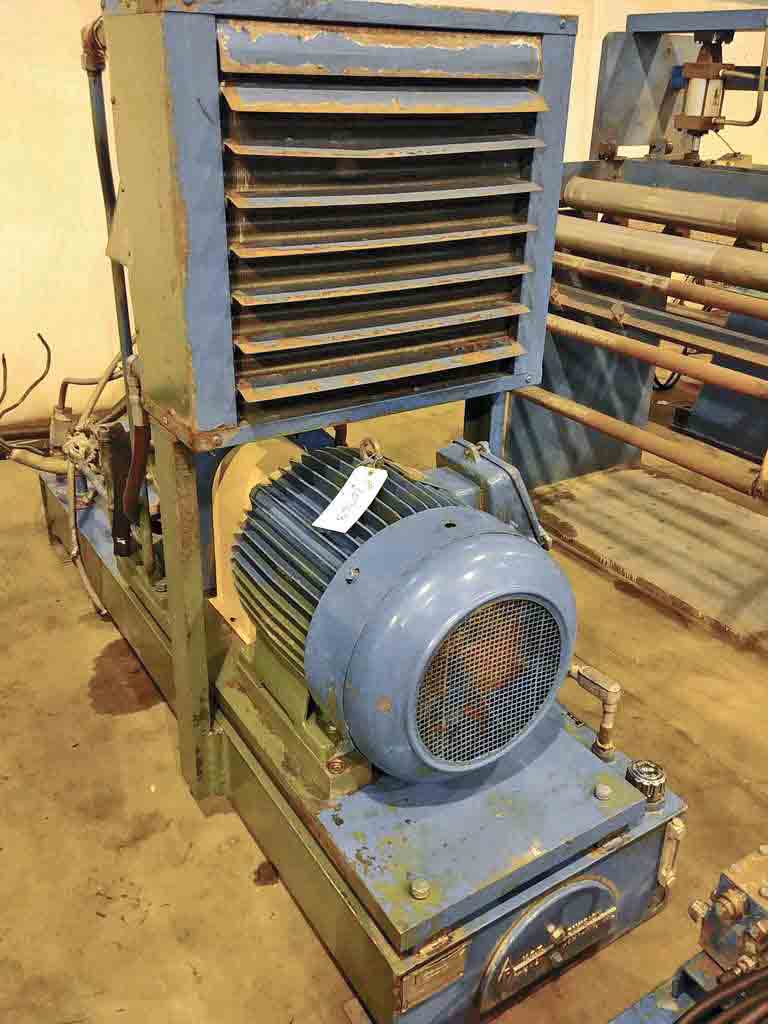

-Main Hydraulic Unit #1:
For use with Slitter Head Drive
Overall Size:
-Main Hydraulic Unit #2:
For use with Recoiler Drive
With Cooler
Overall Size: 96″ L x 32″ W x 66″ High
-(2) Additional Hydraulic Units:

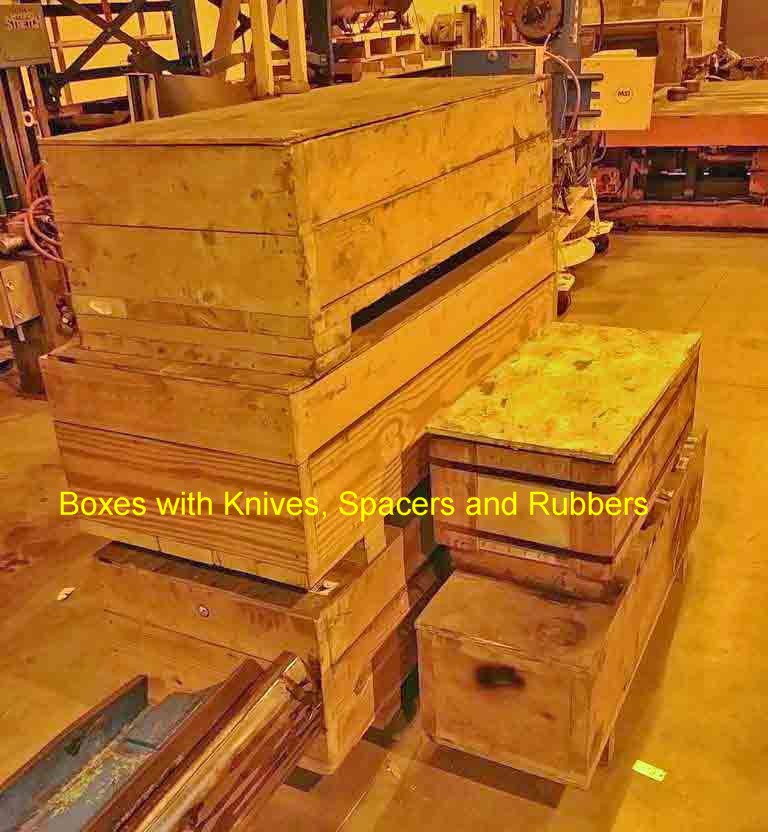

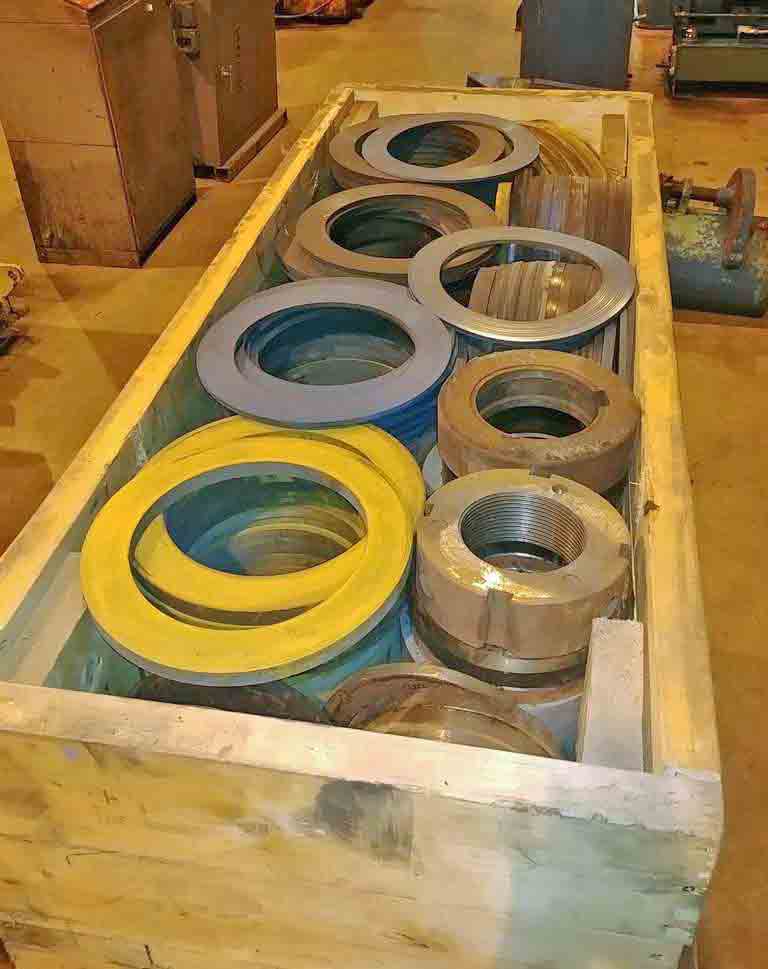

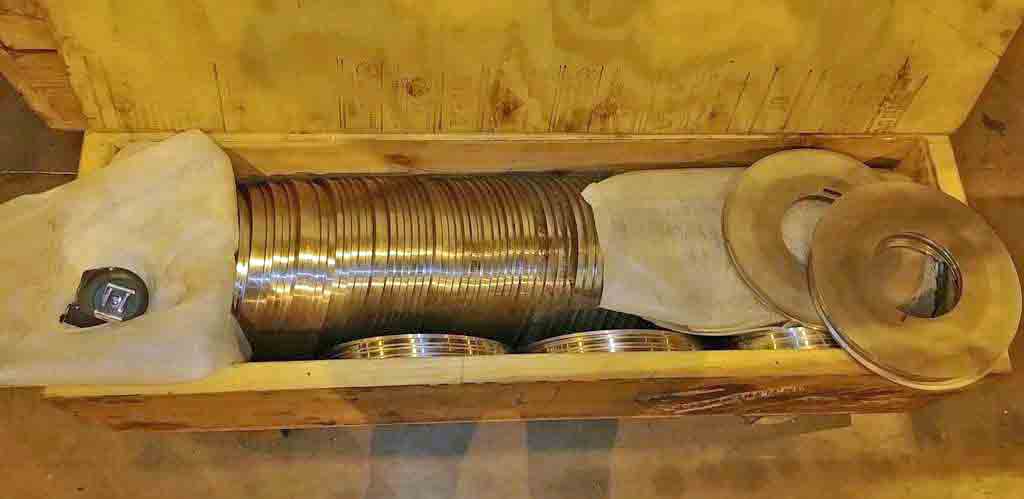

-Slitter Tooling:
-Note: Video of line running available.
