-Width: 48″ Wide
-Gauge: 0.020″ – 0.187″
-Maximum Coil: 25,000#
-Line Direction: Left to Right
Consisting of:
-Entry Coil Car:
L Type,
41″ Wide Deck
Self-Contained Hydraulics

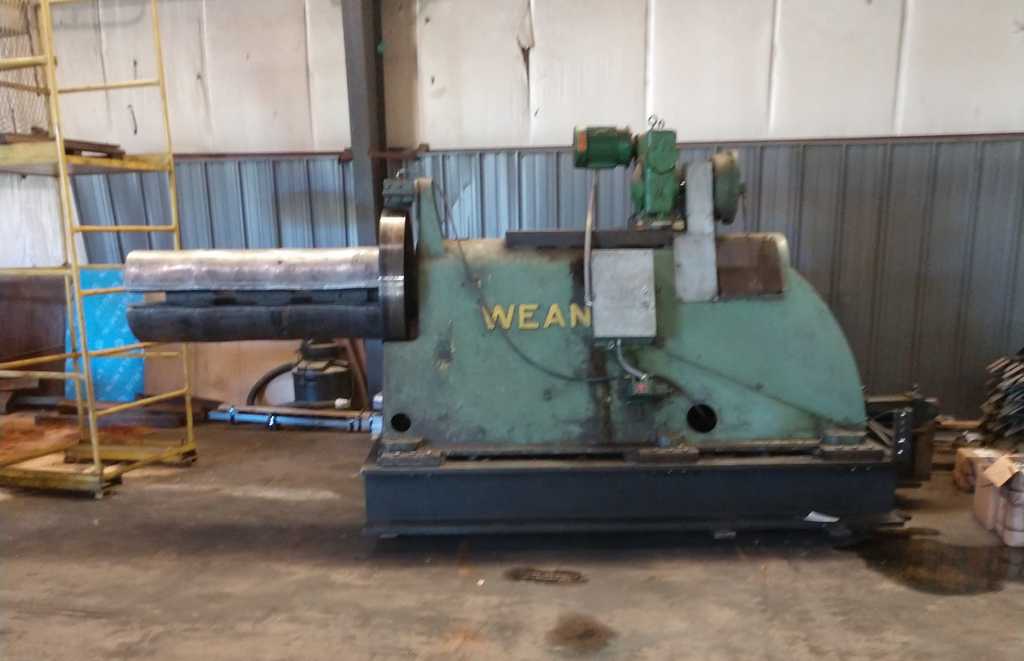

-Uncoiler: Wean
Hydraulic Expansion
(4) Segment Mandrel

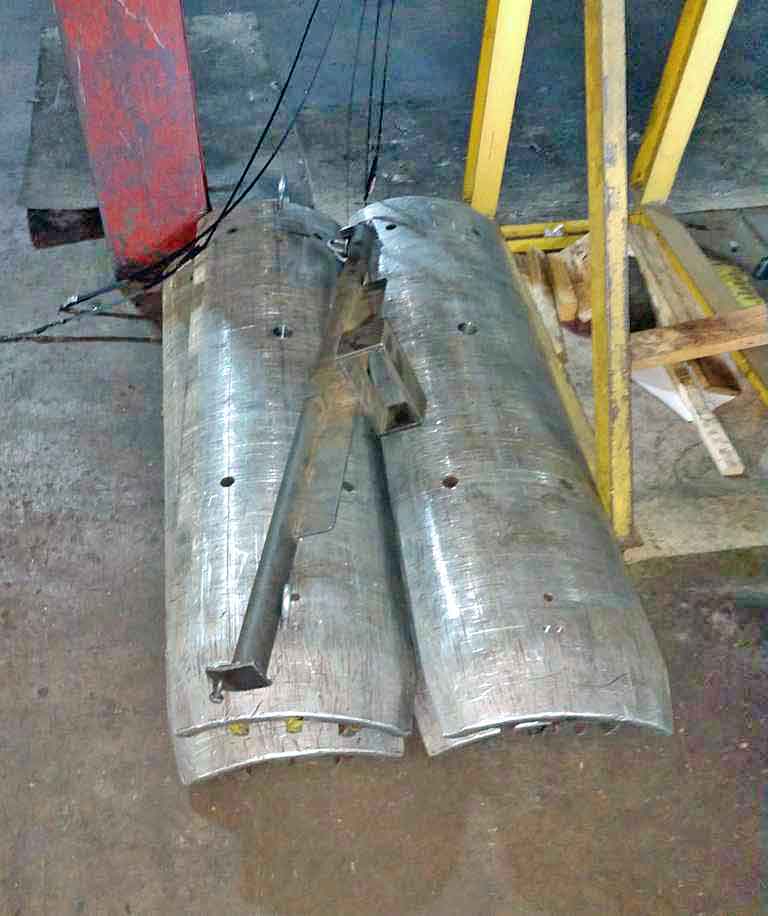

16″ – 20″ I.D. w/Pads for 24″
AC Motor Threading Drive w/Air Clutch
Brake
Sliding Base
-Holddown Roll Unit:
Rubber Covered Roll, Hyd. Motor Driven

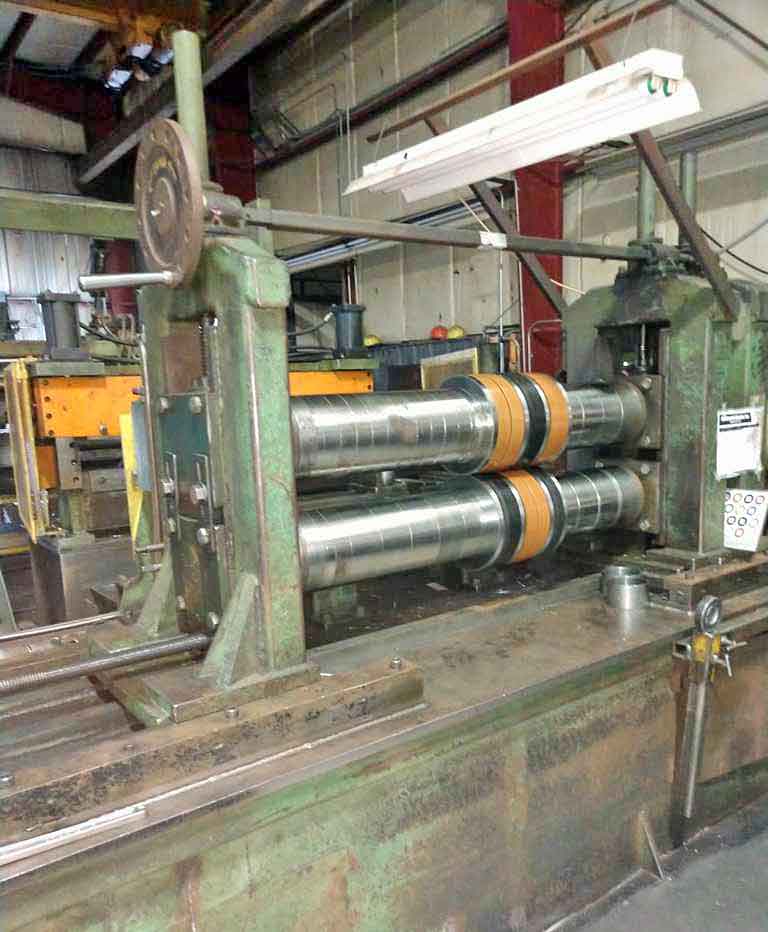

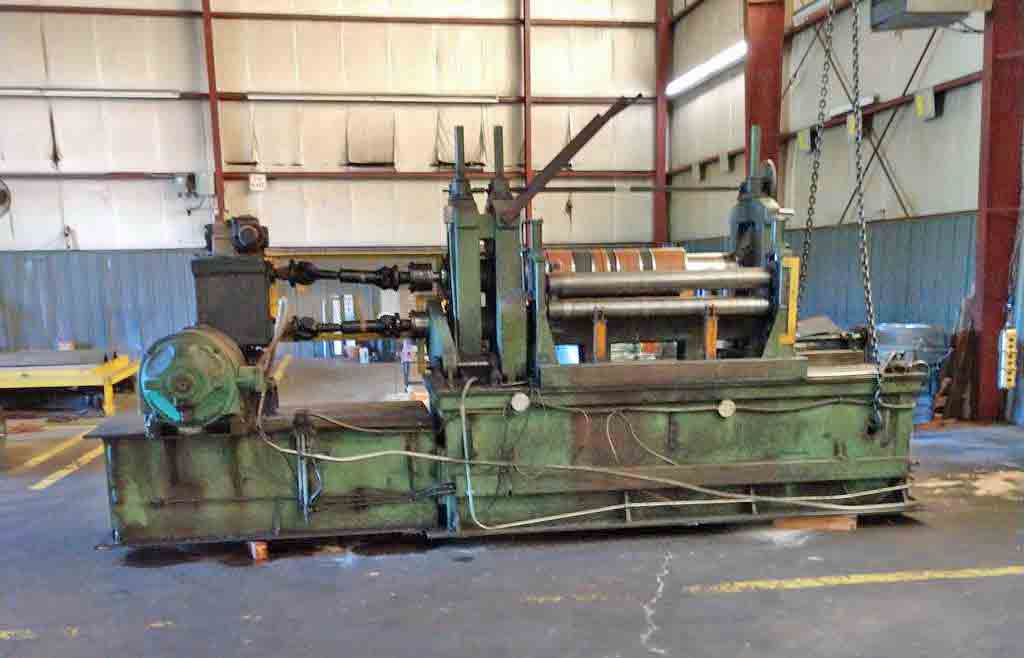

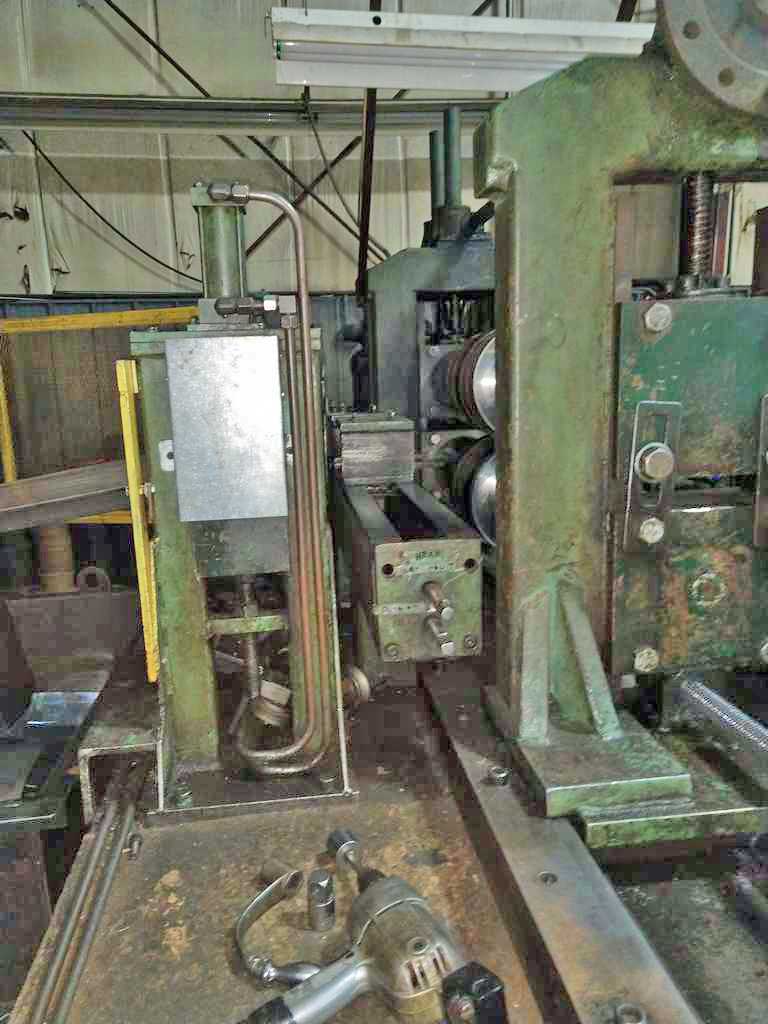

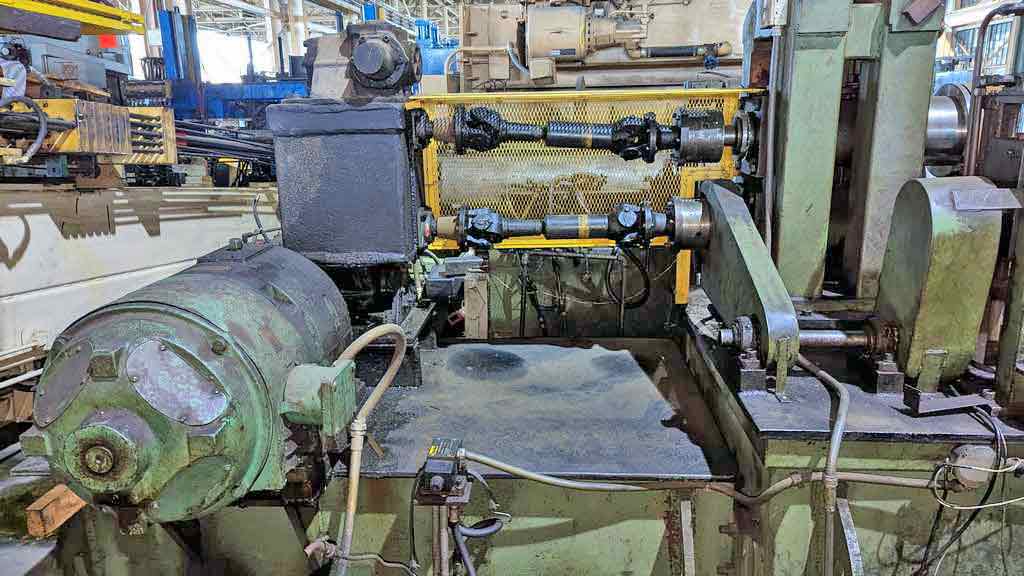

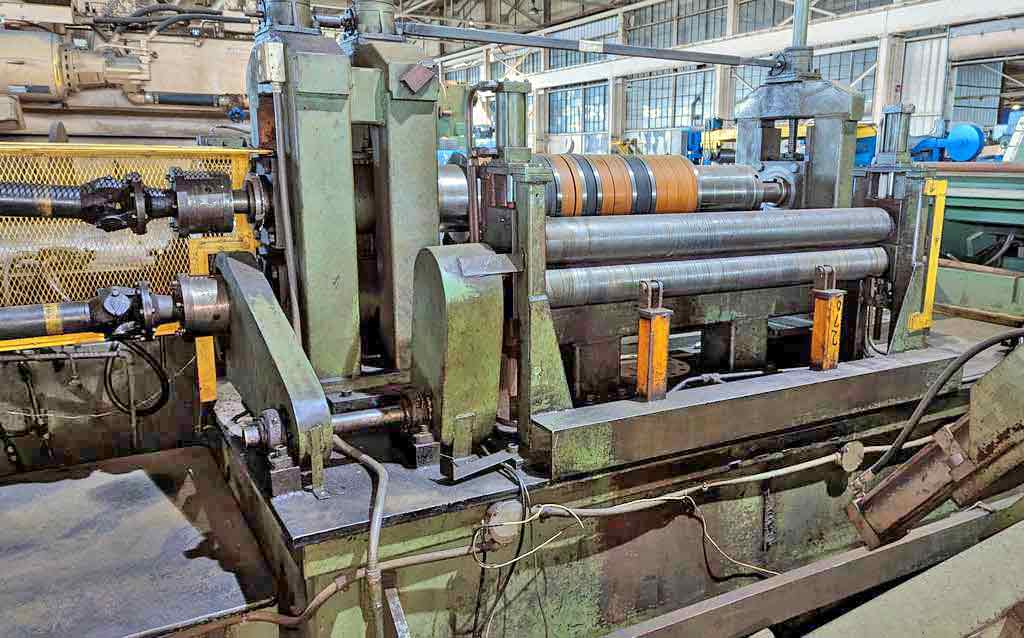

-Slitter Head: Wean
7″ Dia. Arbors
Entry Pinch Rolls
Entry Side Guides, Manual Adjustment
Parallel Arbor Adjustment
20 HP AC Motor Threading Drive

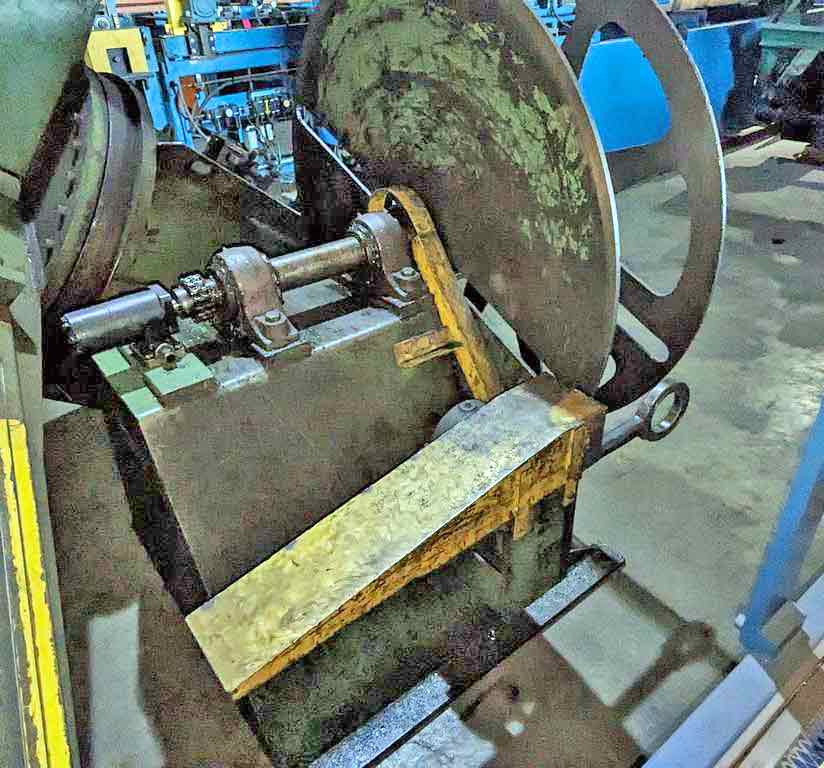

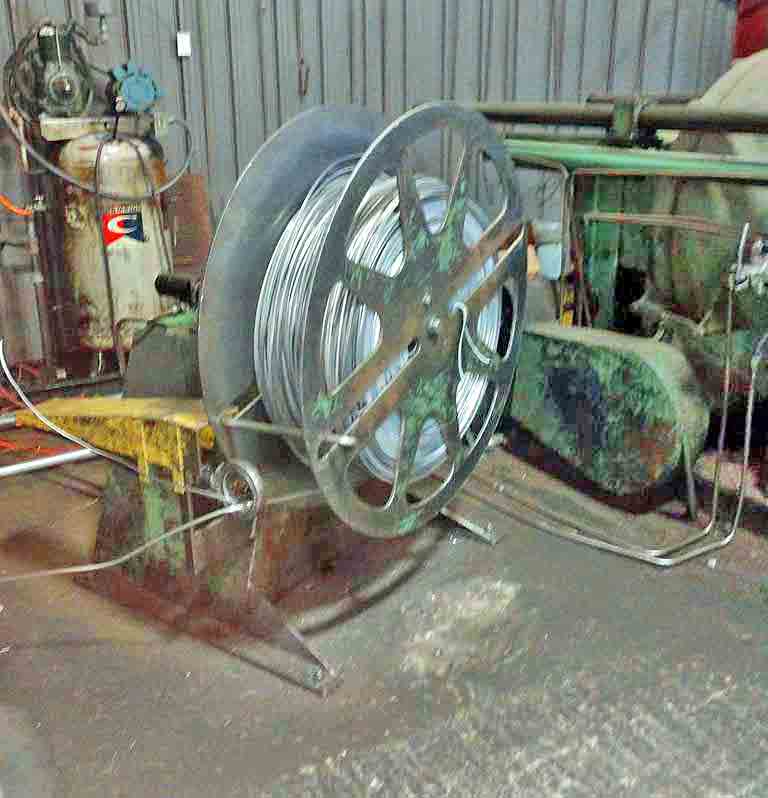

-Scrap Winder: Cauffiel
Oscillate Wind
Hydraulic Motor Driven
Manual Scrap Ball Removal

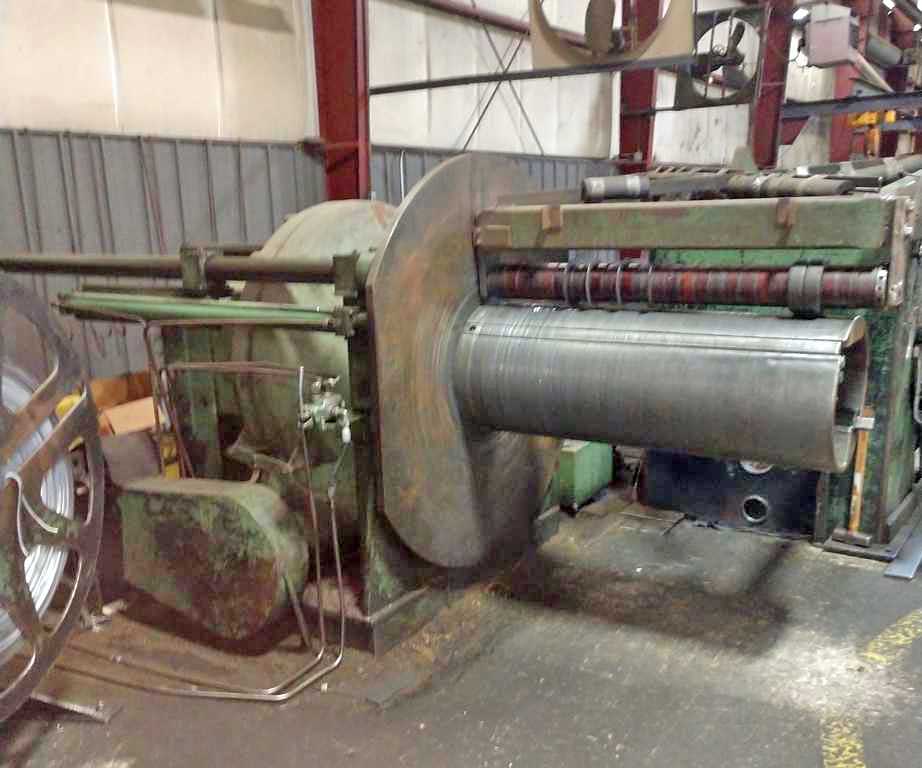

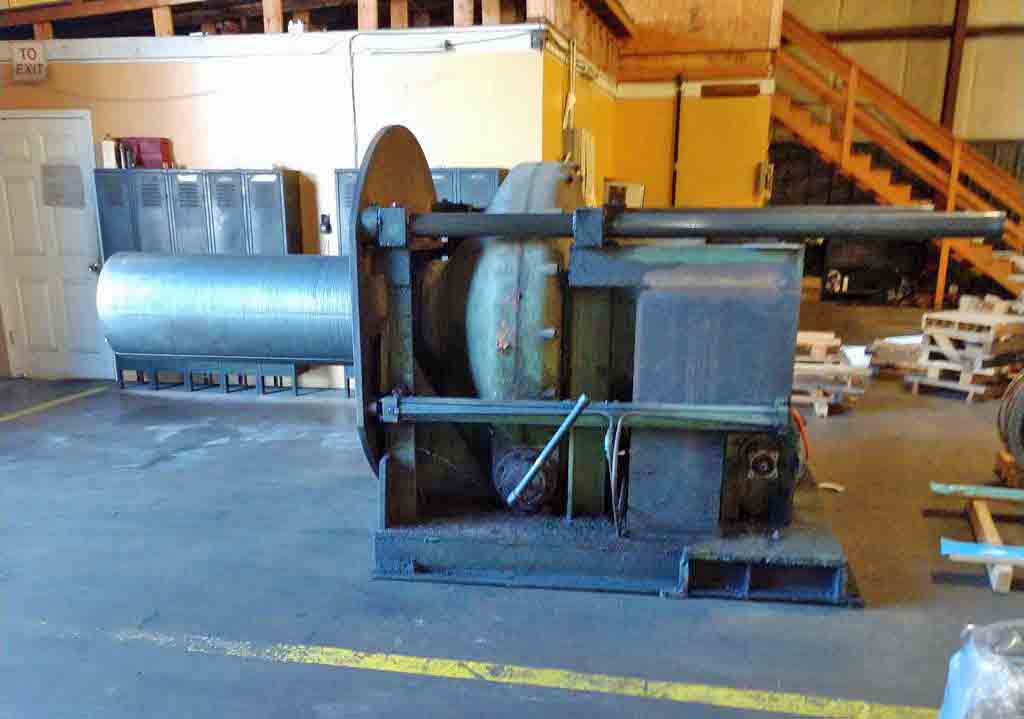

-Recoiler: Cauffiel

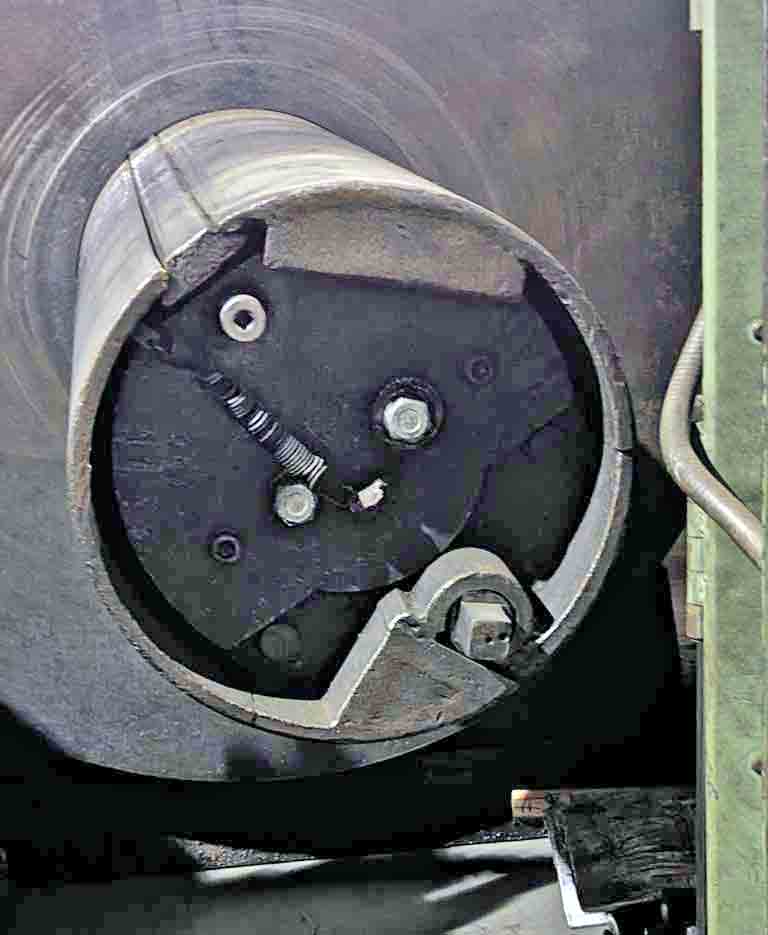

20″ Dia. Drum
Manual Clamp and Expansion
Hydraulic Pushoff
75 HP GE AC Motor, 1750 RPM, 440 V
Belt Driven to Reducer

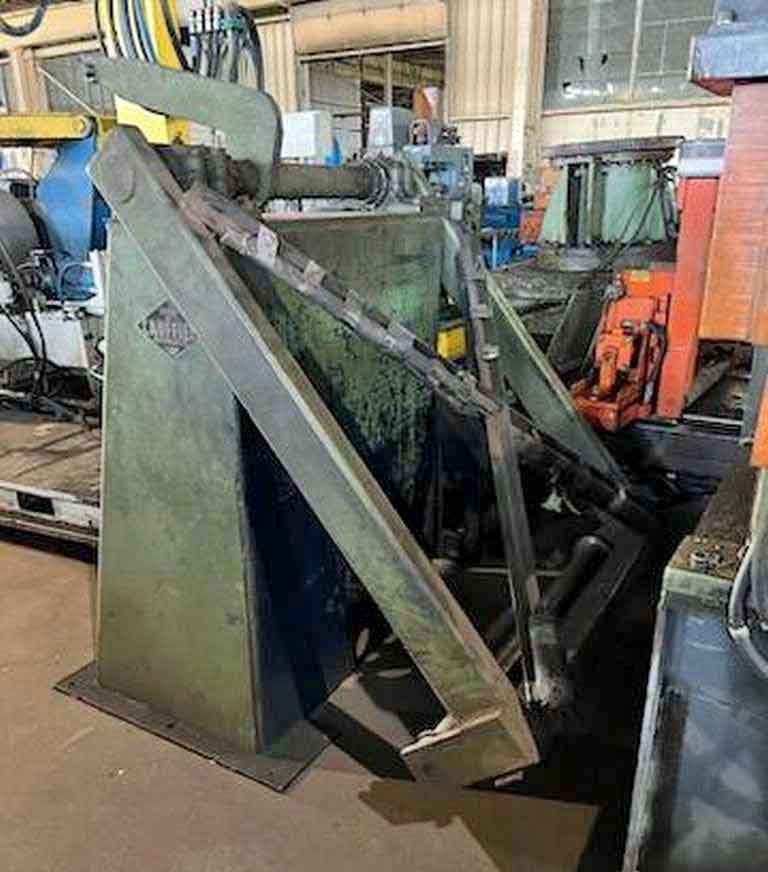

-Freestanding Overarm Separator: Cauffiel
