YEAR: 1992

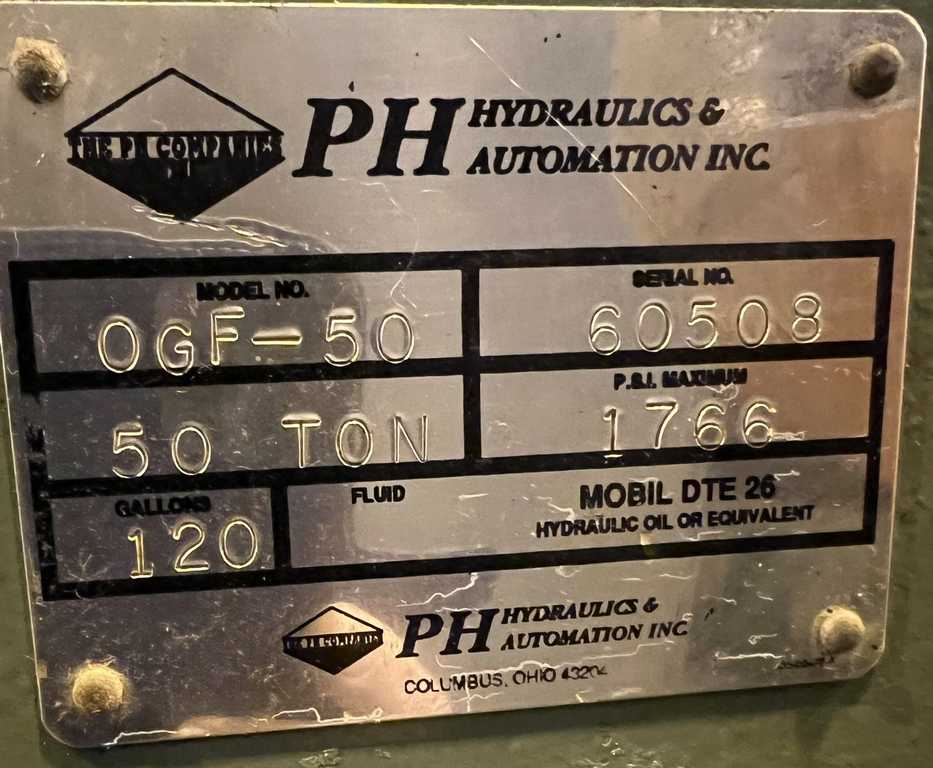

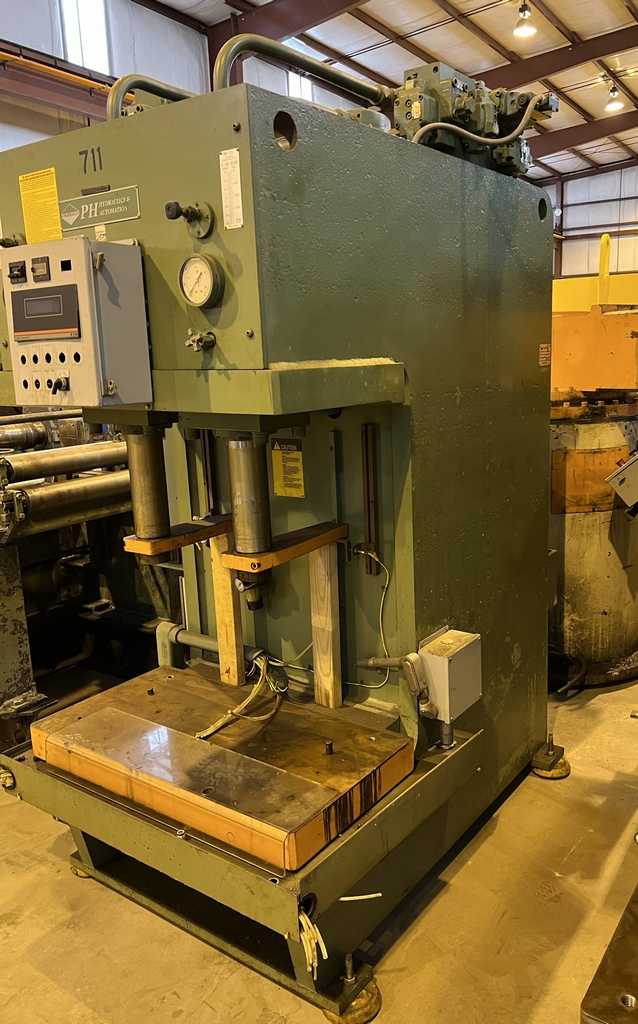

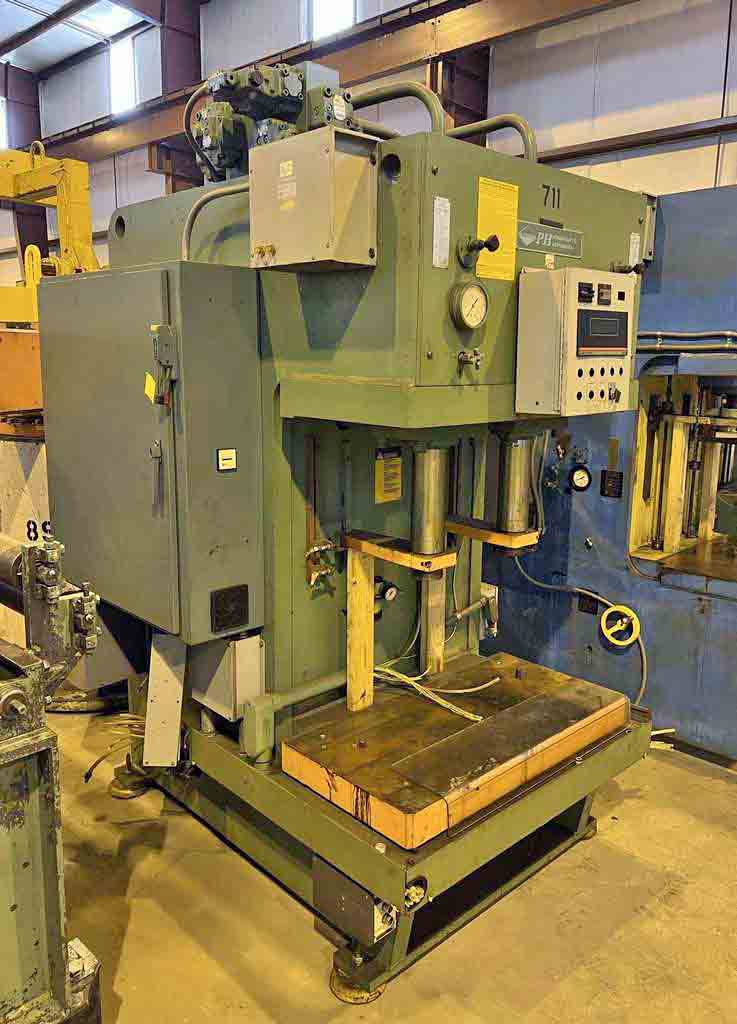

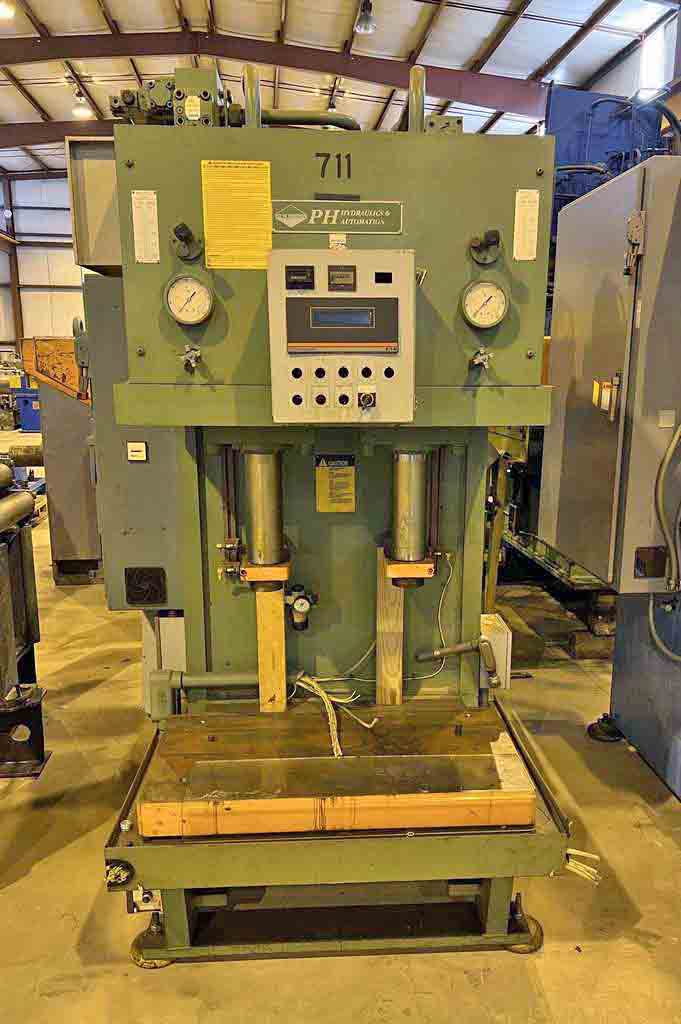

PH Hydraulics & Automation C-Frame Hydraulic Press
-Model: OGF-50
-Capacity: 50 Ton
-2 Rams
-2 – 6″ Bore x 18″ Stroke Hydraulic Cylinders
4″ Dia. Rods
-Approx. Ram Speed:
Advance – 580 IPM
Press – 284 IPM
Return – 555 IPM
-Bed Size: 42″ L-R x 21″ F-B
-23.5″ from Floor to top of Bed

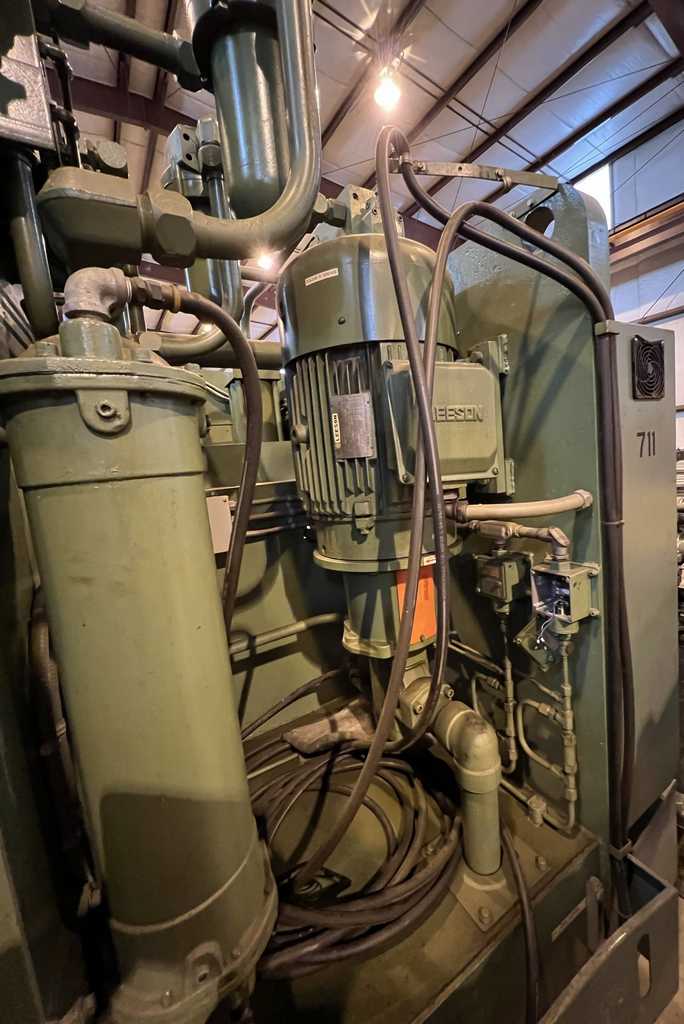

-Self-Contained Hydraulic Power Unit

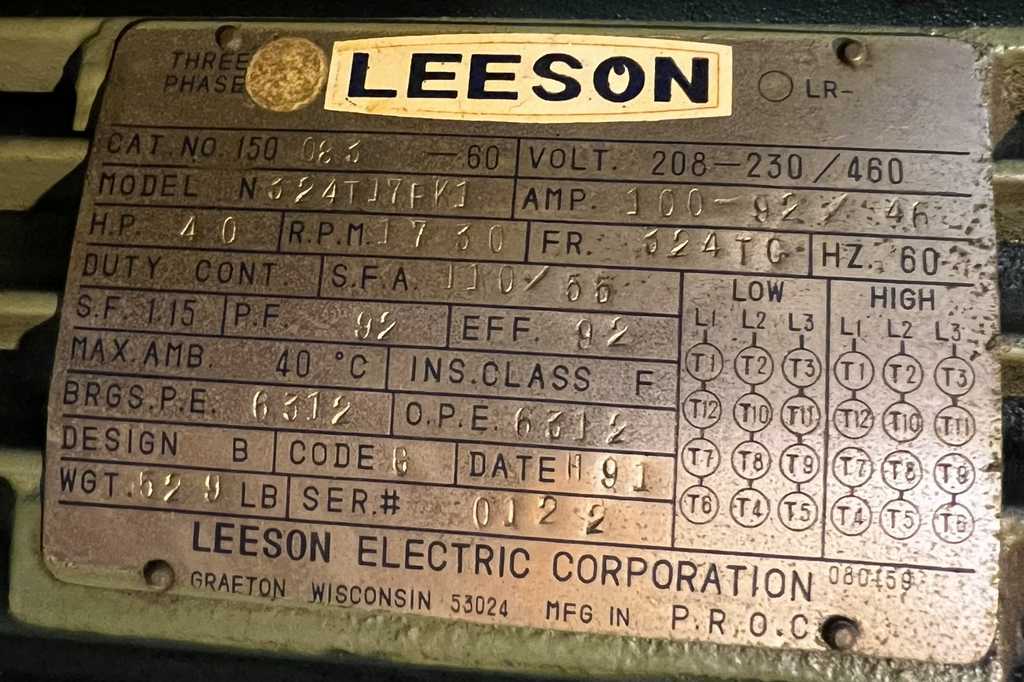

40 HP Leeson AC Motor, 1730 RPM, 208-230/460 V
1766 PSI Max
120 Gallon Reservoir

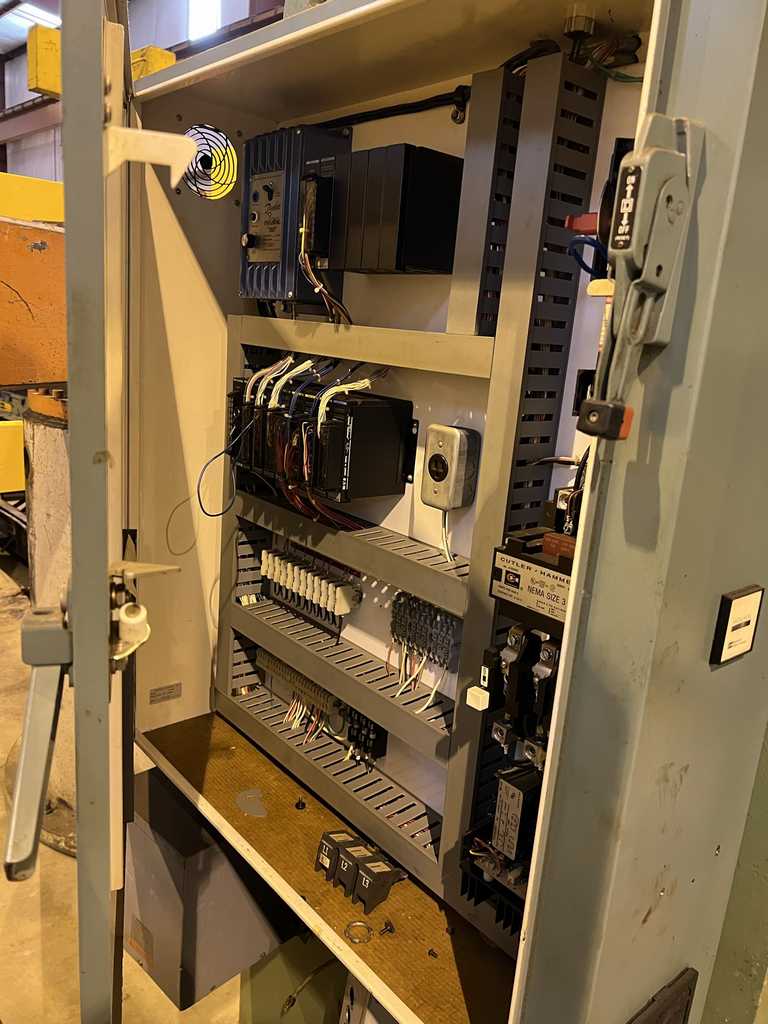

-Electrical and Hydraulic Schematics Included
-Overall Size: 75″ L x 55″ W x 100″ High
15,000 lbs.
