Width: 50″
Weight: 30,000 lbs.
Coil ID Entry/Exit: 20″ & 24″
Gauge Range: 0.028″ – 0.187″
Line Direction: Left to Right
Consisting of the following:
-Entry Coil Car:
Pit Type
Hydraulic Lift & Travel

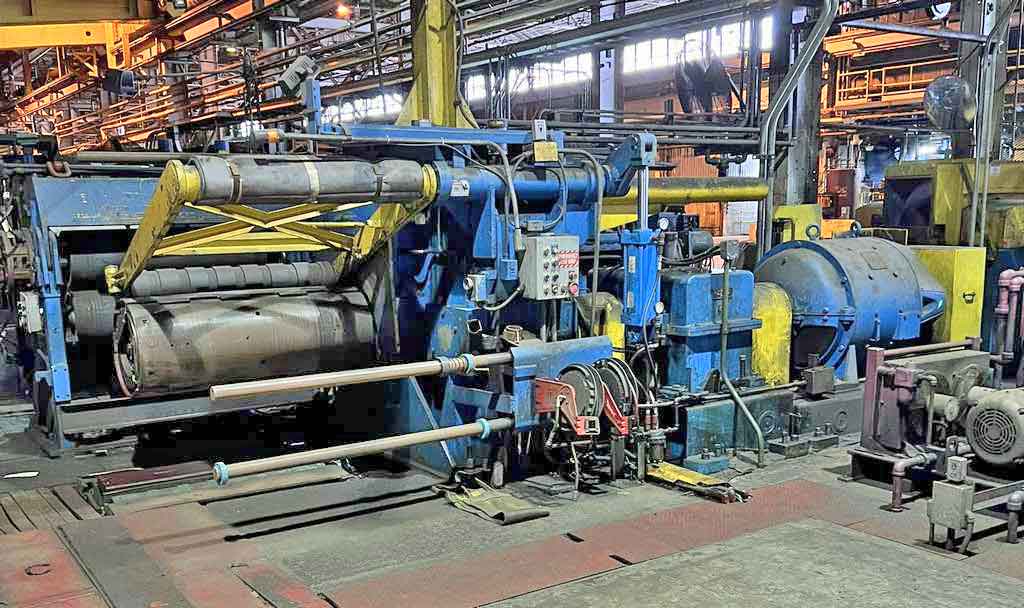

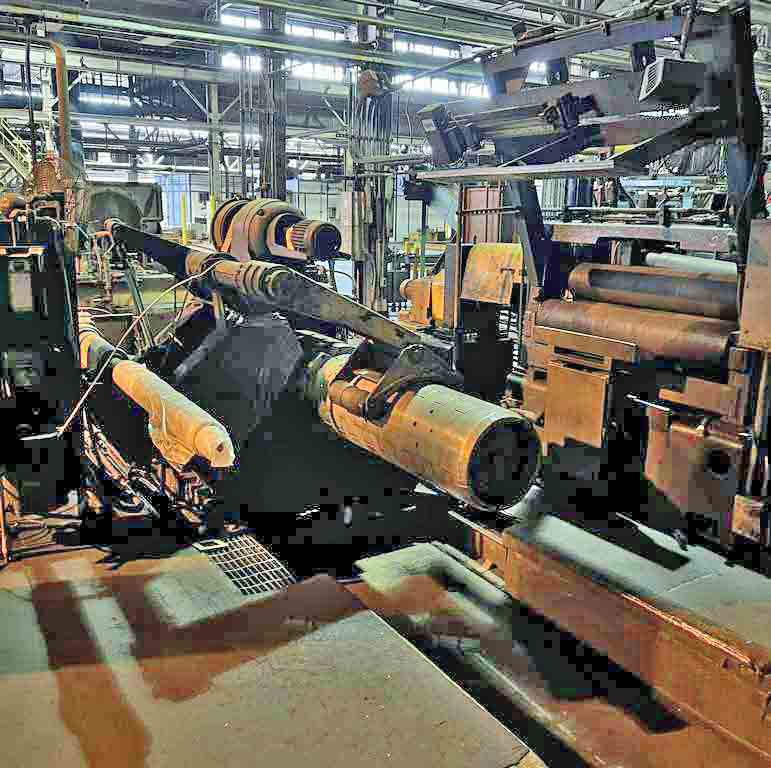

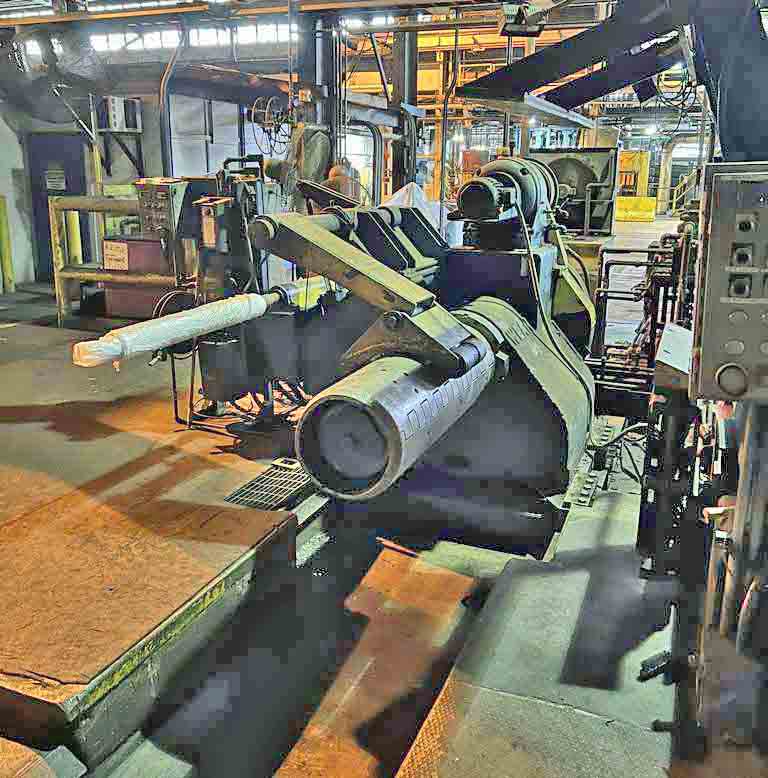

-Mandrel Uncoiler:
Overarm Holddown
Hydraulic Expansion
Pumpkin Tooth Mandrel
AC Feedup
Water Cooled Brake
Slide Base
Paper Winder

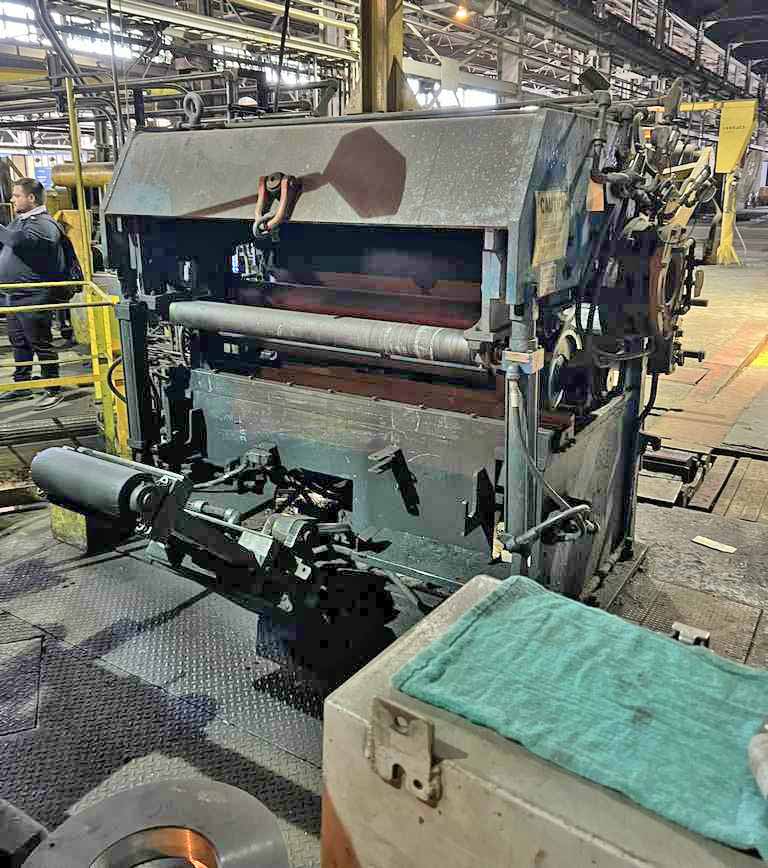

-Entry Unit:
Photo Eye Edge Detector
Peeler Table
Pinch Rolls

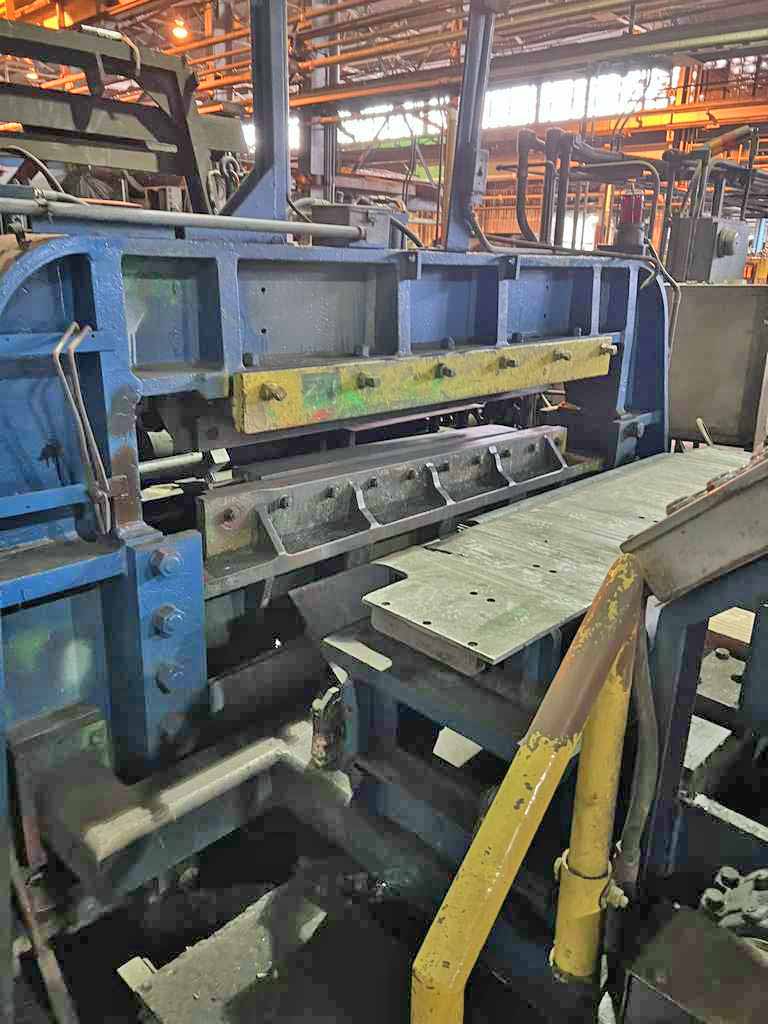

-Crop Shear:
Upcut Type
Scrap Table

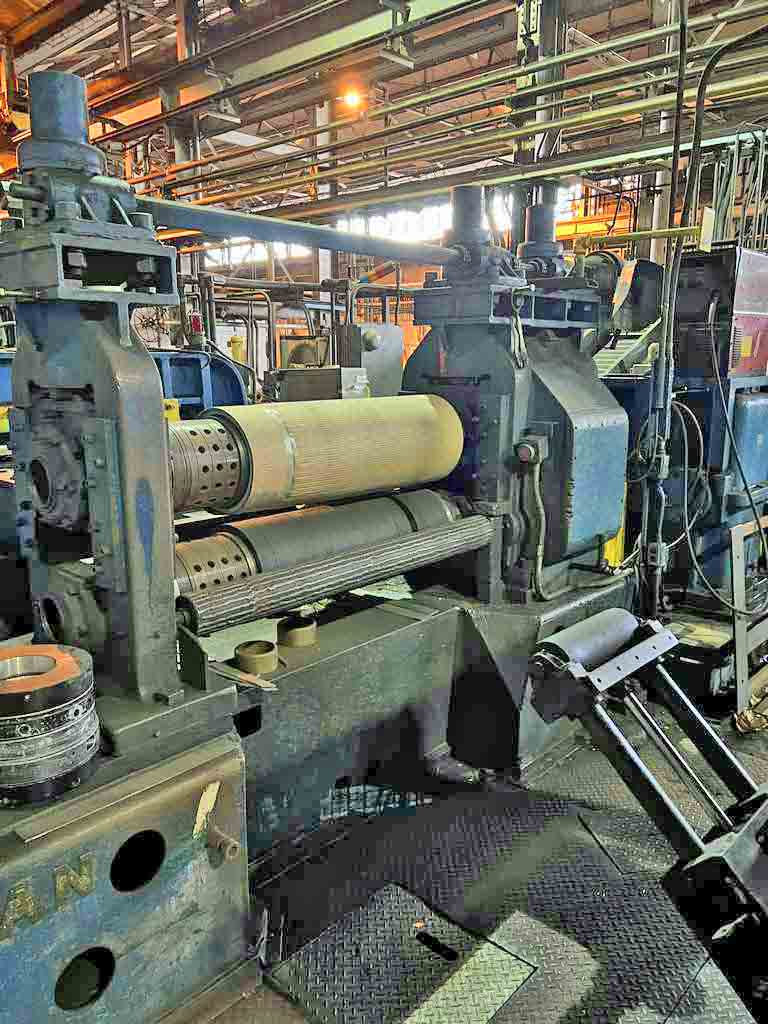

-Slitter Head:
Adjustable Roller Entry Side Guides

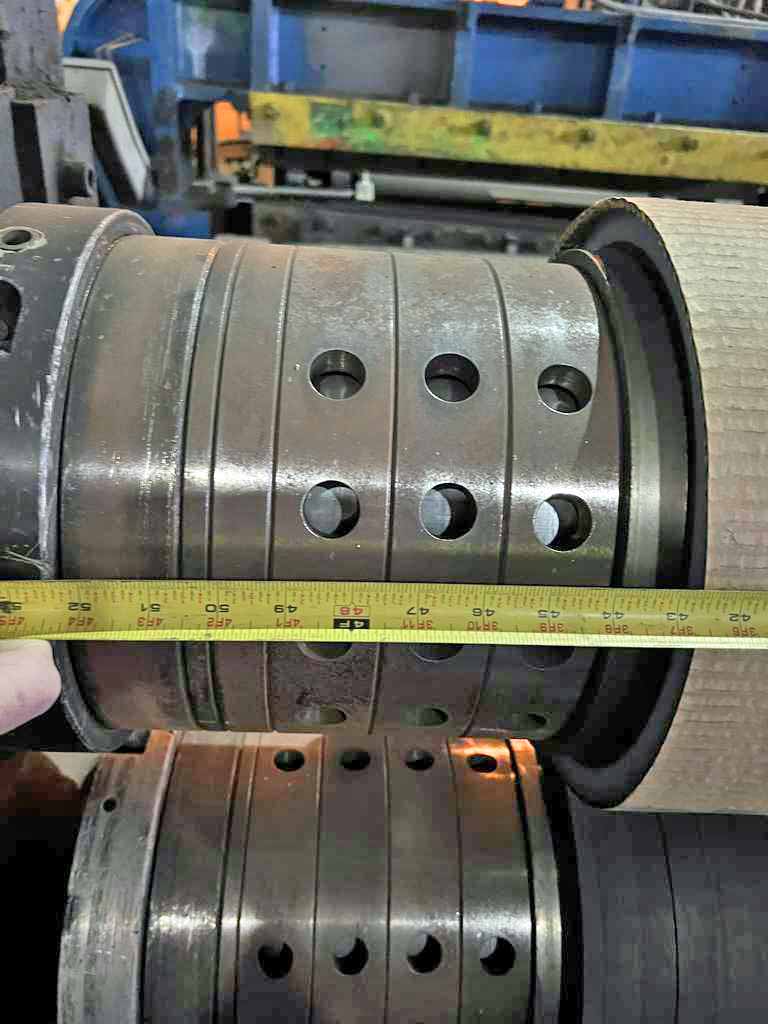

9″ Dia. x 50″ Face Arbors

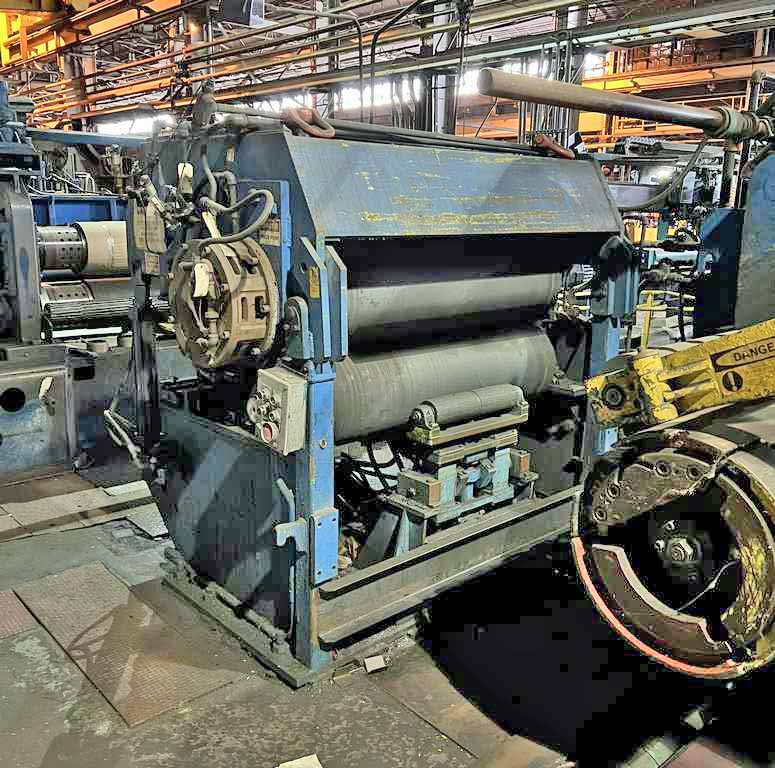

-Tension Stand: Stamco Synchro-Wind
Roll Type
Water Cooled Brakes

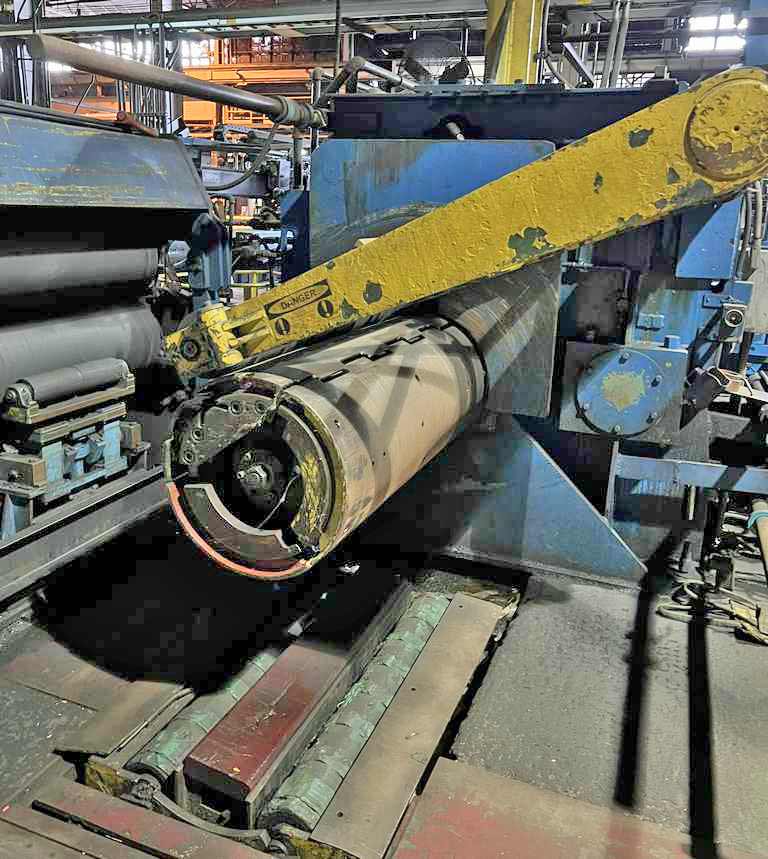

-Recoiler:
20″ Dia. Drum w/24″ Bolt on Pads
Hydraulic Gripper and Expansion
Overarm Separator
Hydraulic Pushoff
(2) Speed H&S Gearbox w/1.5:1 and 3.67:1 ratios
-Pit Type Coil Car:
-(2) Scrap Winders: L & M
Opposed Cone Design
Hydraulic Motor Drive
-Water Cooler:
-Hydraulic Power Unit:
-Line is Installed
