Width: 60″
Weight Capacity: 40,000#
Coil I.D. Entry: 19.50″ – 24″
Coil I.D. Exit: 20″
Line Speed: 300 and 600 FPM
Line Direction: Left to Right
Consisting of the following:

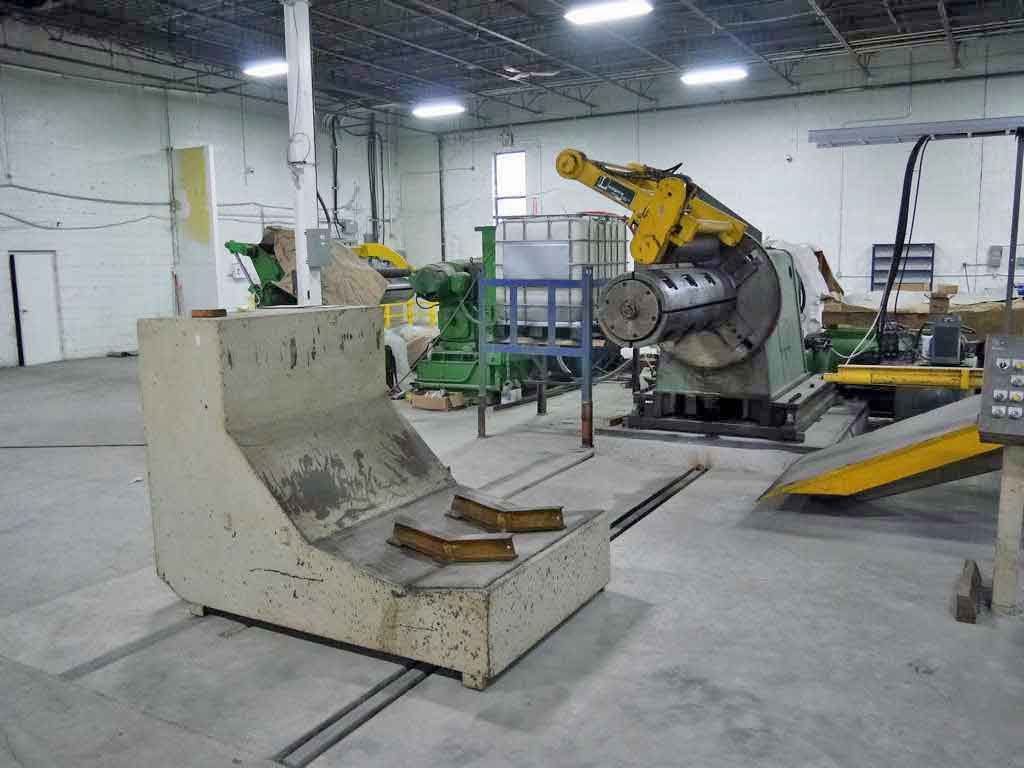

-Loopco “L” Type Coil Car:
Self Contained Hydraulic Power Unit
Hydraulic Motor Travel

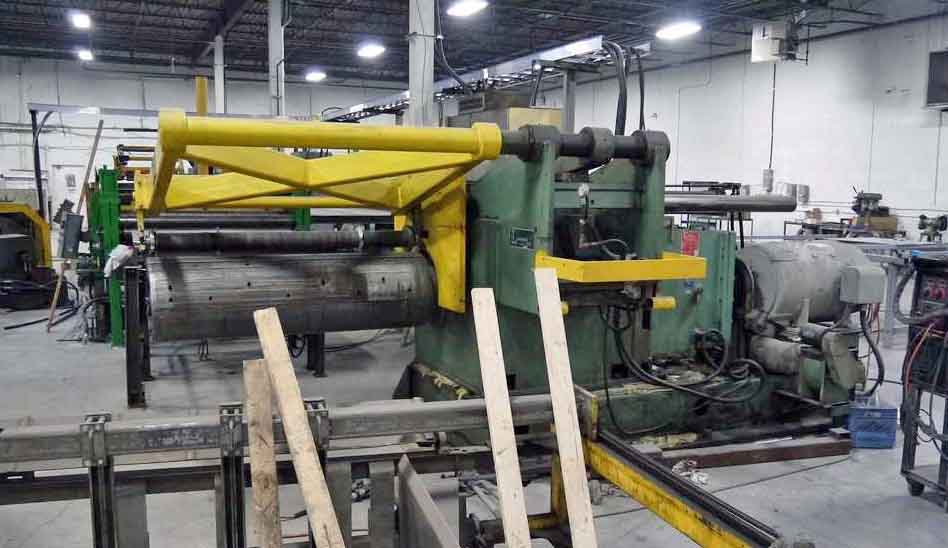

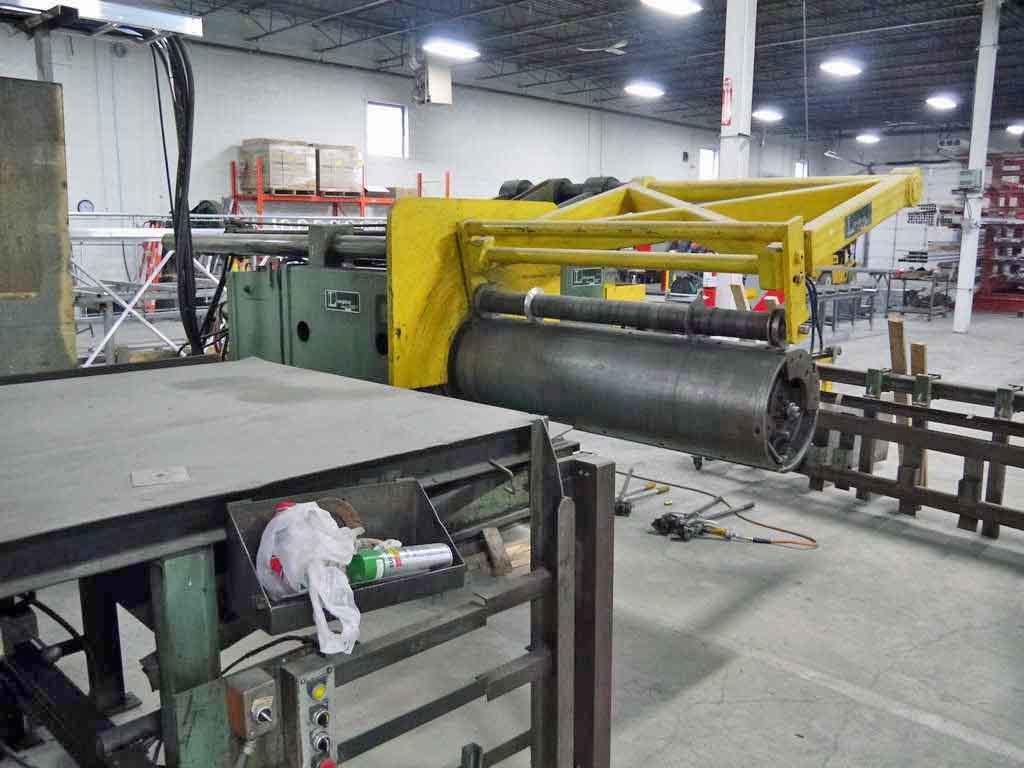

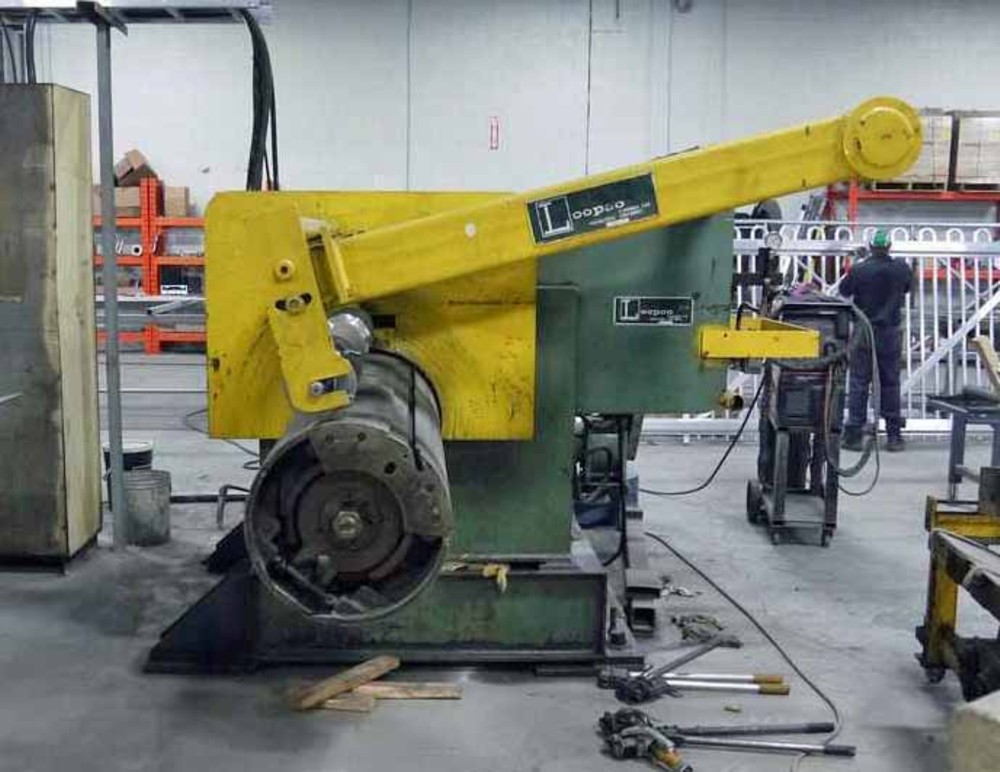

-Loopco Mandrel Uncoiler:
Hydraulic Expansion
Powered Overarm Holddown Roll
Sliding Base
Water Cooled Brake
Feedup Drive

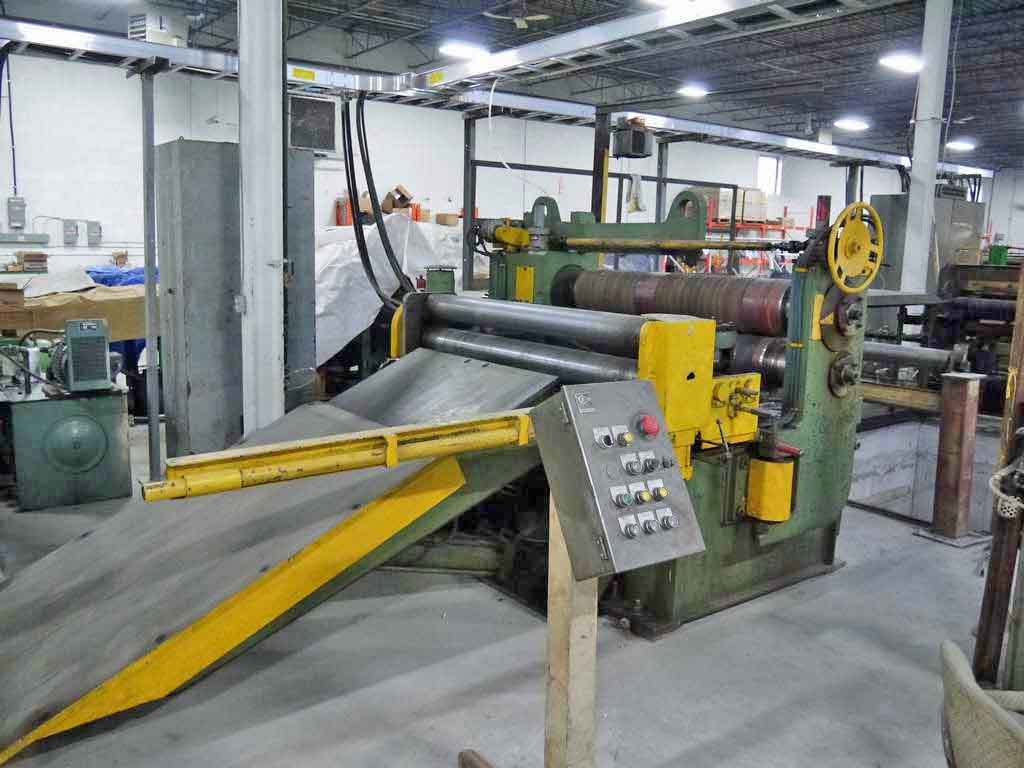

-Loopco Entry Unit:
Peeler Table
Driven Pinch Rolls
Roller Side Guides

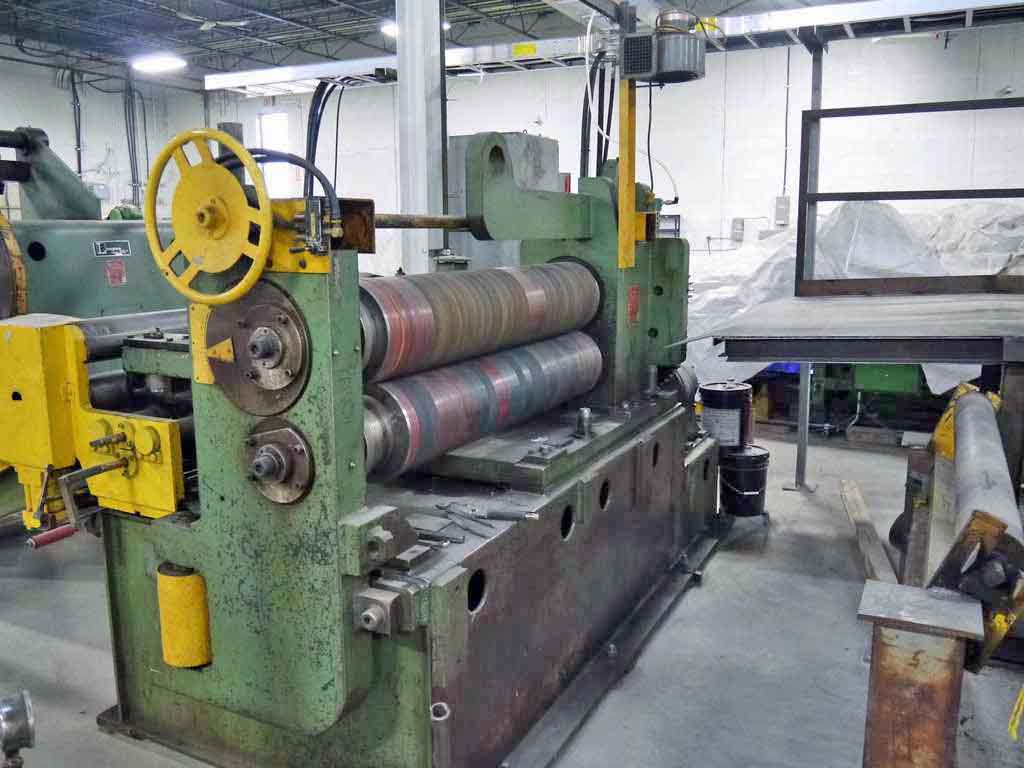

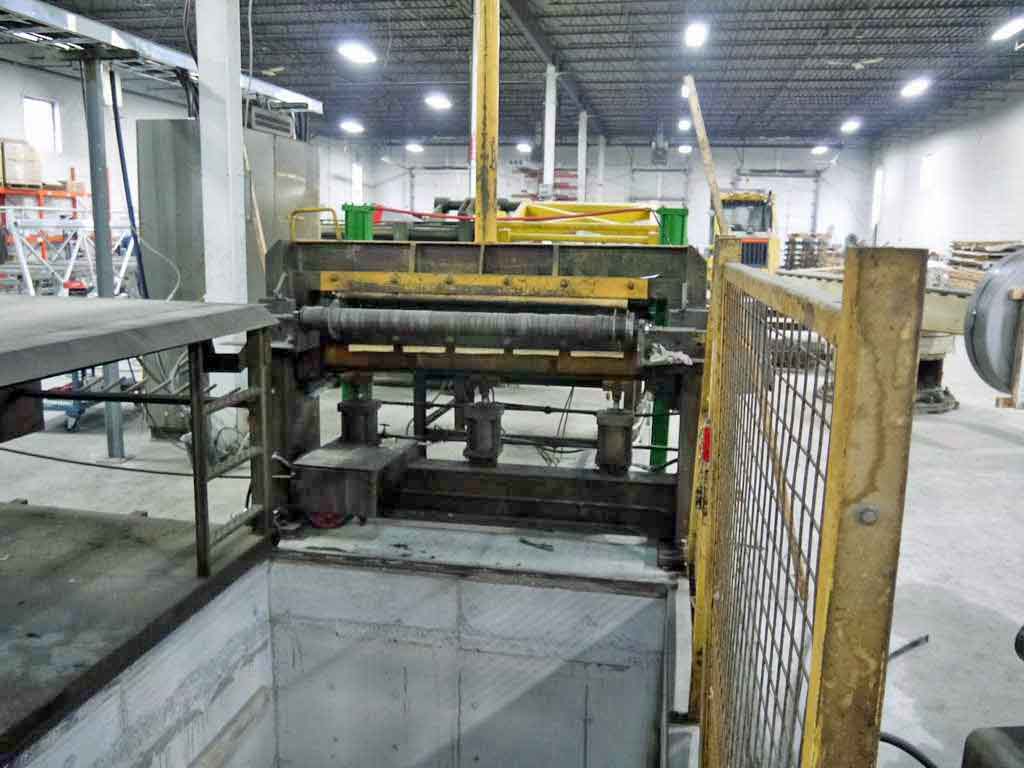

-Loopco Slitter Head:
Crane Type Removable (1 Head)
7″ Dia. Arbors
AC Gear Motor Threading Drive
-(1) Scrap Winder:
Hydraulic Motor Drive
-Pit Cross Over Table:

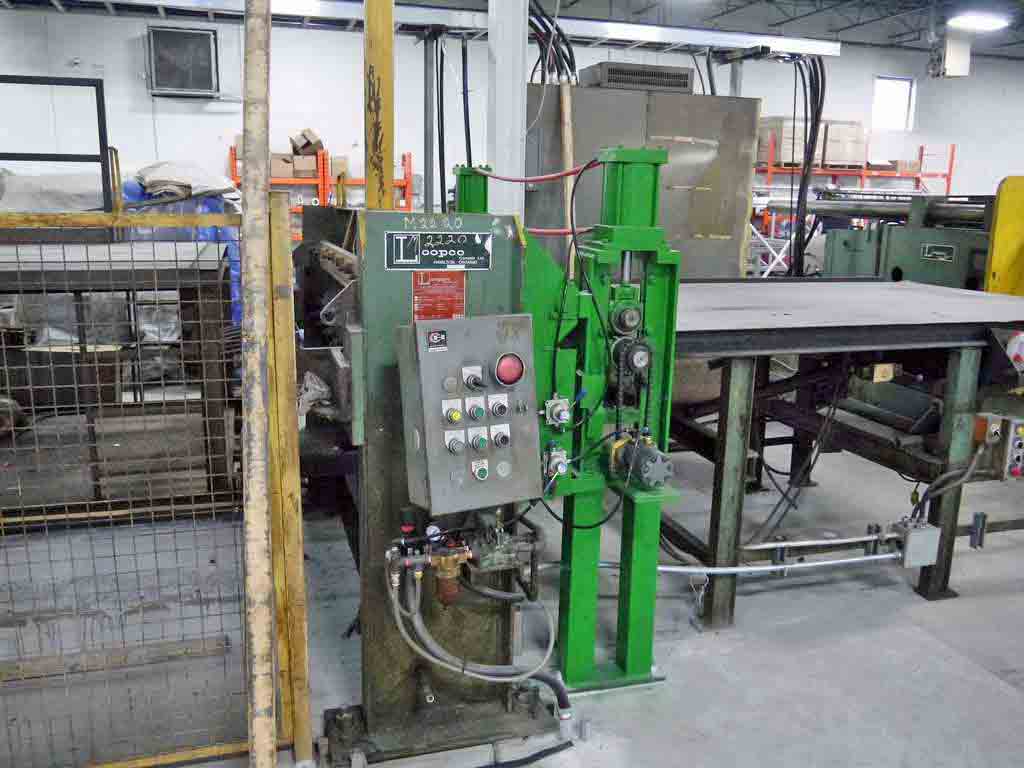

-Loopco Drag Board Tension Stand:
Air Bag Tension Type
Exit Driven Pinch Rolls
-Cross Over Table to Recoiler:

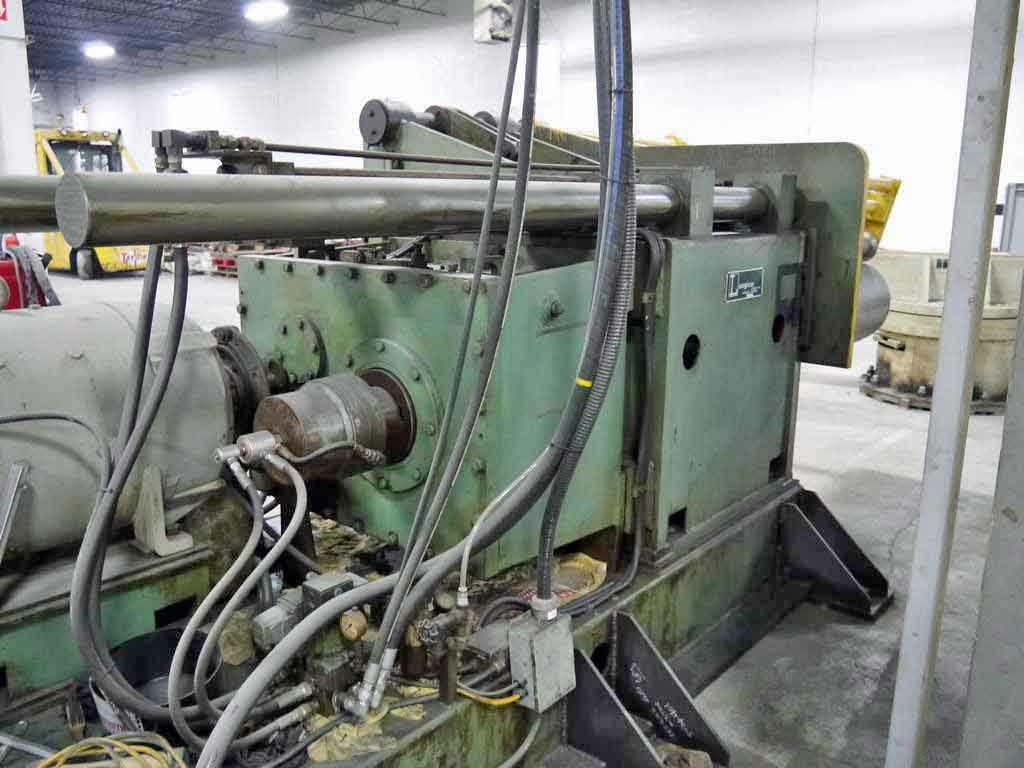

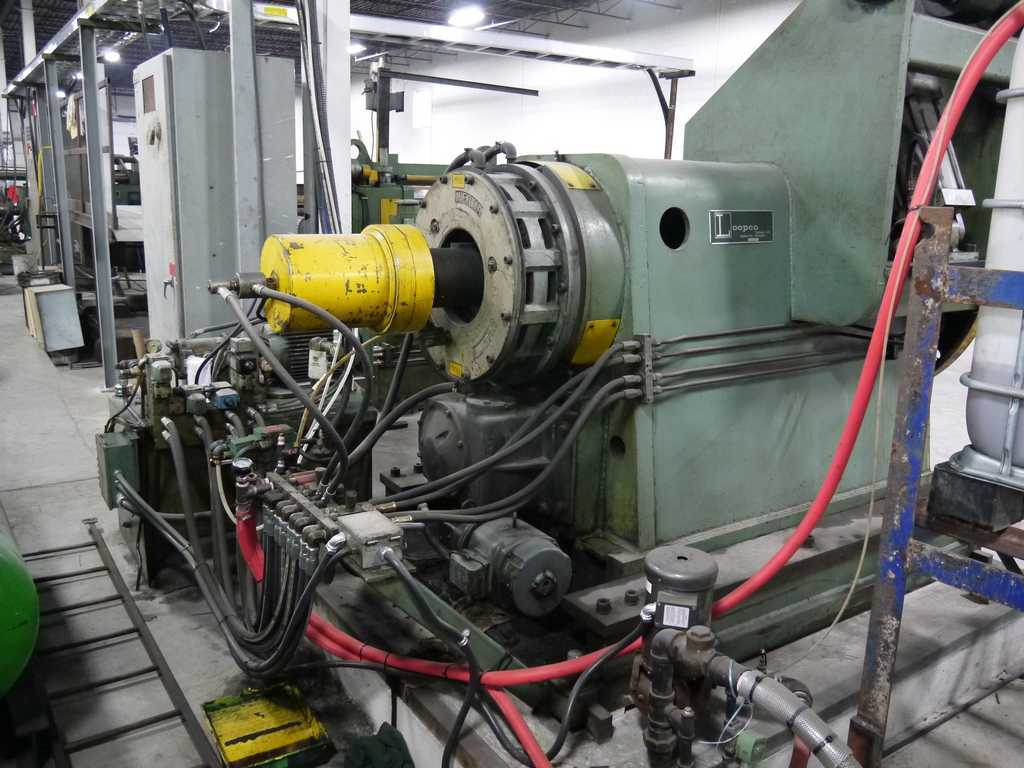

-Loopco Recoiler:
20″ Dia. Drum
Hydraulic Expand & Grip
Overarm Separator
2 Speed Reducer w/34.34:1 & 17.17:1 Ratios
75 HP DC Motor, 650 – 2000 RPM, 500 V
-2 Arm Turnstile
-Slitter Tooling and Tooling Cart

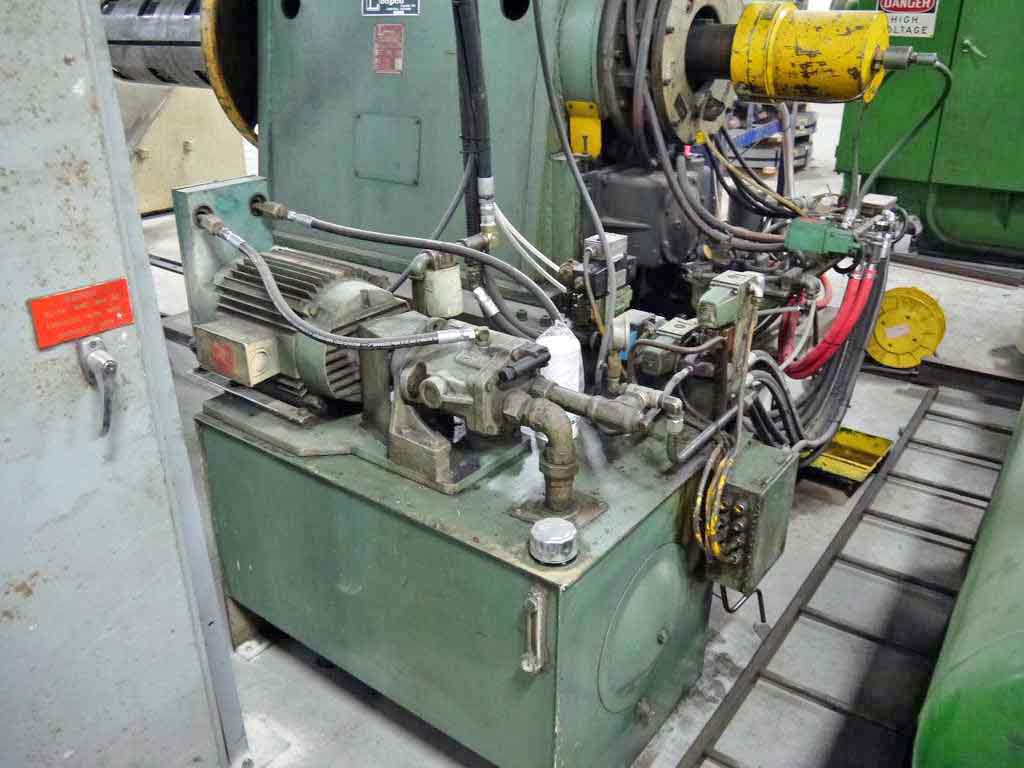

-Hydraulic Unit

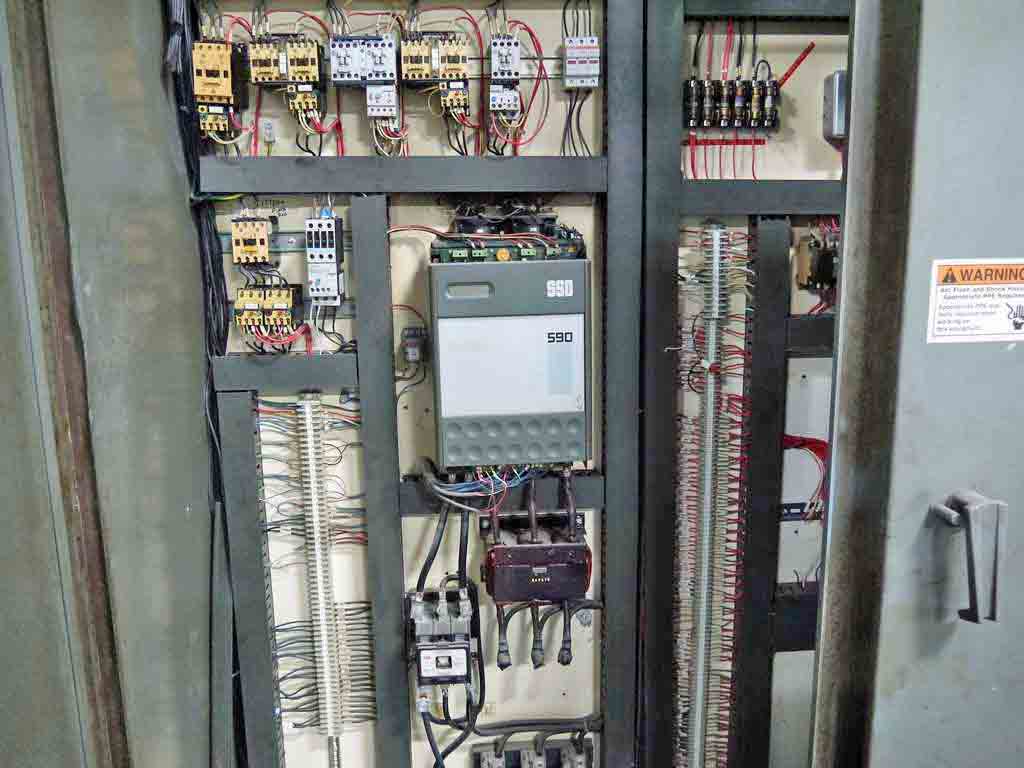

-Controls
