60″ x 7.00″ x 60,000#/45,000# Paxson Slitting Line
Driven Loop / Injector Head
Material Processed: Cold Rolled, Galvanized, Aluminum & Painted
—
General Specifications:
Maximum Entry Width: 60″
Maximum Entry Weight: 60,000 lbs
Maximum Exit Weight: 45,000 lbs
Coil ID Range (Entry): 20″ to 24″
Coil ID Range (Exit): 20″ to 24″
Line Speed:
80 – 700 FPM (Coil Build-Up Mode)
190 FPM (Bare Drum Speed)
Line Direction: Right to Left
—
Line Consists of the Following Components:
1. Entry Coil Car – Paxson
Capacity: 60,000 lbs
56″ Wide Bed
72″ O.D. Capacity
Self-Contained Hydraulics
Retractable Cable Reel
2. Uncoiler – Paxson
Capacity: 60,000 lbs x 72″ Wide
Mandrel Type with Hydraulic Expansion
Coil ID Range: 20″ – 24″
4-Segment Pumpkin Tooth Mandrel
Slide Base
Water Cooled Brake
5 HP AC Motor, Feed-Up Drive
1735 RPM, 230/460 V
3. Peeler Table

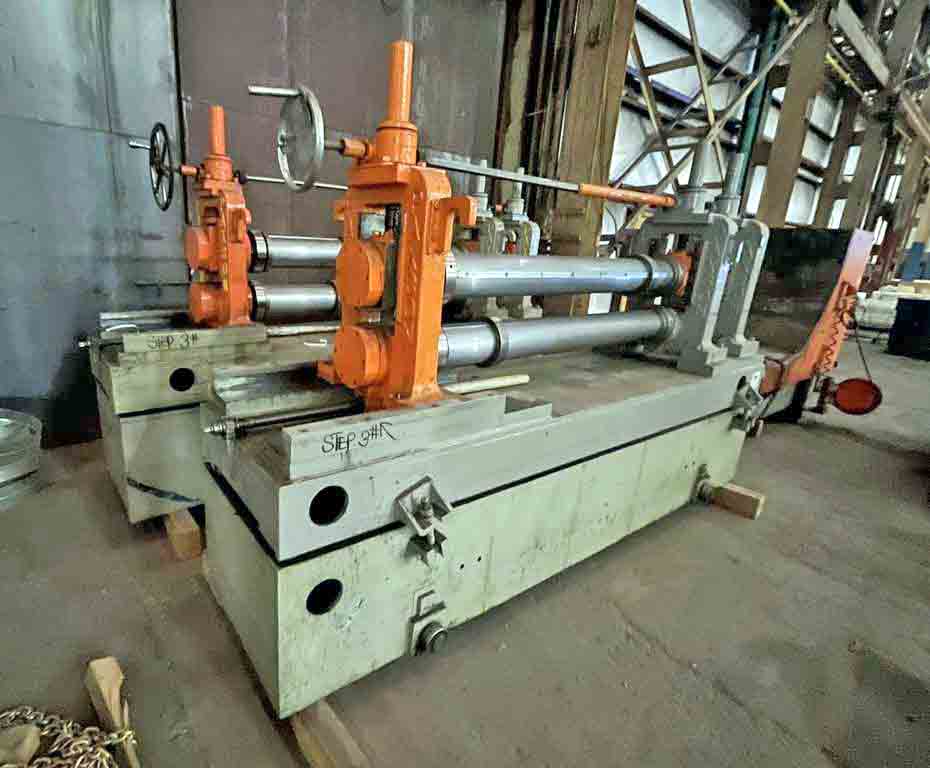

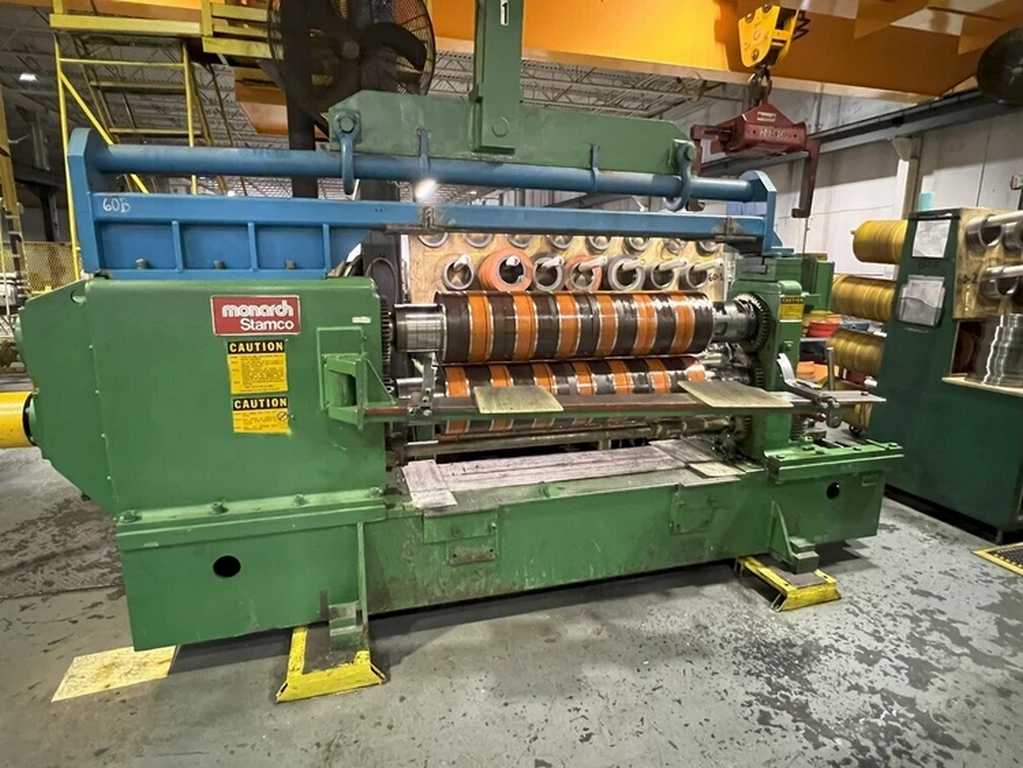

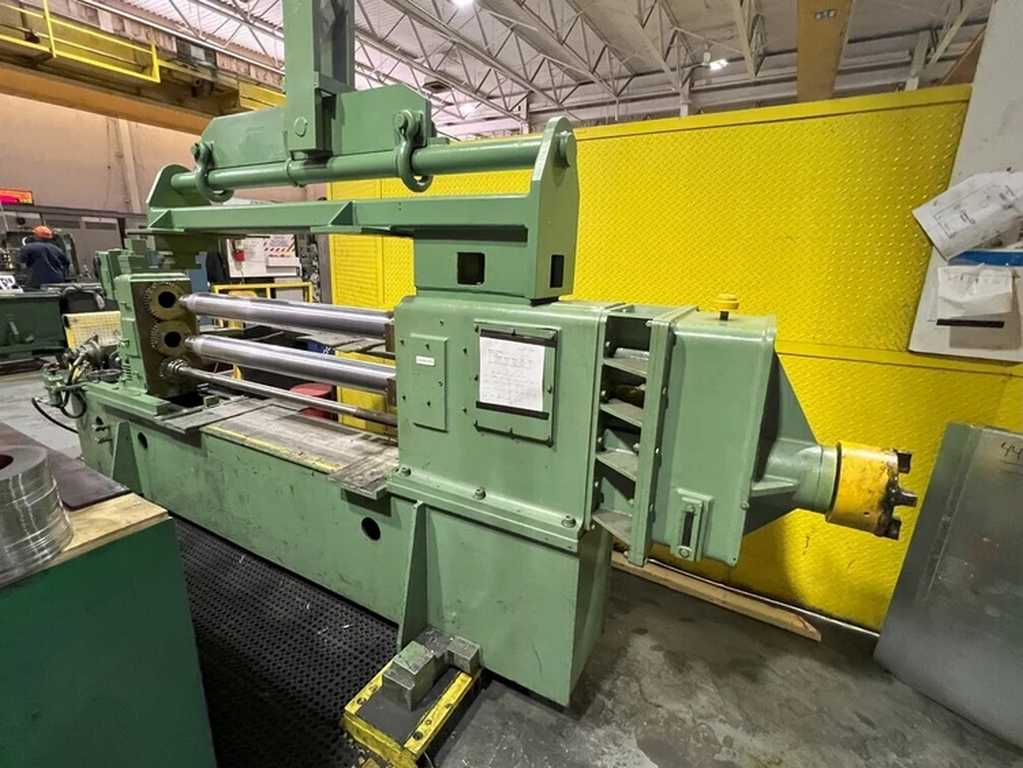

4. (2) Slitter Heads – Paxson
Injection Head Design
7.00″ Dia. x 62″ Face Arbors
Entry Side Guides
100 HP DC Motor, 850/1750 RPM, 500 V
In-Line Reducer with 5.952:1 Ratio

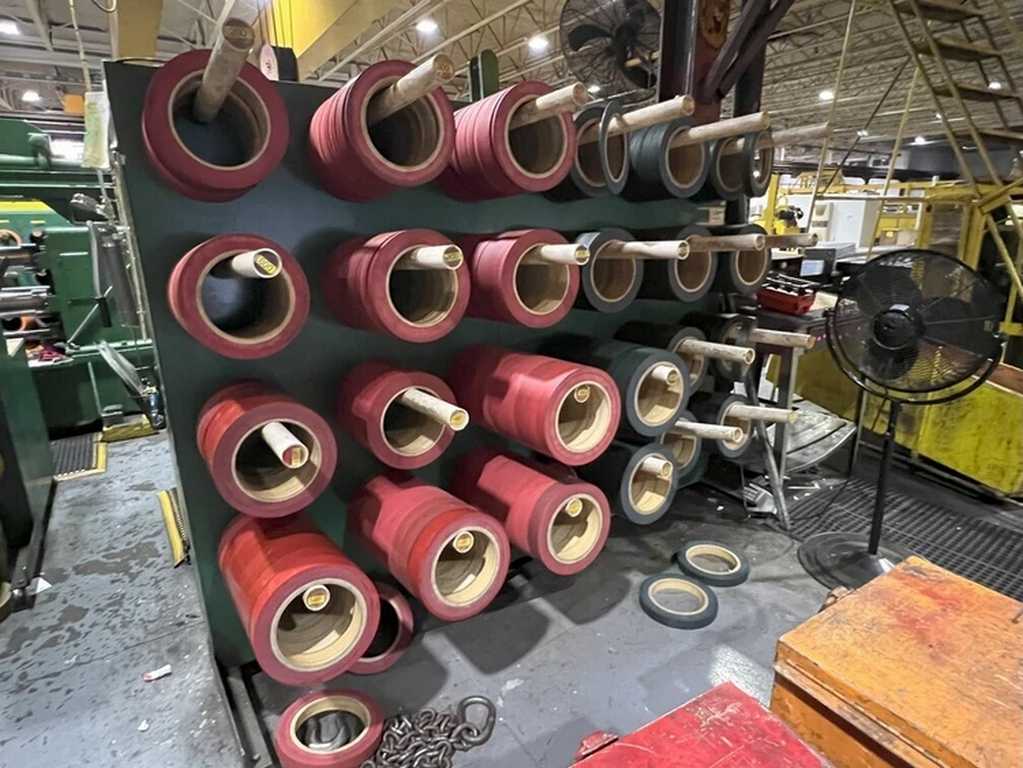

Slitter Tooling Included

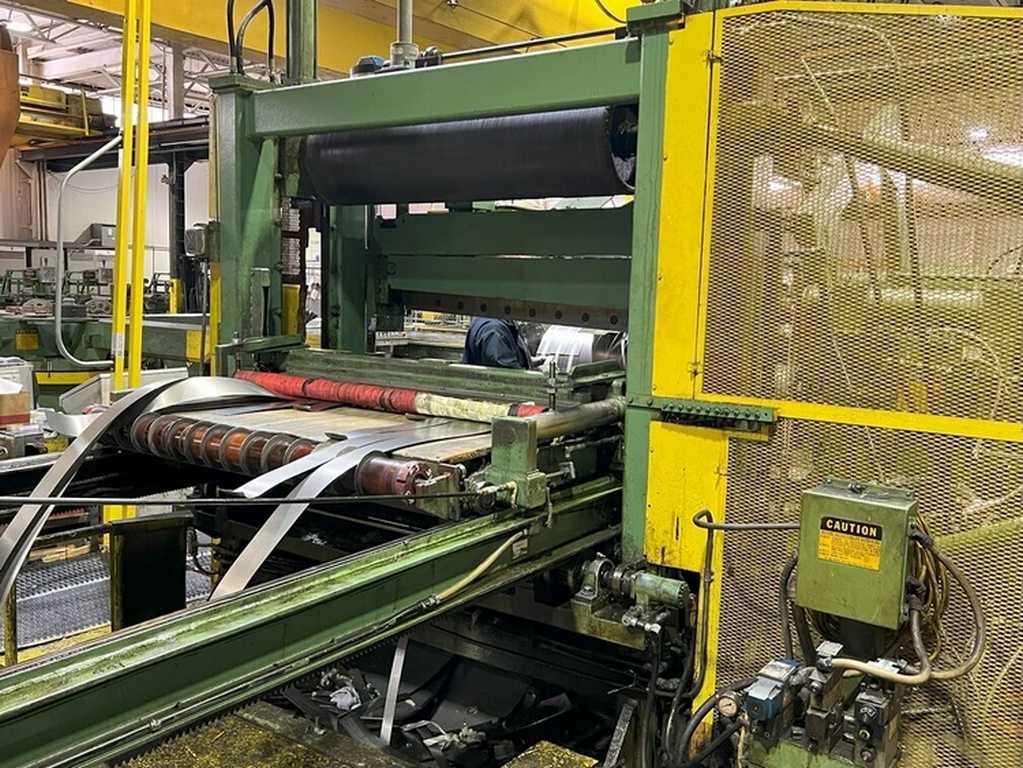

5. Tension Stand – Mico
60″ Wide
Combination Pad and Roll Type
Roll Stand: Quick Change Style

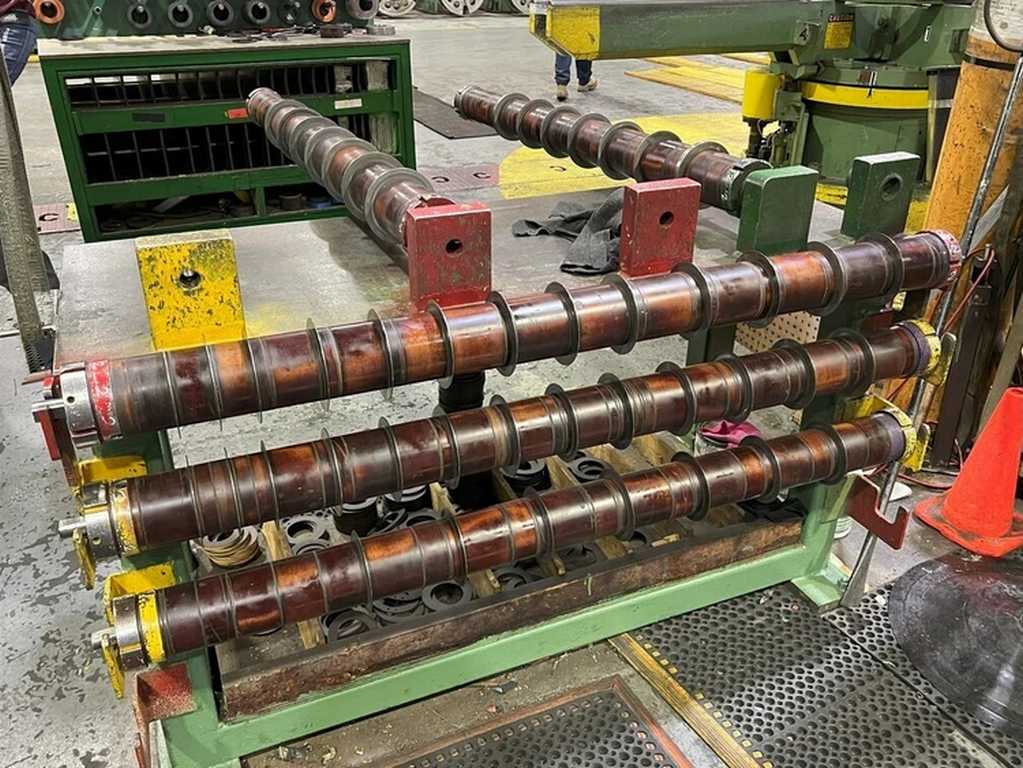

Entry Separator Tooling Shaft: Cartridge Type
Drag Type Tension Unit with Air Bladder
Alligator Type, Air Cylinder Open/Close
(2) Urethane Coated Rolls: 16″ Dia. x 66″ Face
Hydraulic Motor Threading Drive
(2) Eaton 214WCB Water Cooled Brakes
6. Exit Hydraulic Crop Shear
66″ Face
4-Sided Blades
65″ Pass Line
Overall Size: 150″ L x 77″ W x 128″ H
Weight: 23,000 lbs
7. (2) Scrap Winders
Approx. 13″ Wide x 32″ Dia. Scrap Ball Capacity
Hydraulic Motor Driven
Powered Scrap Dump
Oscillating Wind

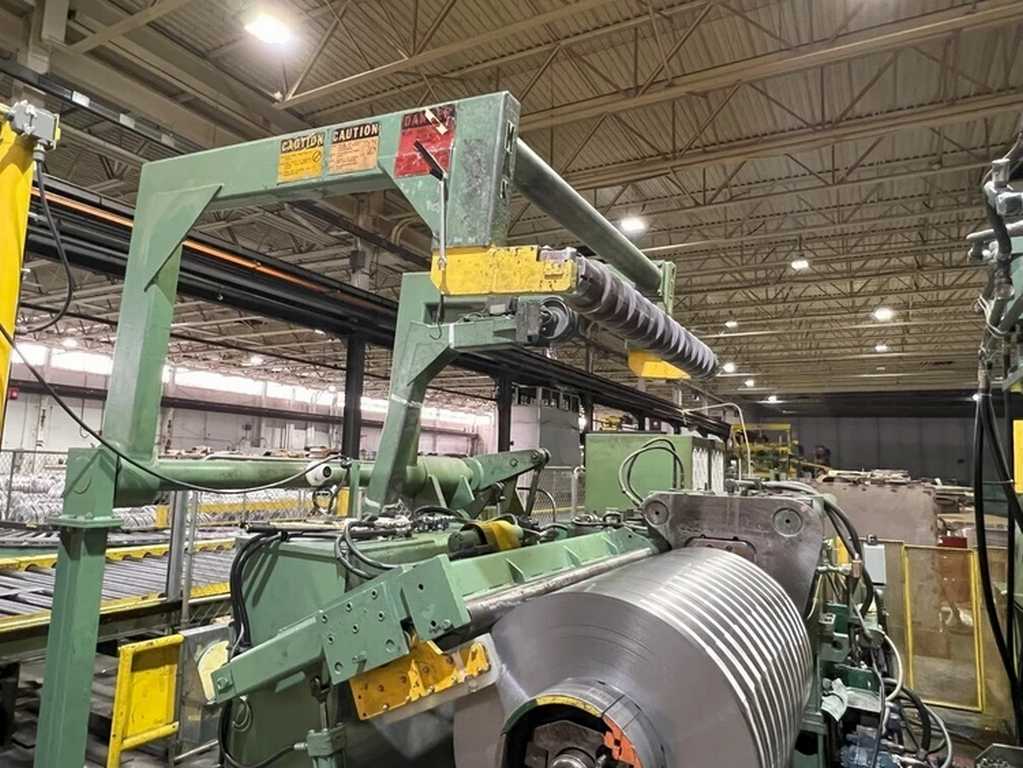

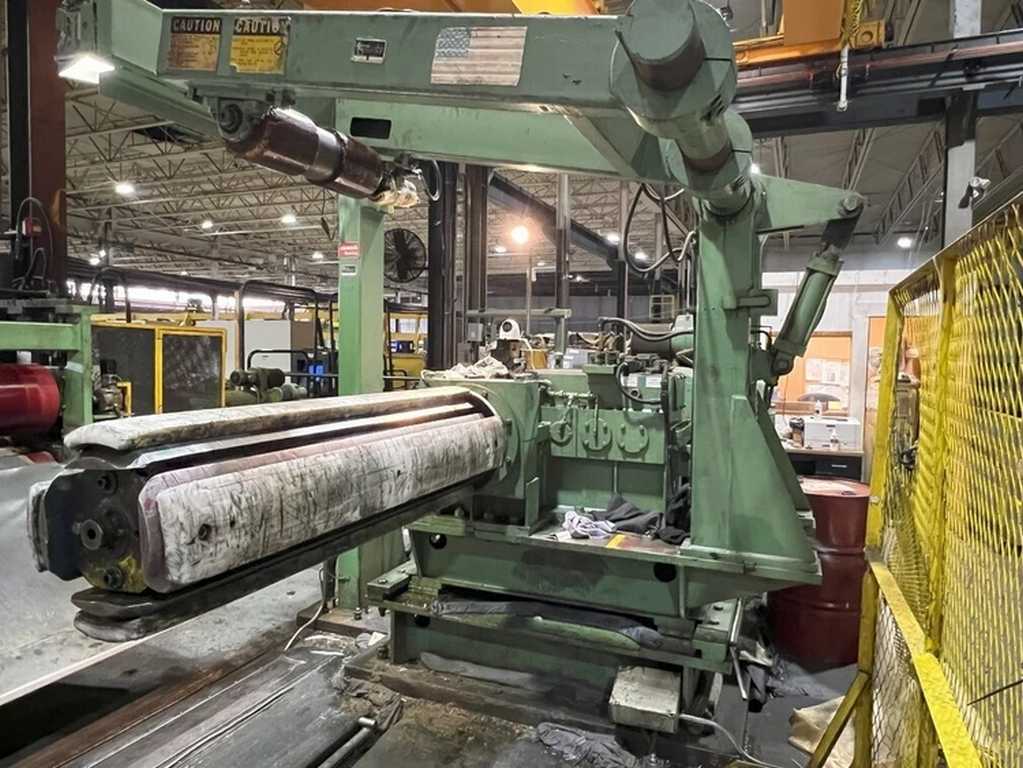

8. Recoiler – Paxson
Capacity: 45,000 lbs x 60″ (with Outboard Support)
S/N: 11349-7-8
20″ Dia. x 66″ Face Drum with 24″ Pads
Powered Clamp and Expansion
Overarm Separator
Hydraulic Push-Off
150 HP Main Motor, 850/2000 RPM
Main Gearbox with 3.5:1 Ratio (approx.)
Secondary Reducer with 10.8:1 Ratio
Passline: 48″ from Floor to Center of Drum
