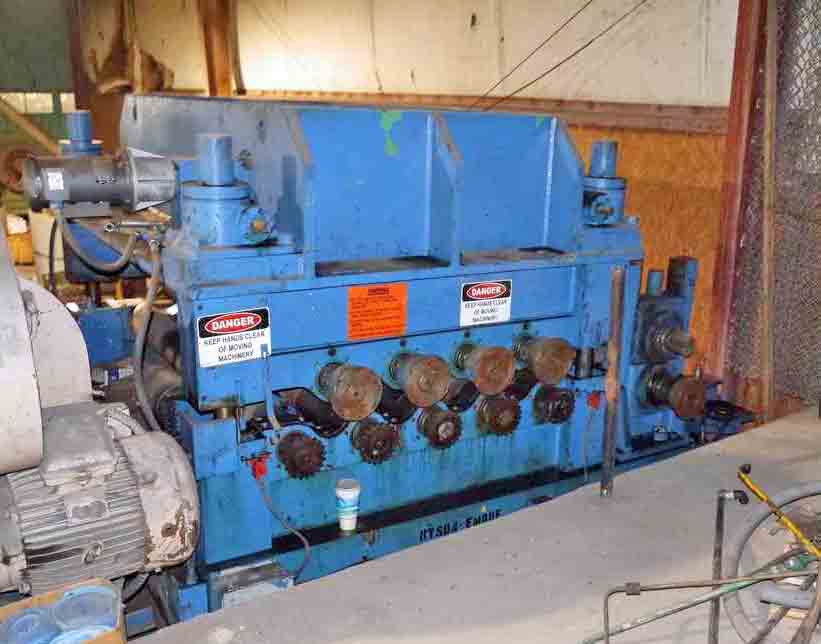

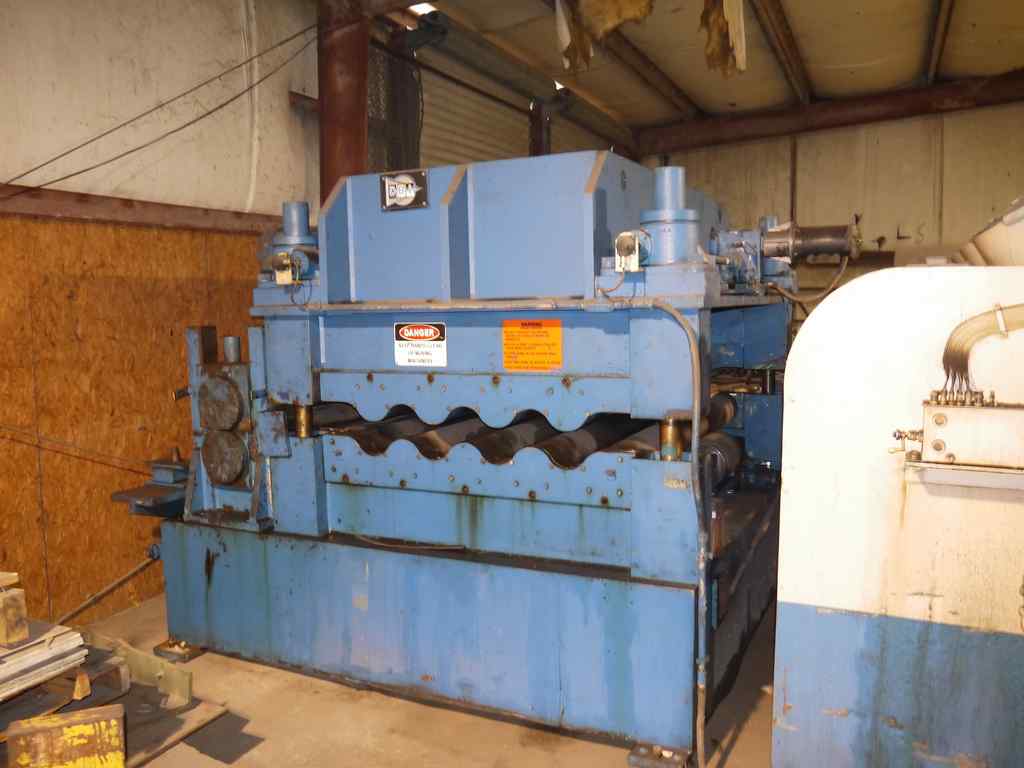

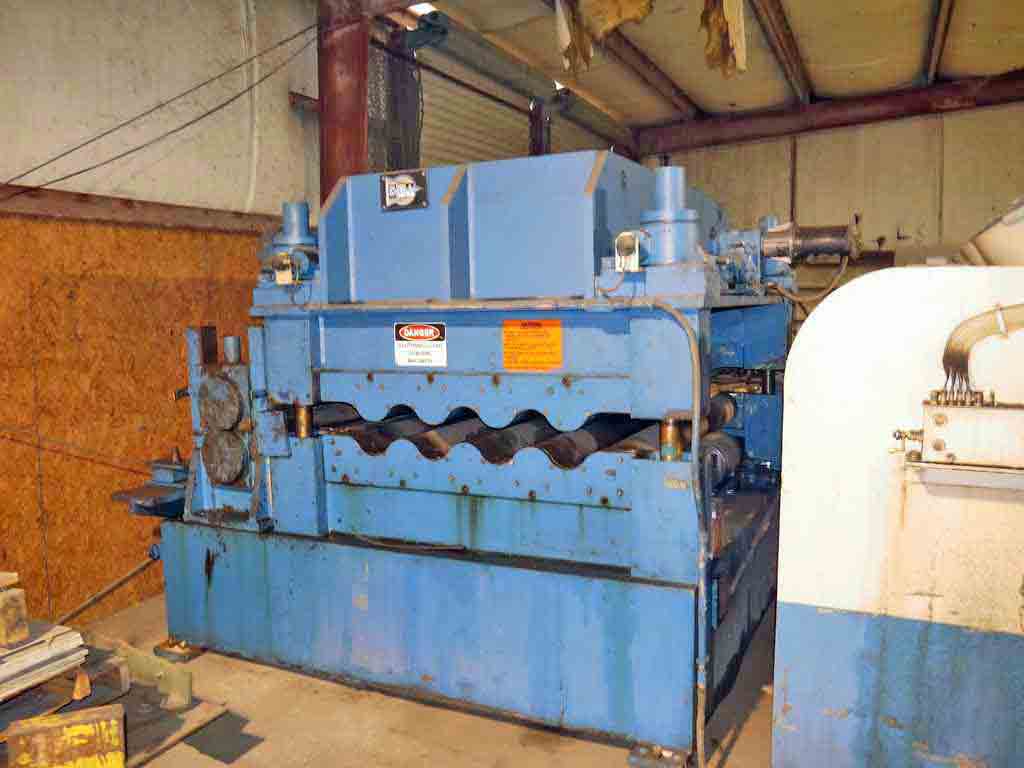

74″ x 0.625″ Delta Straightener

-Capacity: 74″ x 0.625″ Thick
-9 Roll Straightener

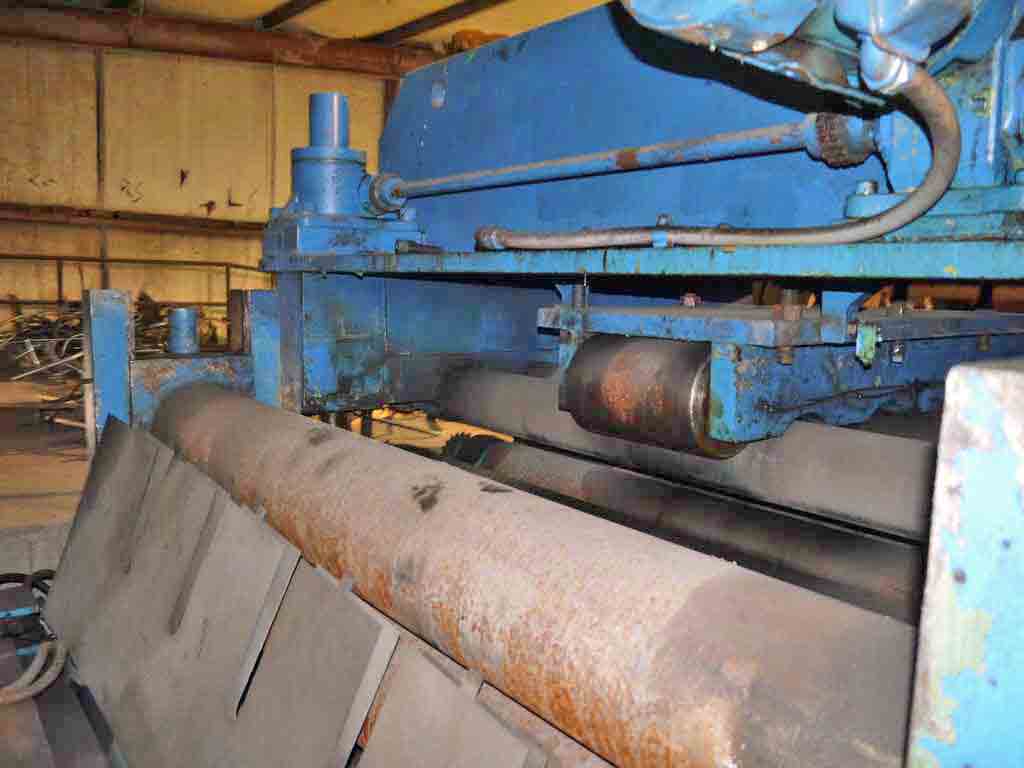

-7″ Dia. x 78″ Face Rolls
-Entry Pinch Rolls
-Center Flight of Backups

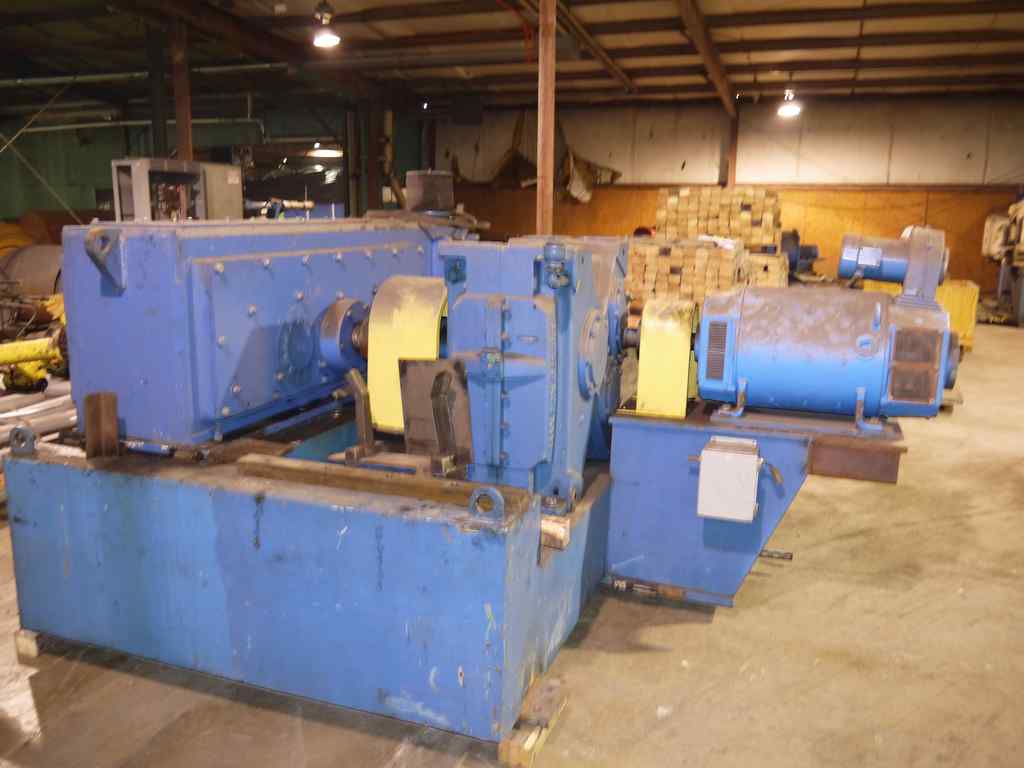

-200 HP DC Motor, 1750 to 1900 RPM
Less Solid State Control

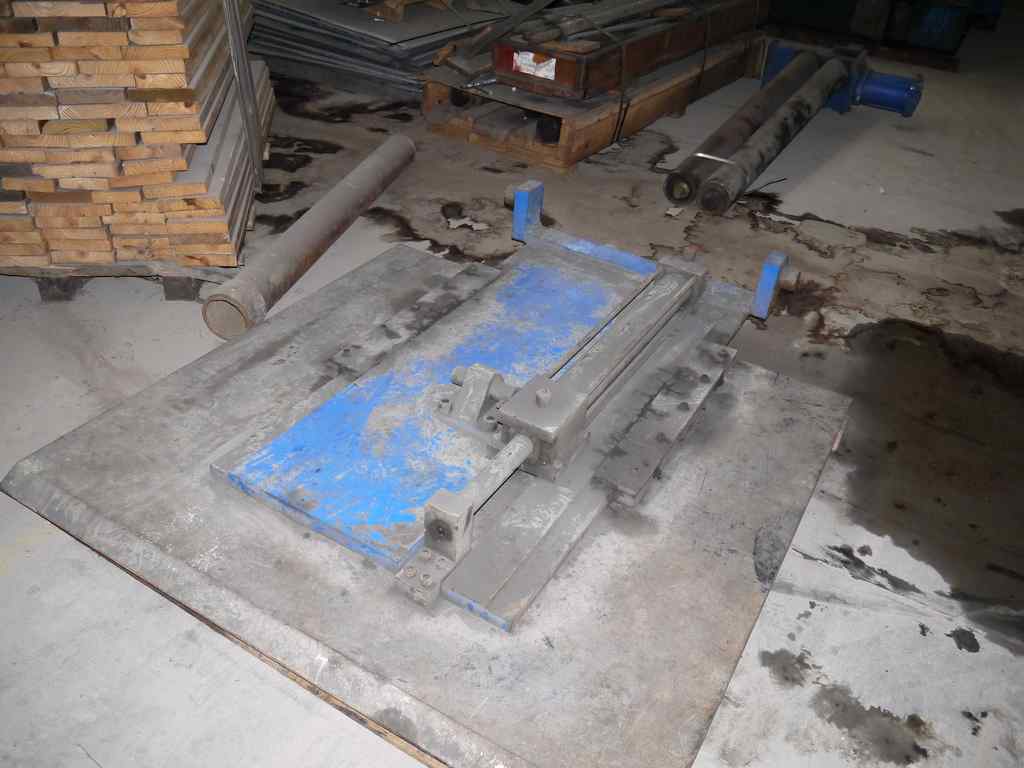

-Entry Peeler Table
-Passline: Approx. 42″
-Overall Size: Straightener – 115″ W x 104″ L

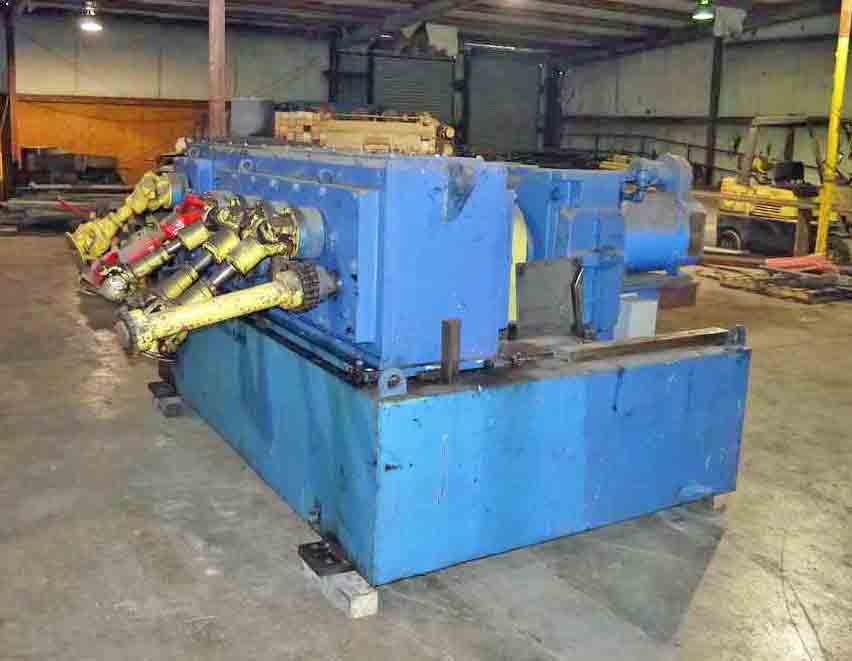

Gearbox – 115″ W x 124″ L
-Left to Right Line Direction
-Note: (1) Drive Shaft Missing
