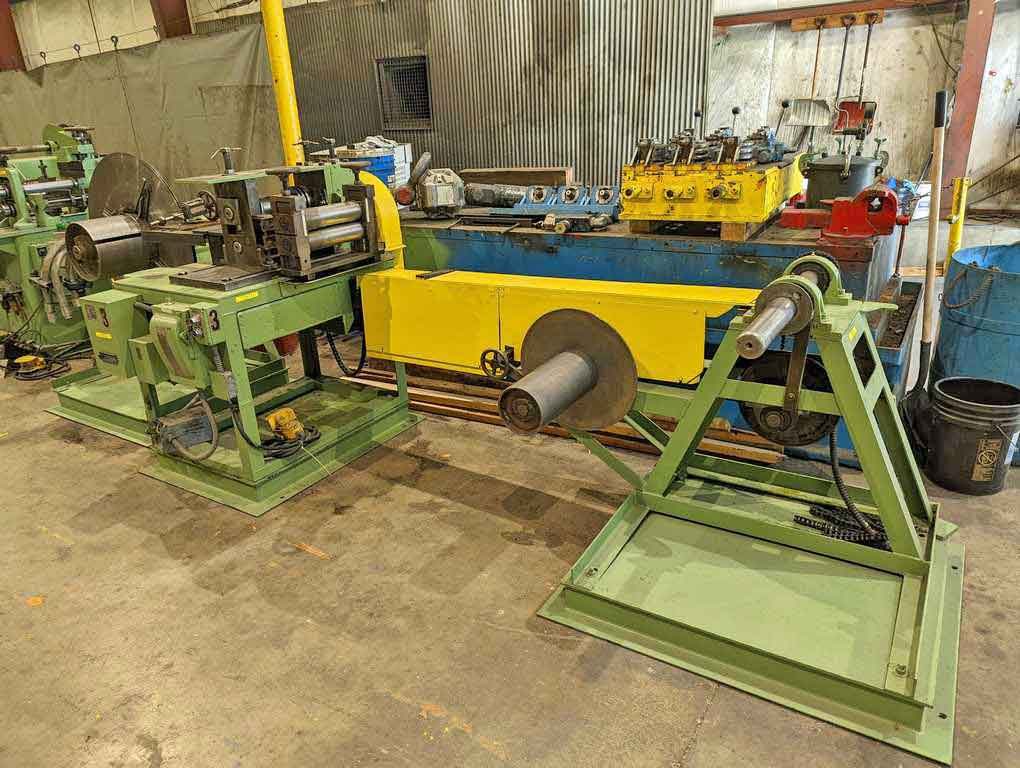

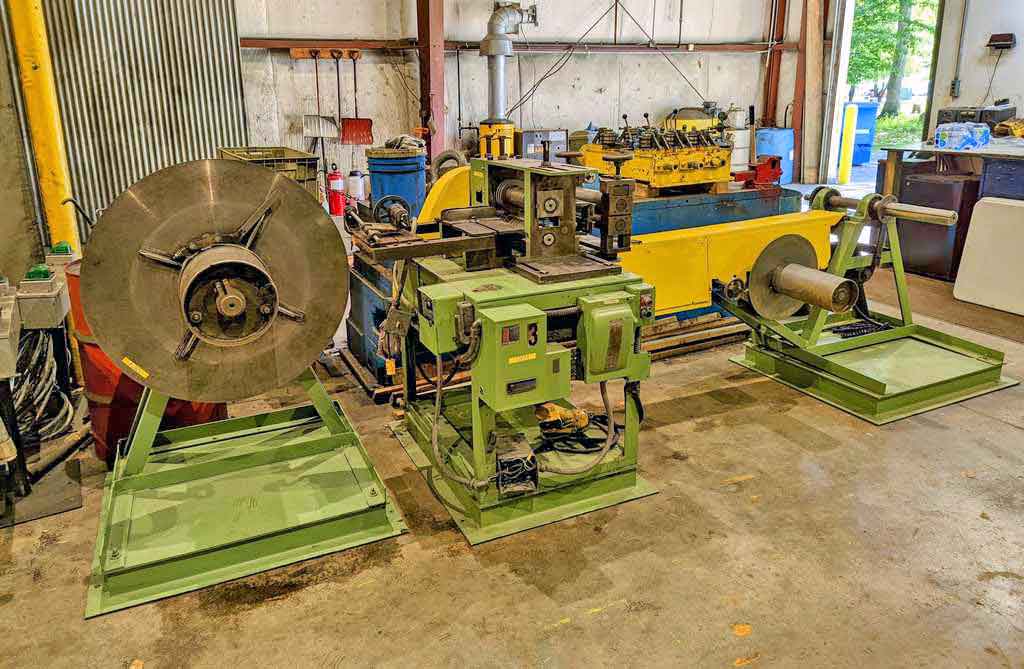

National Standard Slitting Line
Pull Thru Slitting Line with Dual Takeups
-Capacity:
Material Width: 9″
Thickness Range: 0.020″ (0.508mm) – 0.062″ (1.57mm)
Number of Cuts: 9 Cuts 0.020″ (0.508mm) approx.
6 Cuts 0.062″ (1.57mm) approx.
Line Direction: Left to Right
Consisting of:
-Uncoiler:
Type: Non-Driven Expanding Mandrel
Mandrel Face Width: 12″ (305mm)
Expansion Range: 11.5″ (292mm) – 12″ (305mm) Dia.
Type Expansion: Manual
Passline Height: 31″ (787.4mm)
Brake for Back Tension: Manual Band Brake
Maximum Coil O.D.: 36″ (915mm)
Overall Size: 41″ L x 39″ W x 54″ High

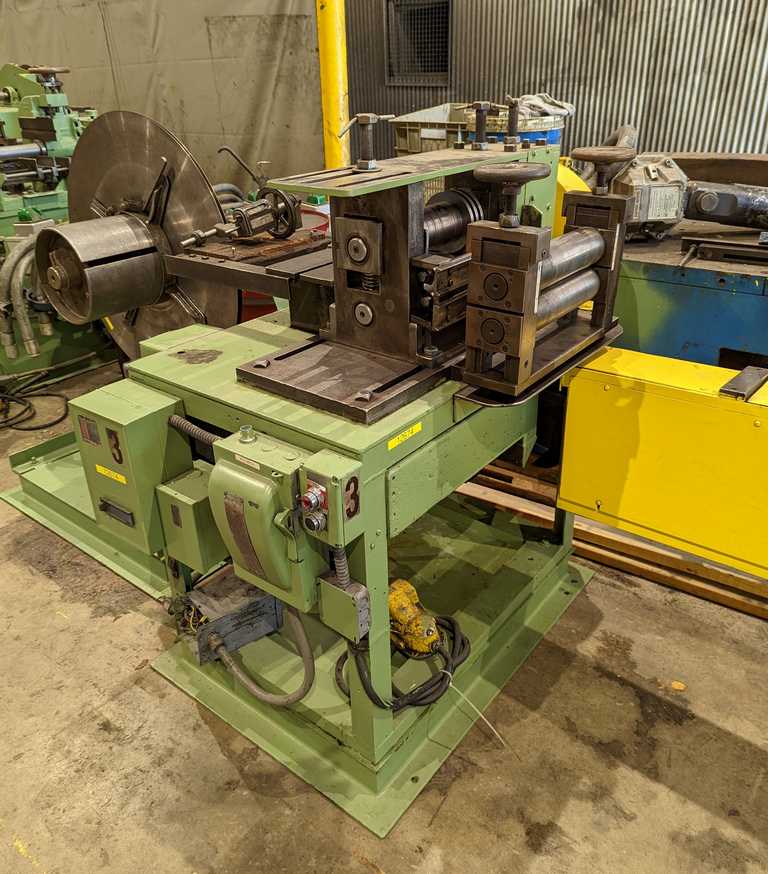

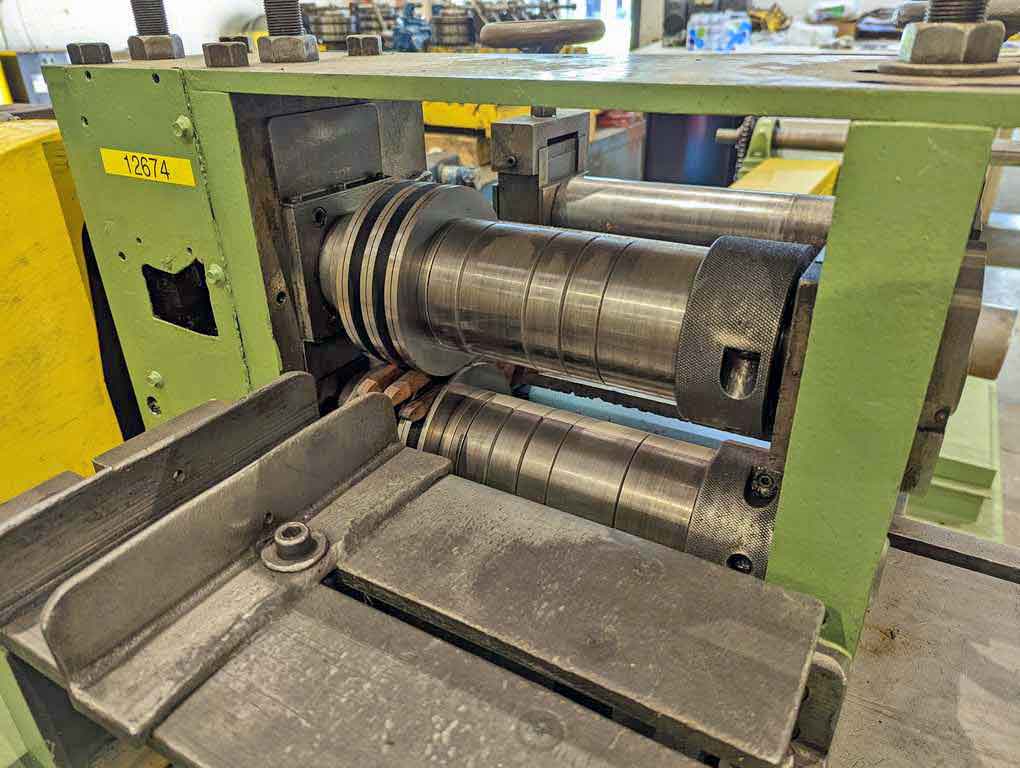

-Slitter Head:
Arbor Size: 2.50″ (63.5mm) Dia. x 10″ (254mm) Face
Entry Side Guides: Manual
Vertical Arbor Adjustment: Manual
Knife Separation: Wooden Fingers
Exit Pinch Rolls: 3.250″ (95mm) Dia. x 13″ (330mm) Face
Strip Counter: Durant Model 5-H-1-R-CL, S/N: 262
Knife O.D.: 5.50″ (140mm)
Spacer O.D.: 3.750″ (95mm)
Passline Height: 42.5″ (1080mm)
Overall Size: 49″ L x 43″ W x 55″ High

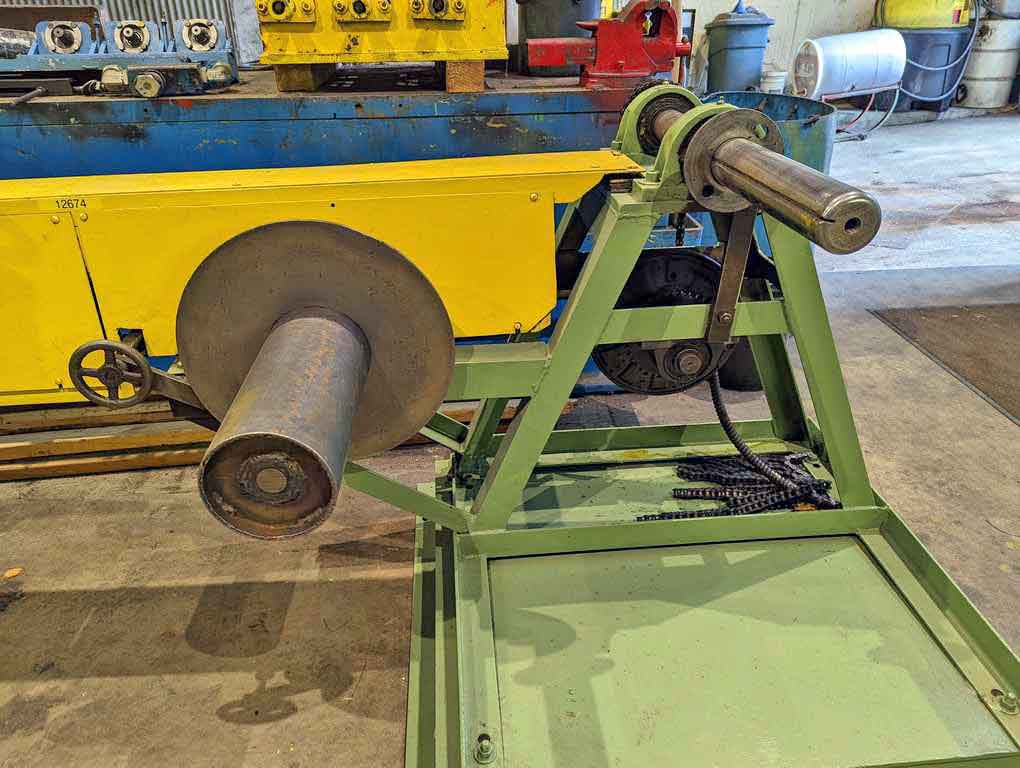

-Recoilers:
Winder No. 1:
6.50″ (165mm) Drum Dia. x 14″ (355mm) Face Width
16″ (406mm) Max. O.D.
with Warner Electric Brake
Winder No. 2:
2.750″ (70mm) Shaft Dia. x 14″ (355mm) Face
with Warner Electric Brake

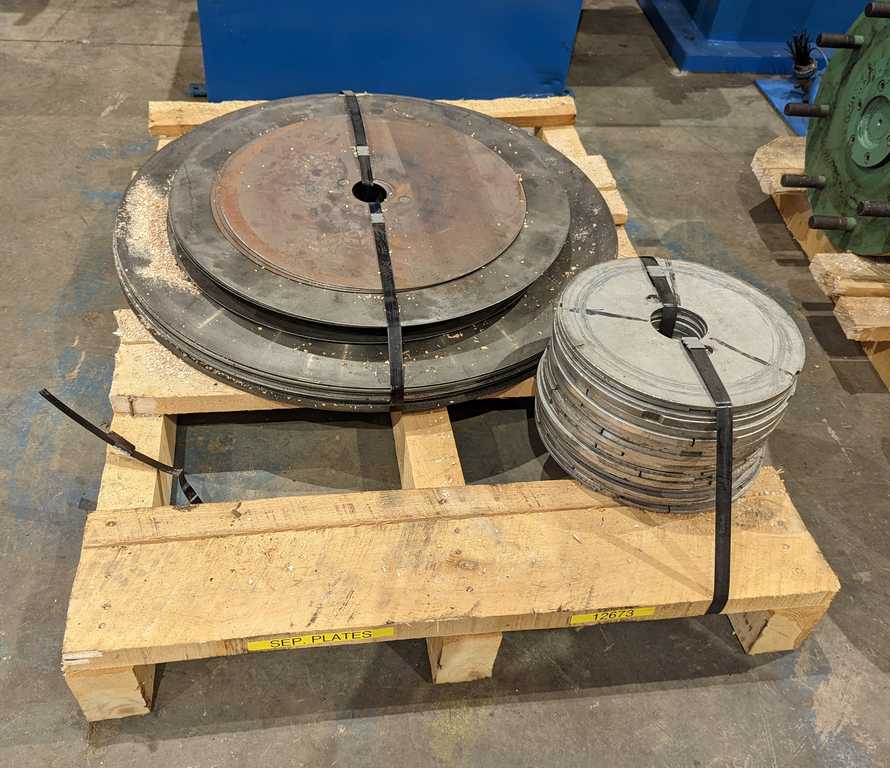

Winders Use Separator Discs
Overall Size: 94″ L x 40″ W x 41″ High

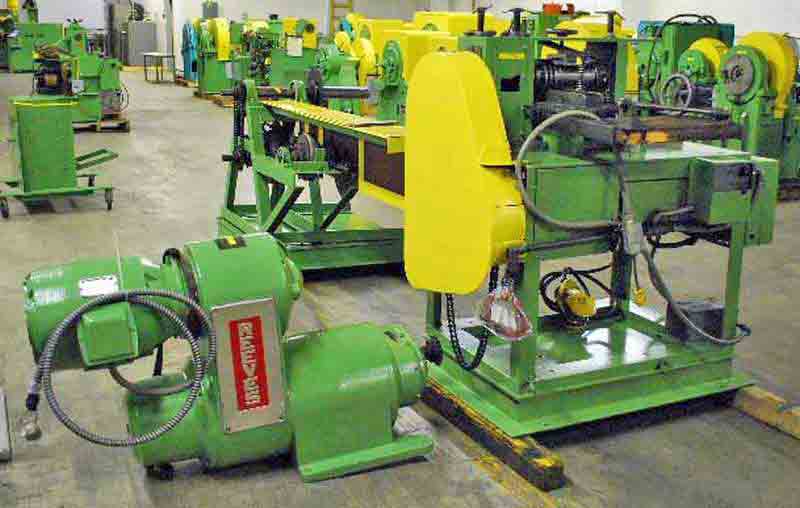

-Drive Motor:
Powers both Winders and the Slitter Head
15 HP AC, 1760 RPM, 230/460 Volts, 44/22 amps
Reeves Variable Speed Drive Model No.: Motodrum
Size: 8441, Ratio: 2.8 to 1
Output RPM: 182 – 1430 RPM
Overall Size: 53″ L x 20″ W x 31″ High
-Overall Length of Slitting Line: 11.3 Ft. (3.44M) Plus Payoff
-Includes Large Quantity of Tooling
